GENERAL
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
G-27

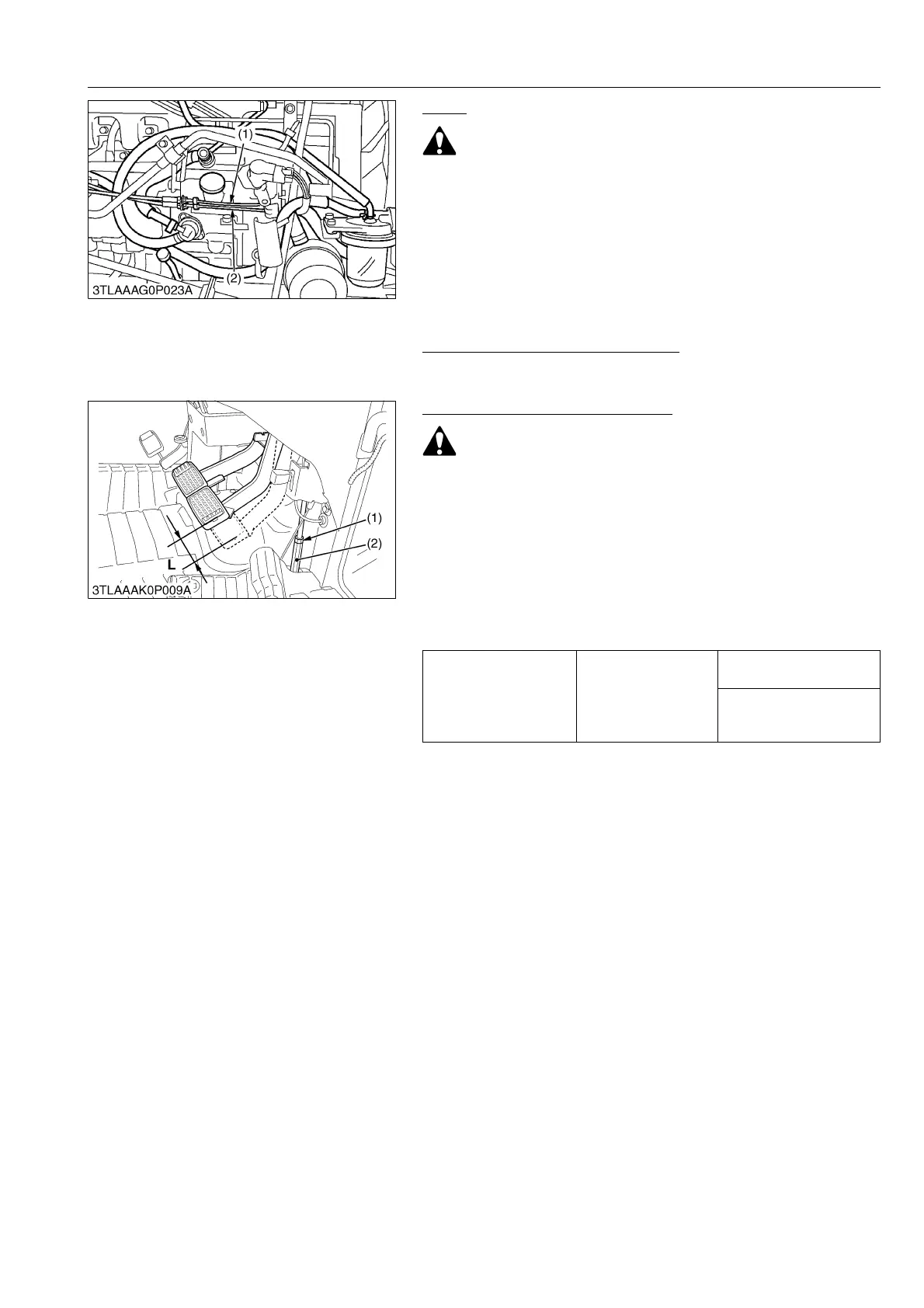

Oiling
• Be sure to stop the engine and remove the key before
oiling.
1. Apply a small amount of engine oil to the hand throttle cable (1)
and foot throttle cable (2).
9Y1211167GEG0030US0
[4] CHECK POINTS OF EVERY 100 HOURS
Adjusting Clutch Pedal Free Travel
1. See page G-22.
9Y1211167GEG0031US0
Checking Brake Pedal Free Travel
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel (L) at
top of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nut (1) and turn the turnbuckle (2) to adjust the
rod length within acceptable limits.
4. Retighten the lock nut (1) securely.
Keep the free travel in the right and left brake pedals equal.
9Y1211167GEG0032US0
(1) Hand Throttle Cable (2) Foot Throttle Cable
Brake pedal free travel
"L"
Factory specification
15 to 20 mm
0.59 to 0.79 in.
Keep the free travel in the
right and left brake pedals
equal.
(1) Lock Nut
(2) Turnbuckle
L : Free Travel
