CABIN
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
10-M1
1. AIR CONDITIONER SYSTEM

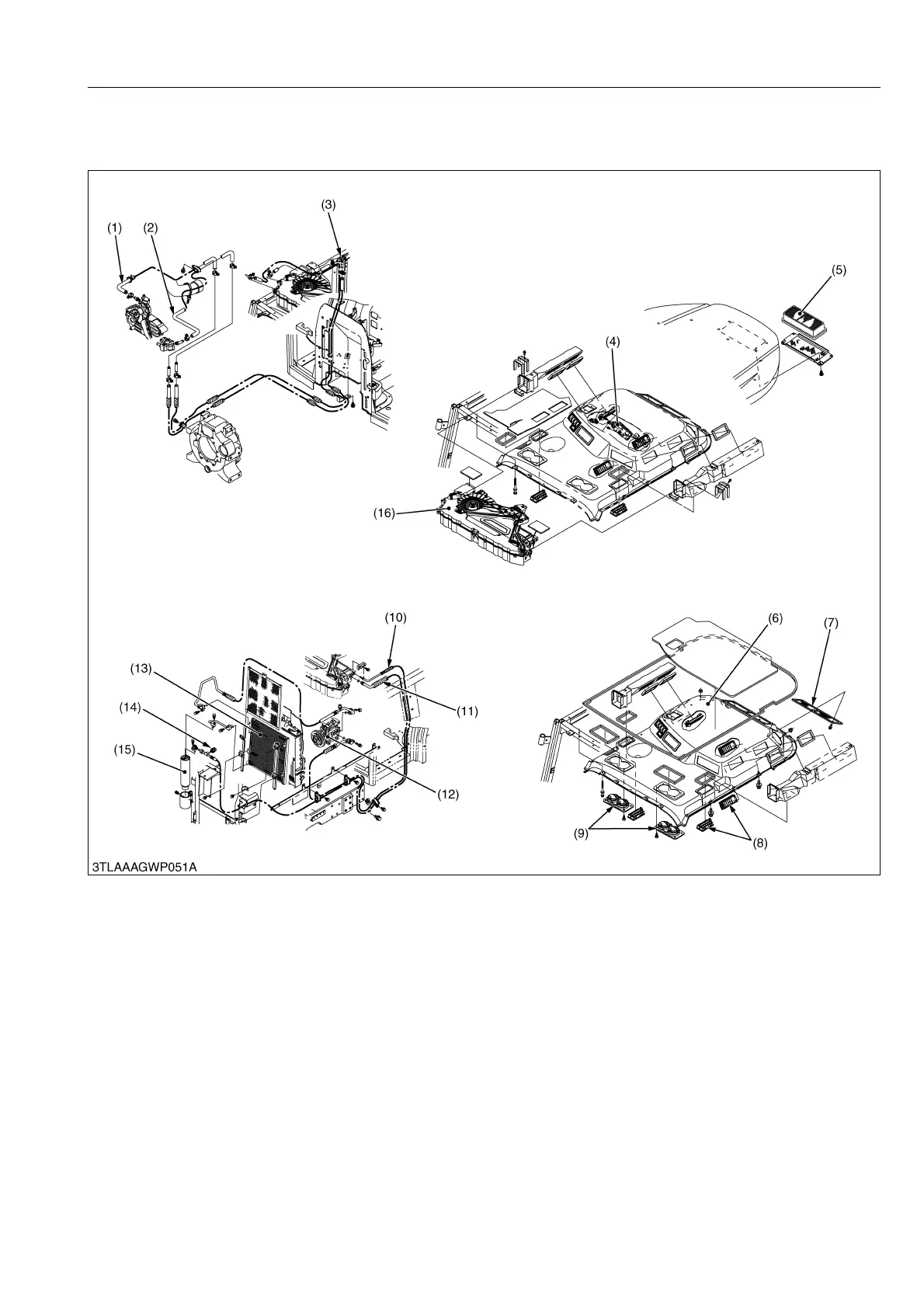

[1] OUTLINE OF AIR CONDITIONING SYSTEM
9Y1211167CAM0001US0
(1) Heater Hose (Out Side)
(2) Heater Hose (In Side)
(3) Water Valve
(4) Control Panel
(5) Outside Air Filter
(6) Inner Roof
(7) Inside Air Filter
(8) Side Air Outlet
(9) Front Air Outlet
(10) High Pressure Pipe
(11) Low Pressure Pipe
(12) Compressor
(13) Condenser
(14) Pressure Switch
(15) Receiver
(16) Air Conditioner Unit
To Next Page
