ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S64

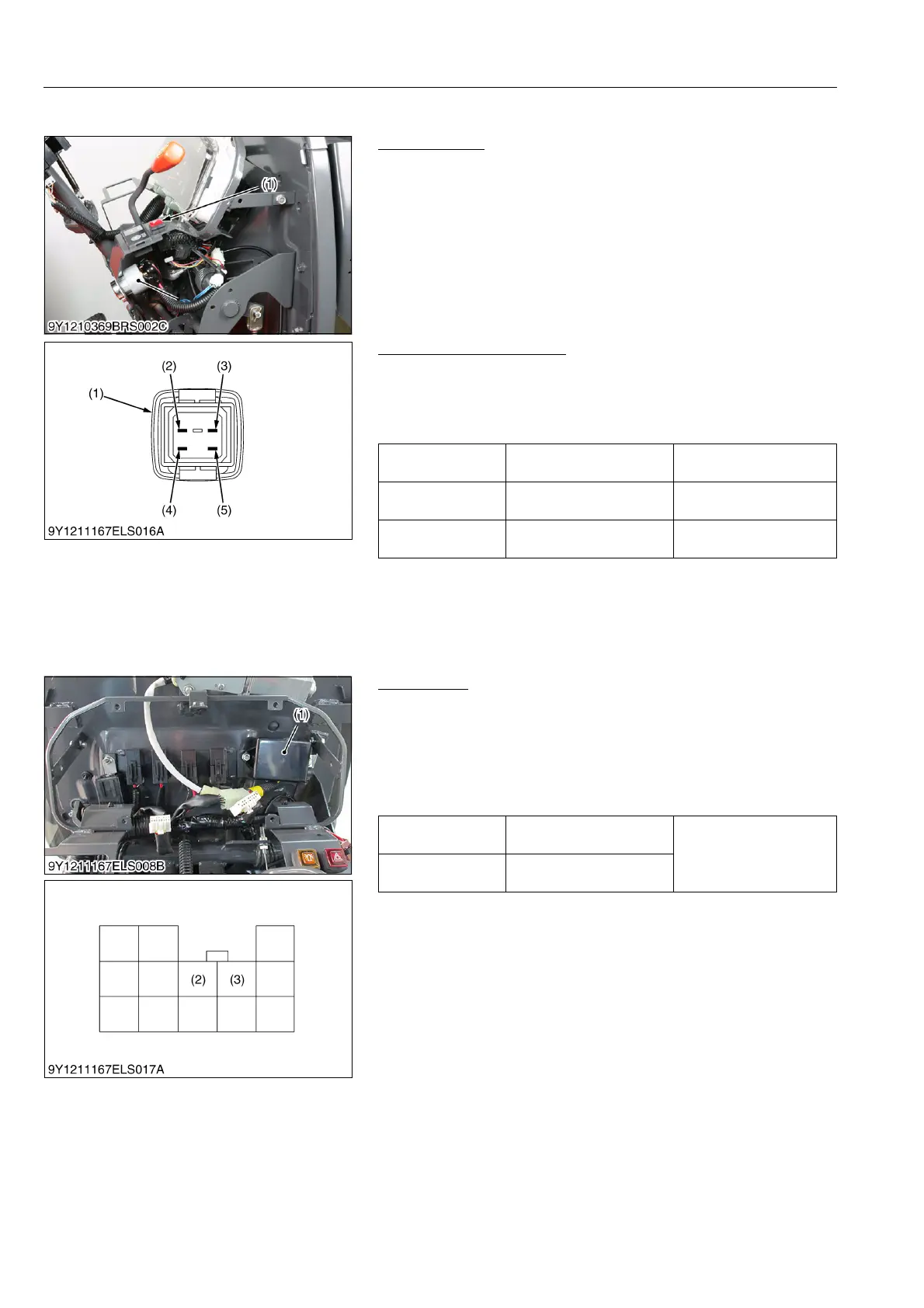

(2) Hazard Switch
Hazard Switch
1. Remove the meter panel and disconnect the 4P connector from
hazard switch (1) after disconnect the battery negative code.
2. Remove the hazard switch (1).
3. Perform the following checking.
9Y1211167ELS0081US0
Hazard Switch Continuity
1. Measure the resistance with ohmmeter across the terminal a
and terminal c, and across the terminal d and terminal e.
2. If the measurement is not following below, the hazard switch or
the bulb are faulty.
9Y1211167ELS0082US0
(3) Flasher Unit
Flasher Unit
1. Disconnect the connector from the flasher unit.
2. Turn the main switch to "ON" position.
3. Measure the voltage across the terminal A (2) and chassis.
4. Measure the voltage across the terminal B (3) and chassis.
5. If the voltage differ from the battery voltage, the wiring harness
is faulty.
9Y1211167ELS0083US0
(1) Hazard Switch
Resistance
(Switch at OFF)
Terminal a – Terminal c Infinity
Resistance
(Switch at ON)
Terminal a – Terminal c 0 Ω
Resistance
(Bulb)
Terminal d – Terminal e Approx. 13 Ω
(1) Hazard Switch Connector
(2) Terminal a
(3) Terminal d
(4) Terminal c
(5) Terminal e
Voltage
(Key switch at OFF)
Terminal A – Chassis
Approx. battery voltage
Voltage
(Key switch at ON)
Terminal B – Chassis
(1) Flasher Unit
(2) Terminal A
(3) Terminal B
