TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-S68
[2] GLIDE SHIFT TRANSMISSION MODEL
(1) Clutch Housing
Hydraulic Pipes

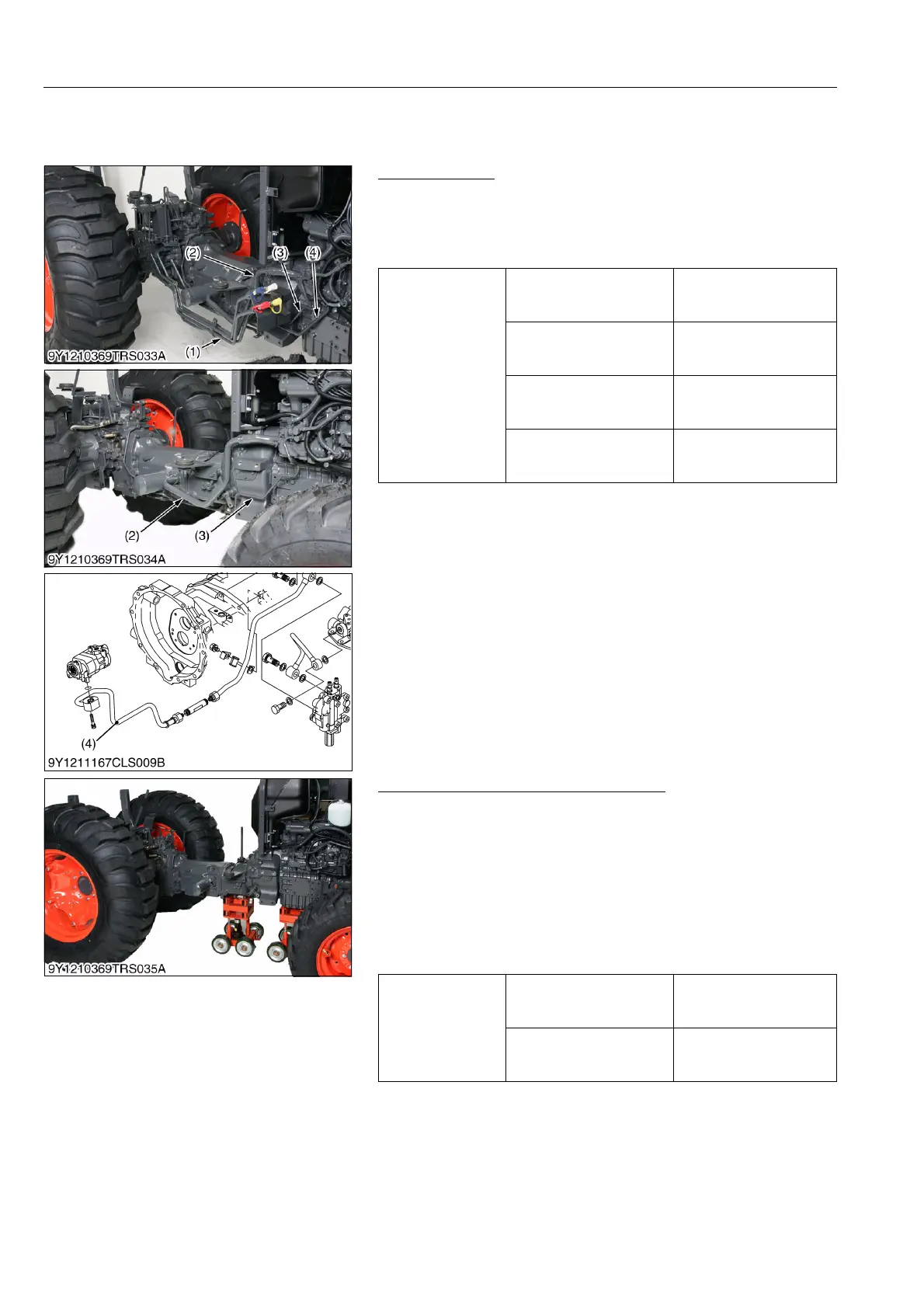

1. Remove the main delivery pipe (4).
2. Remove the front loader pipes (1).
3. Remove the suction pipe (2) and PTO delivery pipe (3).
(When reassembling)
9Y1211167TRS0077US0
Separating Engine and Clutch Housing
1. Place the disassembling stand under the engine and clutch
housing.
2. Remove the engine and clutch housing mounting screws and
nuts.
3. Separate the engine and clutch housing.
(When reassembling)
• Apply grease to the spline of clutch shaft.
• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face
of the flywheel housing and clutch housing.
9Y1211167TRS0078US0
Tightening torque
Joint bolt for delivery pipe
118 to 137 N·m
12.0 to 14.0 kgf·m
86.8 to 101 lbf·ft
Front loader pipe retaining
nut
49.0 to 58.8 N·m
5.00 to 5.99 kgf·m
36.2 to 43.3 lbf·ft
Joint bolt for PTO delivery
pipe
35 to 39 N·m
3.5 to 4.0 kgf·m
26 to 28 lbf·ft
Delivery pipe joint nut
89 to 107 N·m
9.0 to 11.0 kgf·m
65 to 79 lbf·ft
(1) Front Loader Pipe
(2) Suction Pipe
(3) PTO Delivery Pipe
(4) Main Delivery Pipe
Tightening torque
Engine and clutch housing
mounting screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Engine and clutch housing
mounting nut
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
