ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S19
(2) Electronic Instrument Panel

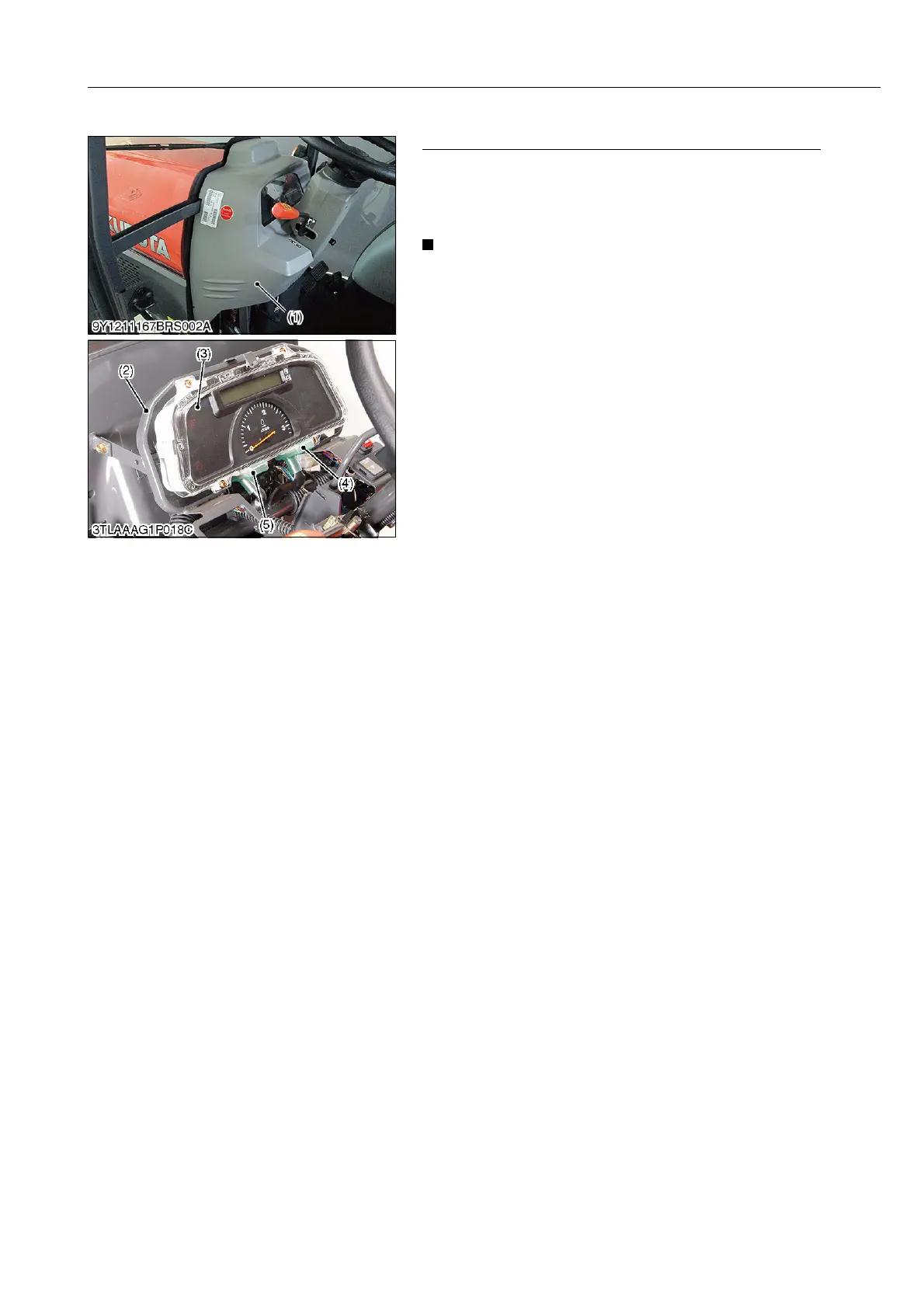

Disconnecting Electronic Instrument Panel Connector
1. Remove the panel cover (1).
2. Disconnect the panel connectors (4), (5).
3. Remove the electronic instrument panel (3) from panel frame
(2).
NOTE
• When replacing the electronic instrument panel, be sure to
adjust the mode "I" first.
Then adjust to mode "B", "C" and mode "J"
9Y1211167ELS0013US0
(1) Panel Cover
(2) Panel Frame
(3) Electronic Instrument Panel
(Intellipanel)
(4) Connector A (20P)
(5) Connector B (16P)
