STEERING
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
7-S9
6. SERVICING
[1] STEERING CYLINDER
Steering Cylinder I.D.

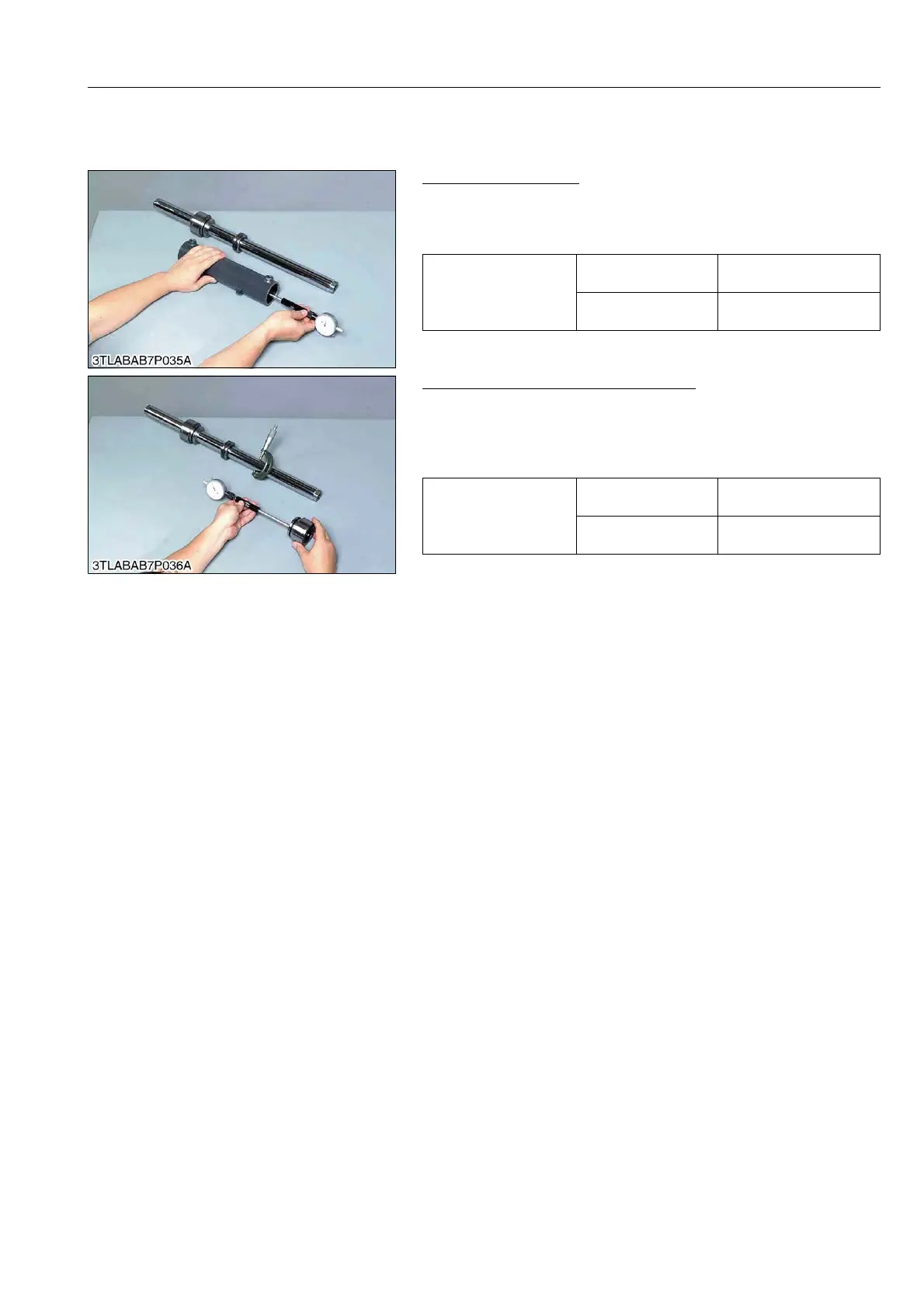

1. Measure the steering cylinder I.D. with a cylinder gauge.
2. If the cylinder I.D. exceed the allowable limit, replace the
cylinder tube.
9Y1211167STS0014US0
Clearance between Rod and Bushing
1. Measure the bushing I.D. with a cylinder gauge.
2. Measure the rod O.D. with a outside micrometer, and calculate
the clearance.
3. If the clearance exceeds the allowable limit, replace as a unit.
9Y1211167STS0015US0
Steering cylinder I.D.
Factory specification
55.000 to 55.074 mm
2.1654 to 2.1682 in.
Allowable limit
55.100 mm
2.1693 in.
Clearance between rod
and bushing
Factory specification
0.009 to 0.127 mm
0.000355 to 0.00500 in.
Allowable limit
0.135 mm
0.00531 in.
