TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-M39

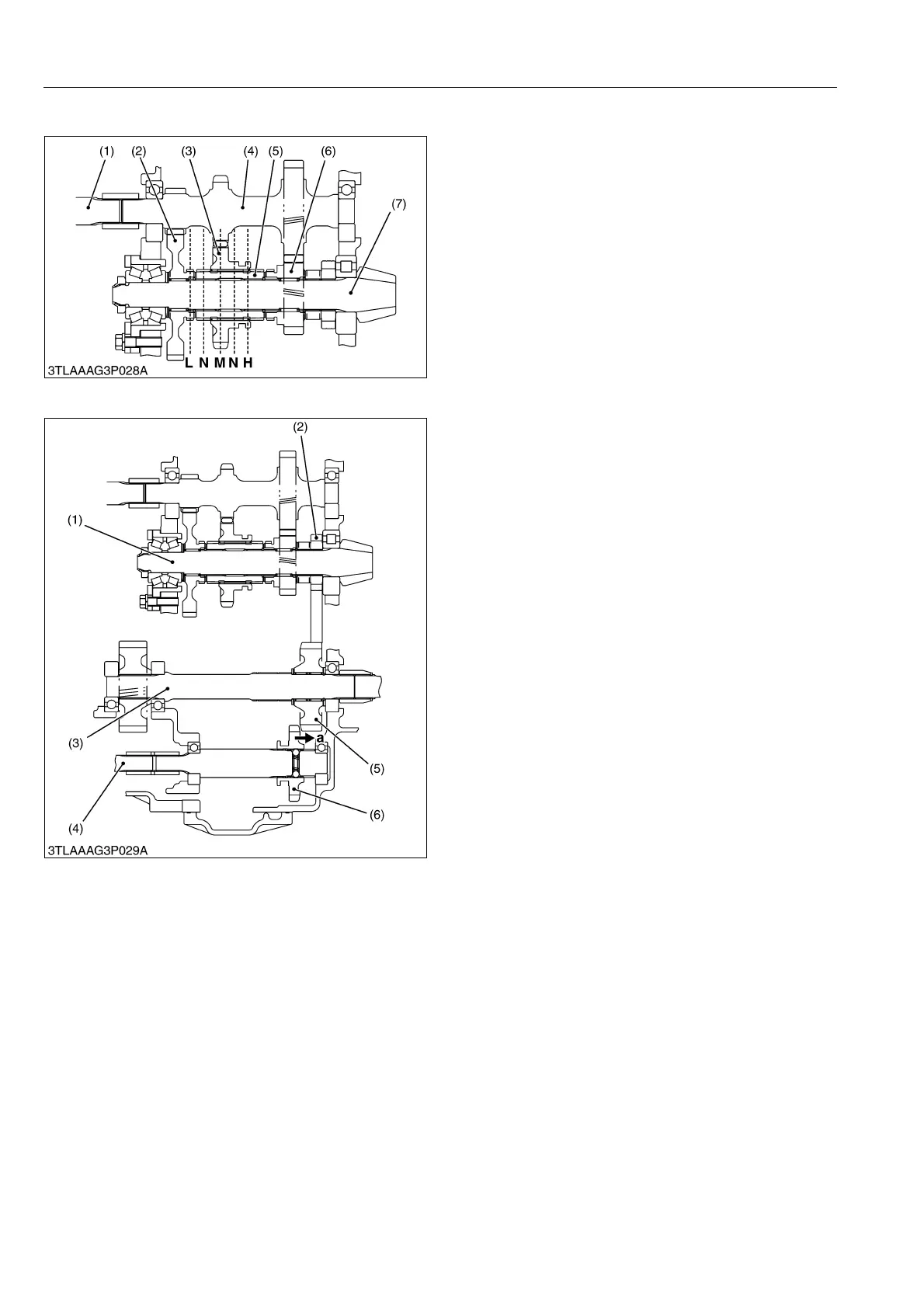

(5) Range Gear Shift Section
The range gar shift section is located in the
differential gear case.
It changes the speed to five positions ("L", "N", "M",
"N" and "H") by shifting of shifter gear (3) in the straight
line on bevel pinion shaft (7).
9Y1211167TRM0047US0
(6) Front Wheel Drive Section
Front wheel drive section is located in the differential
gear case.
2 wheel drive or 4 wheel drive is selected by
operating the front wheel drive lever to shift the shifter
gear (6).
9Y1211167TRM0048US0
(1) Counter Shaft
(2) Gear (for L)
(3) Shifter Gear (for M)
(4) Range Gear Shaft
(5) Spline Boss
(6) Gear (for H)
(7) Spiral Bevel Pinion Shaft
L: Low Speed Position
N: Neutral Position
M: Middle Speed Position
H: High Speed Position
(1) Spiral Bevel Pinion Shaft
(2) Front Wheel Drive Output
Gear
(3) PTO Drive Shaft
(4) Front Wheel Drive Shaft
(5) Front Wheel Drive Gear
(6) Shifter Gear
a: 4 Wheel Drive Position
To Next Page
