ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-M34
(3) Automatic Engine Stop
Engine can be shut off under the following conditions
since these conditions cause ECU or OPC controller to
operate and it controls engine stop solenoid.
9Y1211167ELM0077US0

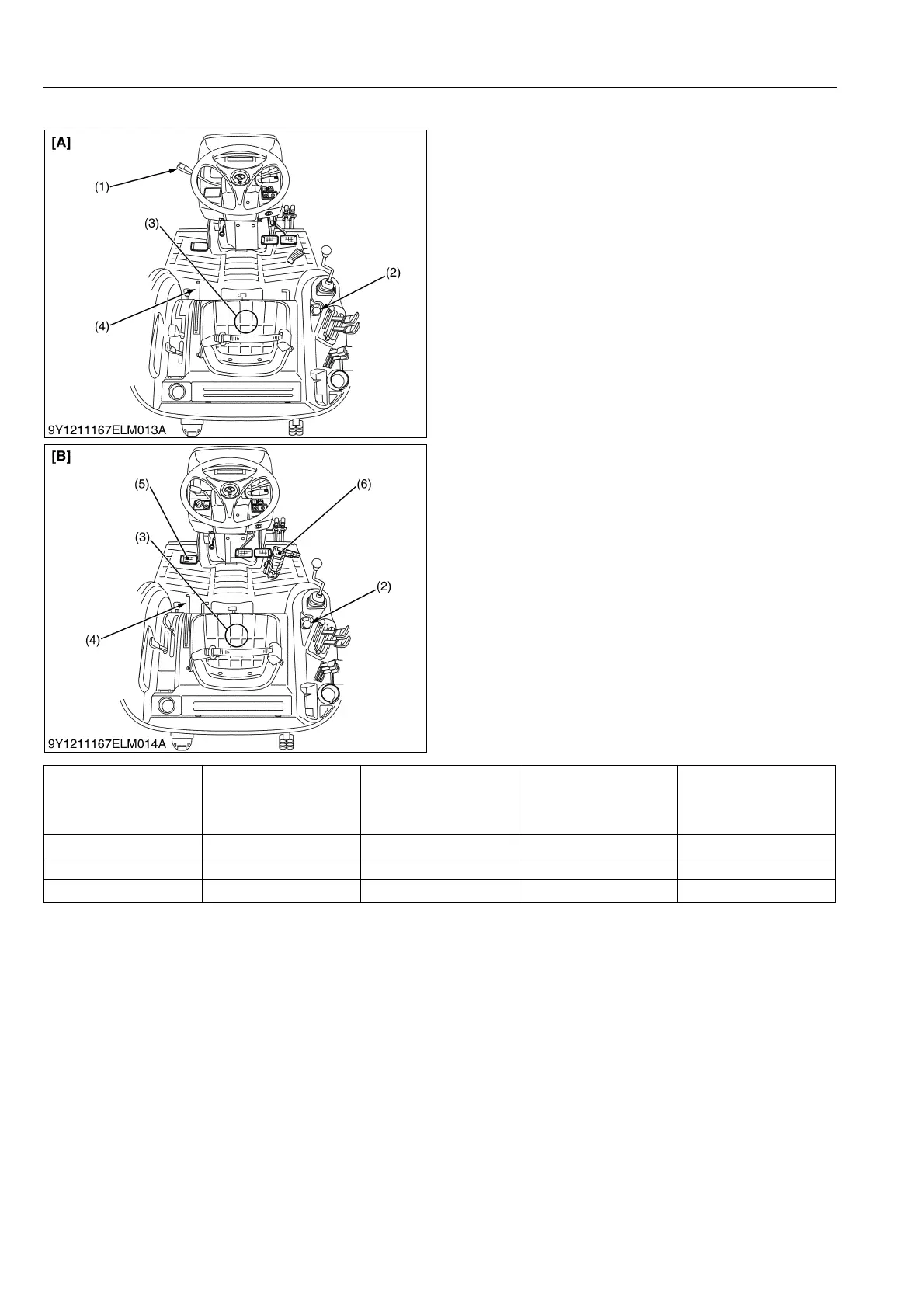

(1) Shuttle Shift Lever
(2) PTO Clutch Switch
(3) Seat Switch
(4) Parking Brake Lever
(5) Clutch Pedal
(6) HST Pedal
[A] Manual Transmission and
GST Model
[B] HST Model
Shuttle Switch or HST
Pedal Sensor
(Neutral: ON)
(Others: OFF)
PTO Switch
(Neutral: ON)
(Engaged: OFF)
Seat Switch
(Occupied: ON)
(Vacant: OFF)
Parking Brake Switch
(Applied: ON)
(Not Applied: OFF)
1OFF–OFF–
2–ONOFFOFF
3OFF– – ON
