ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S68
Charging Circuit (Panel Board and Wiring Harness)

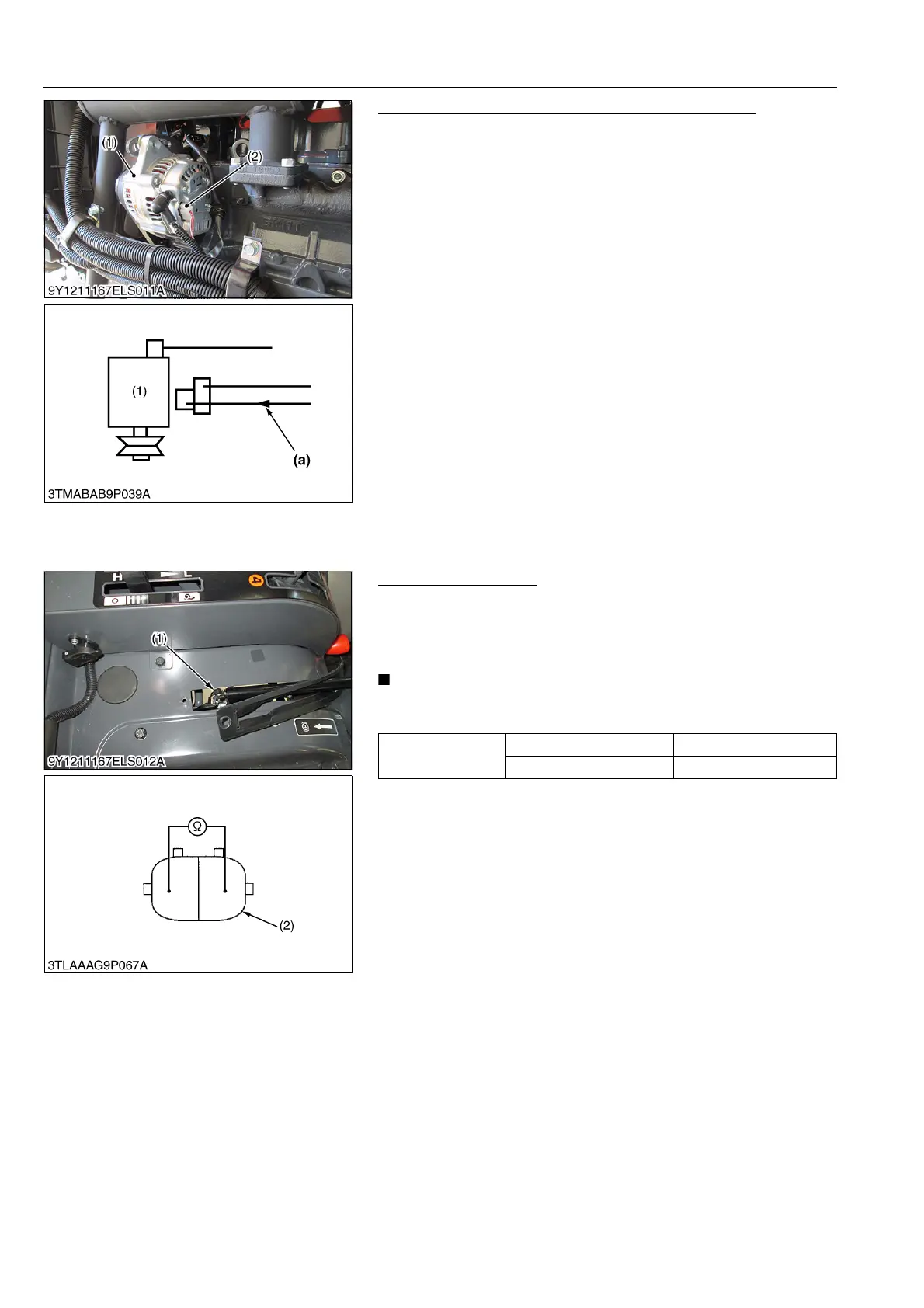

1. Disconnect the 2P connector (2) from the alternator after turning
the main switch "OFF".
2. Turn the main switch "ON" and connect a jumper lead from the
wiring harness connector terminal (WR) to the chassis.
3. If the charge lamp does not light, the panel board circuit,
alternator, wiring harness, or fuse is fault.
9Y1211167ELS0089US0
[10] MONITOR LAMP
(1) Checking
Parking Brake Switch
1. Disconnect the parking brake switch connector (2).
2. Measure the resistance between connector terminal as shown
in the table below.
3. If the switch is damaged, replace it.
• When the parking brake is applied, the parking brake
switch is released.
9Y1211167ELS0090US0
(1) Alternator
(2) 2P Connector
(a) From Charge Lamp
Resistance between
connector terminal
When switch is pushed Infinity
When switch is released 0 Ω
(1) Parking Brake Switch (2) Connector of Switch Side
