Bus setups Add sources to a parallel bus
Learn how to trigger on a bus. (see page 658)
Add sources to a parallel bus

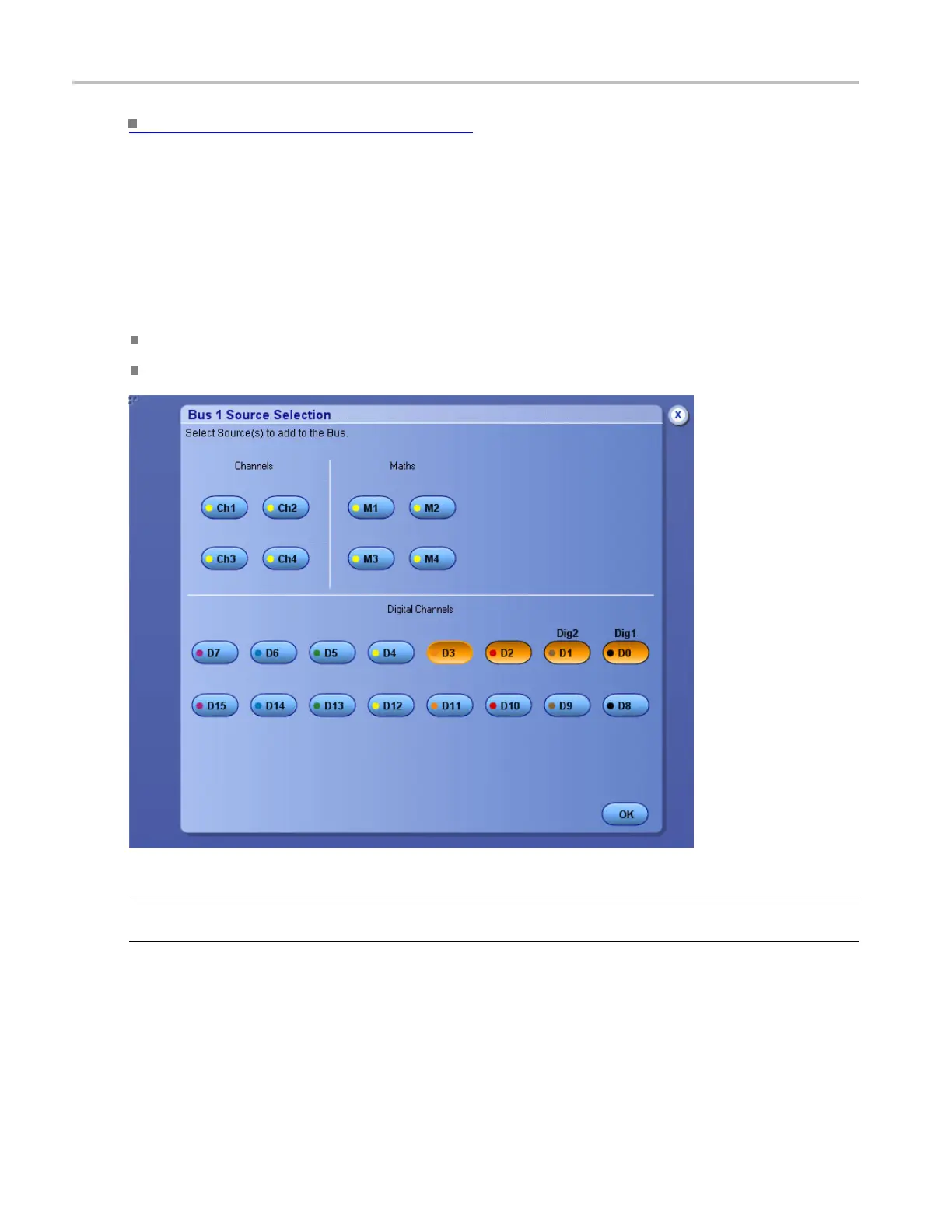

From the Bus Setup window, click the Add Sources Select button.
To use
Click the button for each channel to add to the bus.
Click the OK button.
NOTE. You have the option to add user-defined labels for the analog, reference, bus, and digital sources.
Digital sources are only available on MSO series instruments.
Behavior
The instrument adds the channels to the parallel bus starting with the Most Significant Bit (MSB). As you
select each subsequent channel, the instrument adds the channel to the bus as the next lower bit. The last
channel you select is the Least Significant Bit (LSB).
142 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series

Tektronix DPO70000C/DX Series Specifications

General

Vertical Sensitivity	1 mV/div to 1 V/div
Input Coupling	AC, DC, GND
Interface	USB, LAN, GPIB, HDMI
Power Requirements	100-240 VAC, 50/60 Hz
Channels	4
Display	12.1-inch LCD
Input Impedance	50 Ω or 1 MΩ
Trigger Types	Edge, Pulse Width, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Vertical Resolution	up to 12 bits
Operating Temperature	0°C to +50°C
Sample Rate	up to 100 GS/s
