Tektronix DPO70000C/DX Series User Manual

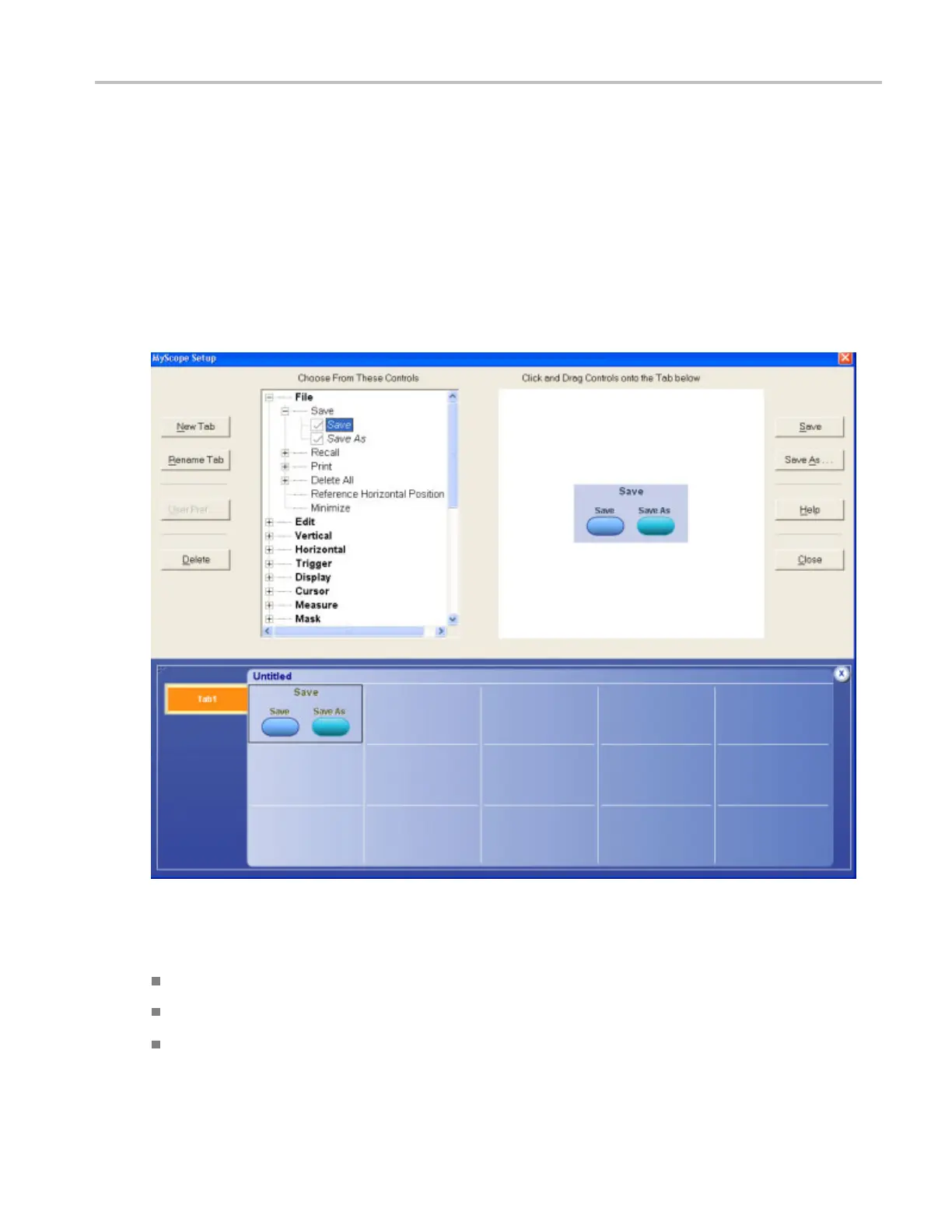

MyScope setups Set up a MyScope control window
Set up a MyScope control window
From the MyScope menu, select New Control Window.
Overview
MyScope allows you to create custom control windows that include only the controls you use regularly.
Instead of switching between several control windows, put the controls you use into a custom control
window.
To use
Click + to expand a control category.
Click a control to preview it in the pane at the right.
Click the + additionally to expand the control list. (If there is no +, then the control cannot be
customized further.)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 379

Tektronix DPO70000C/DX Series Specifications

General

Vertical Sensitivity	1 mV/div to 1 V/div
Input Coupling	AC, DC, GND
Interface	USB, LAN, GPIB, HDMI
Power Requirements	100-240 VAC, 50/60 Hz
Channels	4
Display	12.1-inch LCD
Input Impedance	50 Ω or 1 MΩ
Trigger Types	Edge, Pulse Width, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Vertical Resolution	up to 12 bits
Operating Temperature	0°C to +50°C
Sample Rate	up to 100 GS/s
