Vertical Setups Probe Properties

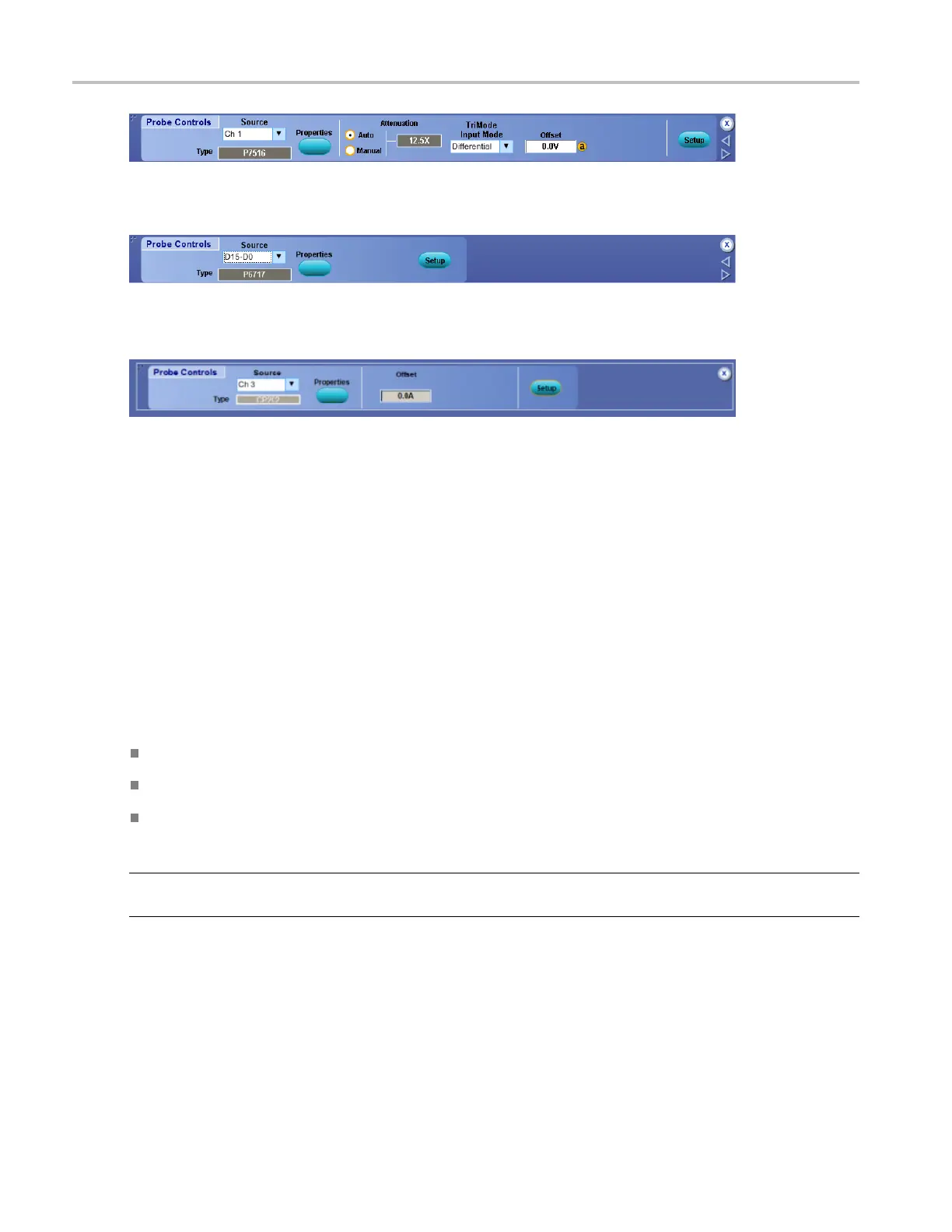

This window contains controls for Tektronix logic probes.
This window contains controls for Tektronix generic probes.
Probe Properties
From the Vertical menu, select Probe Controls, click the Setup button, and then click the Properties button.
To use
The Probe Properties dialog displays information on the probe attached to the analog or to the digital
chann
els. To view the probe information, select the channel of interest from the drop-down list of
channels under Probe.
The d
ialog includes the following information for analog probes:
Type of probe connected to the selected channel
Serial number of the attached probe (for probes with serial numbers)
Status information, such as the time you connected the probe, the probe type, the serial number, and
compensation results
NOTE. When the probe is compensated, the instrument polls the probe and displays the serial number. An
N
/A indicates that the probe has not been compensated.
