Mask testing setups View the mask hits per segment
View the mask hits per segment
From the Mask menu, select Pass/Fail Results.
Overview

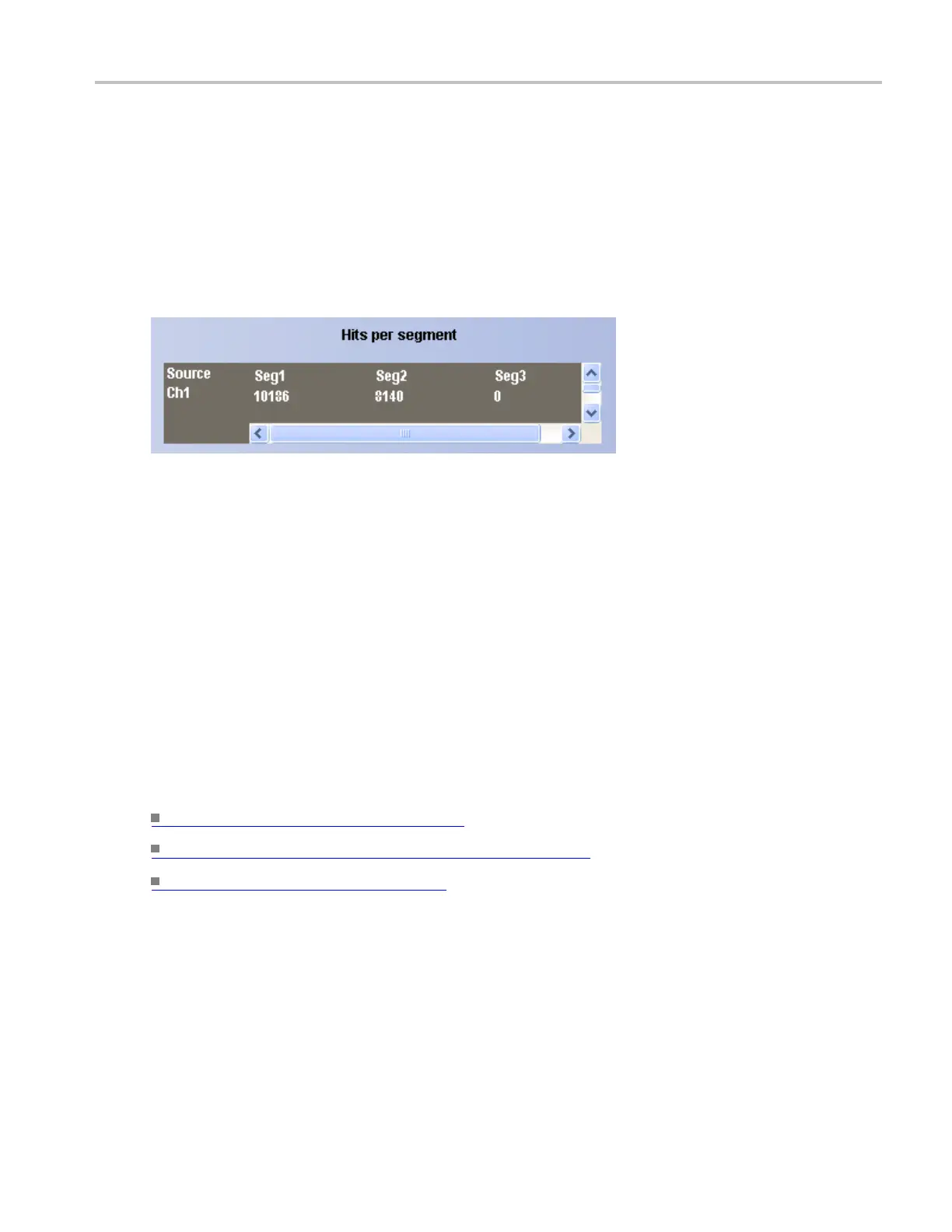

Use this window to view the hits for each mask segment of the test.
To use
The Hits per segment is a read only field.
Behavior
Each ma
sktestcanhaveupto16segments. Thedatapoint violations per segment are shown in this
window. Source indicates the input signal in use for the test. The segments are identified by Seg followed
by the number of the segment. Only the number of segments used in a test is shown. A scroll bar appears
if there are more segments used than can be seen at one time.
The segments of a mask are the polygonal regions on the screen. Segment one is the left upper most
polygon. Segments a re assigned from top to bottom and left to right on the screen.
What do you want to do next?
Learn about test summary. (see page 229)
Le
arn about the Mask Test Controls window.
(see page 886)
Learn about test results. (see page 228)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 231
