Analyzing waveforms Set the search mode

To use

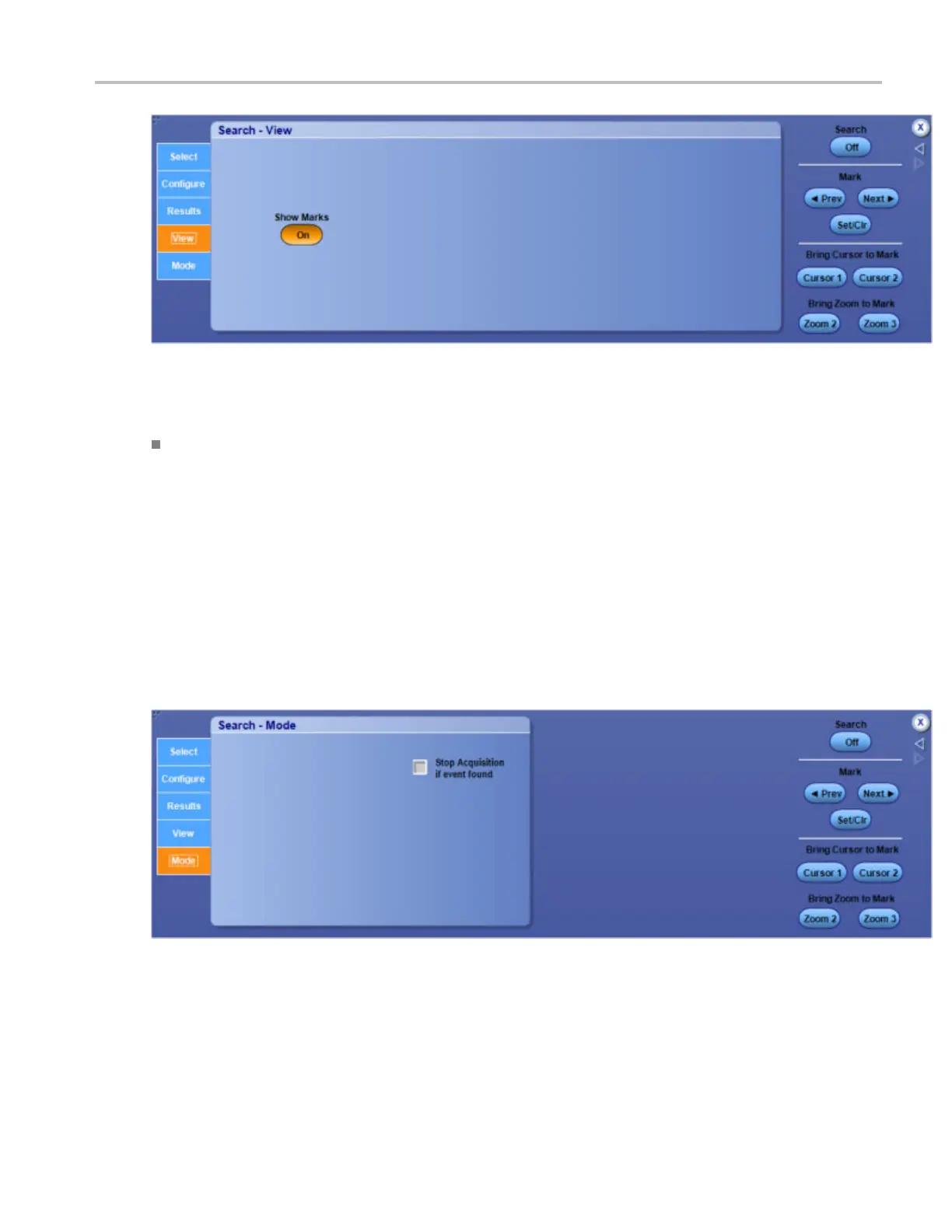

Click the Show Marks button On or Off to display the marks p laced on a waveform.

Set the search mode

From the Analyze menu, select Search; then open the Mode tab.

Overview

You can set up the instrument to stop acquiring waveforms when a search criteria is met and the instrument

ﬁnds a match.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 311
