Tektronix DPO70000C/DX Series User Manual

Analyzing waveforms Set up CAN search parameters

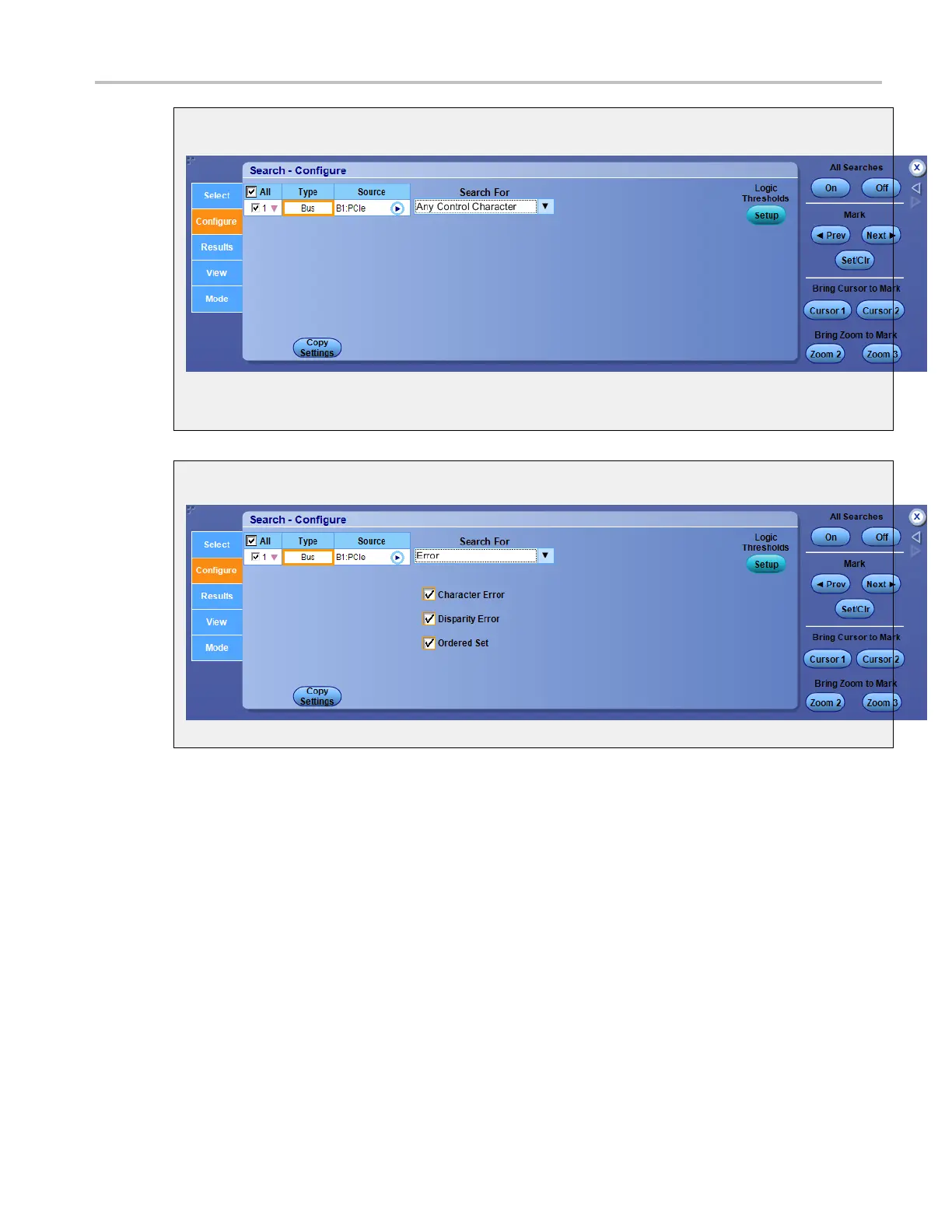

Search for an y control character
Select the Ordered Set from the drop-down list.
Search for error
Set up CAN search parameters
After setting up a CAN bus, go to the Analyze menu, select Search, and then select the Bus trigger type;
then open the Configure tab.
Overview
Use the controls to set up the CAN Bus parameters.
To use
For information o n the co
ntrols, click the buttons.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 345
