Trigger setups Set up a Transition Time trigger
Behavior
Use the Timeout trigger to trigger the instrument on pulses longer than the specified time. The instrument
will trigger at the end of the time-out period. The instrument can trigger o n high, low, or both high and
low pulses. The trigger can also be qualified by the logical state of other channels or by a bus pattern
(MSO70000C S
eries only). When you click on the trigger window controls, the trigger graphic
(see
page 386) shows the trigger sequence.
Use the Timer control to specify the time-out limit; any pulses wider than the limit will trigger the

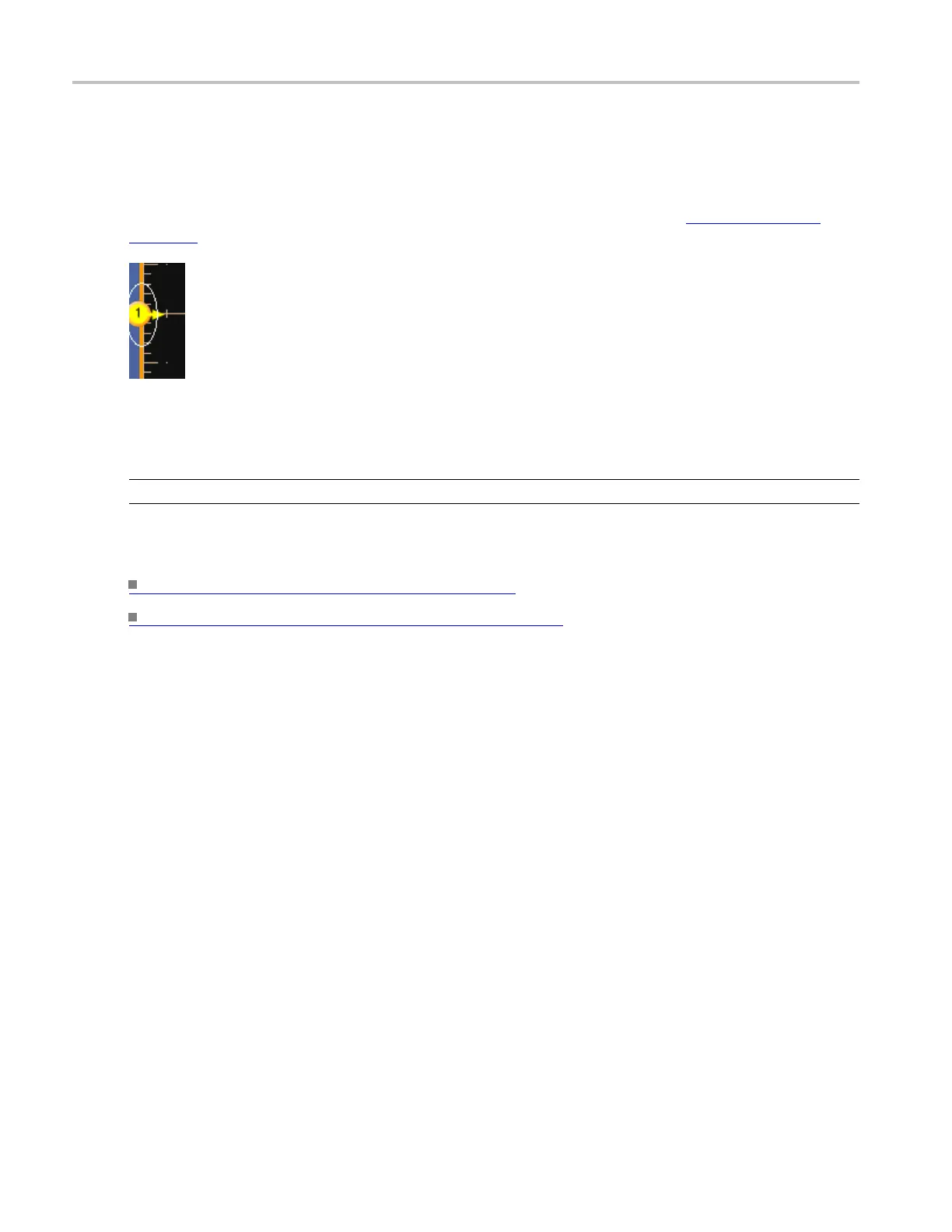

instrument. The time-out limit is measured at the voltage level specified by the Level control.
NOTE. Yo
u have the option to add user-defined labels for analog, reference, bus, and digital sources.
What do you want to do next?
Learn more about other trigger types. (see page 386)
Return to the Trigger Setup control window. (see page 385)
Set up a Transition Time trigger
From the Trig menu, select Transition Setup.
Overview
Use the controls in this window to set up the Transition time trigger parameters.
To use
For information on the controls, click the buttons.
438 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
