Tektronix DPO70000C/DX Series User Manual

Vertical Setups Probe Setup Control Window: D15-D0 Tab
3. In the Probe Setup window, click a Chan <1–4> tab to activate the controls for the input source.
4. Configure the controls for the probe type you attached.
What do you want to do next?
Learn more about the Vertical controls. (see page 506)

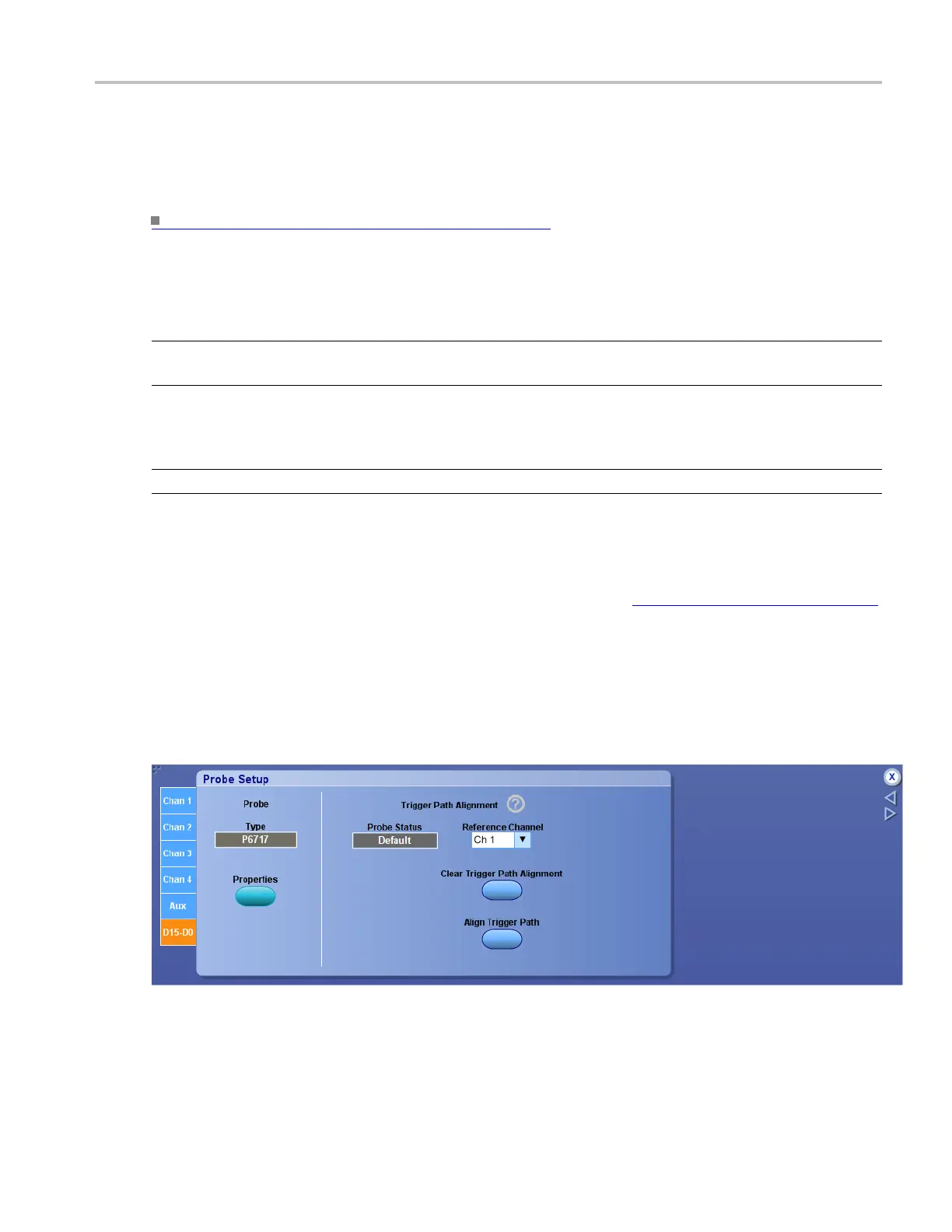

Probe Setup Control Window: D15-D0 Tab
NOTE. The Probe Setup Control Window: D15-D0 Tab is available only on M SO5000 and MSO70000C
Series instruments and on DPO5000 Series instruments with option MSOE.
From the Vertical menu, select Probe Controls, click the Setup button, and then open the D15-D0 tab.
NOTE. You m ust attach a logic probe to the logic probe port on the front panel to activate this setup window.
Overview
Use the Probe Setup control window to align the instrument trigger path to optimize measurement
accuracy. The logic probe input for channels D15-D0 is located on the instrument front panel
(see page 55).
The instrument requires the Logic Probe Deskew Fixture (Tektronix part number 067-2083-XX) to deskew
the logic probe trigger path.
To use
For information o n the controls, click the buttons.
1. Connect a logic probe to the logic probe port on the front panel.
2. From the Digital menu, select Digital Setup.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 501
