Utilities Install the Floating License

3. On success

ful installation, a dialog box appears indicating that the Option is enabled. Reboot the

instrument for the changes to take effect.

For examp

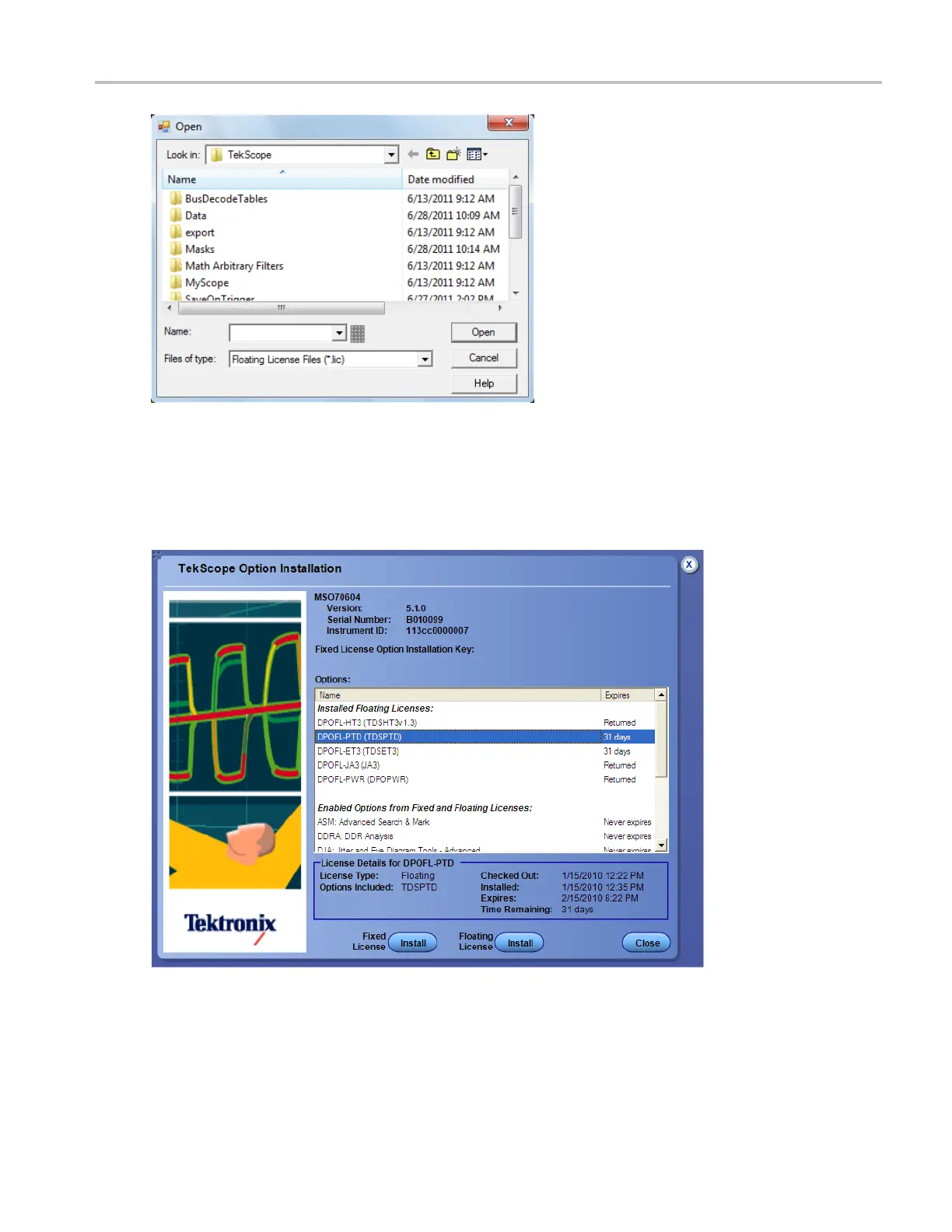

le, after installing DPOFL-PTD (TDSPTD), the Tekscope Option Installation dialog box

appears as follows:
