Tektronix DPO70000C/DX Series User Manual

Oscilloscope Reference Display elements

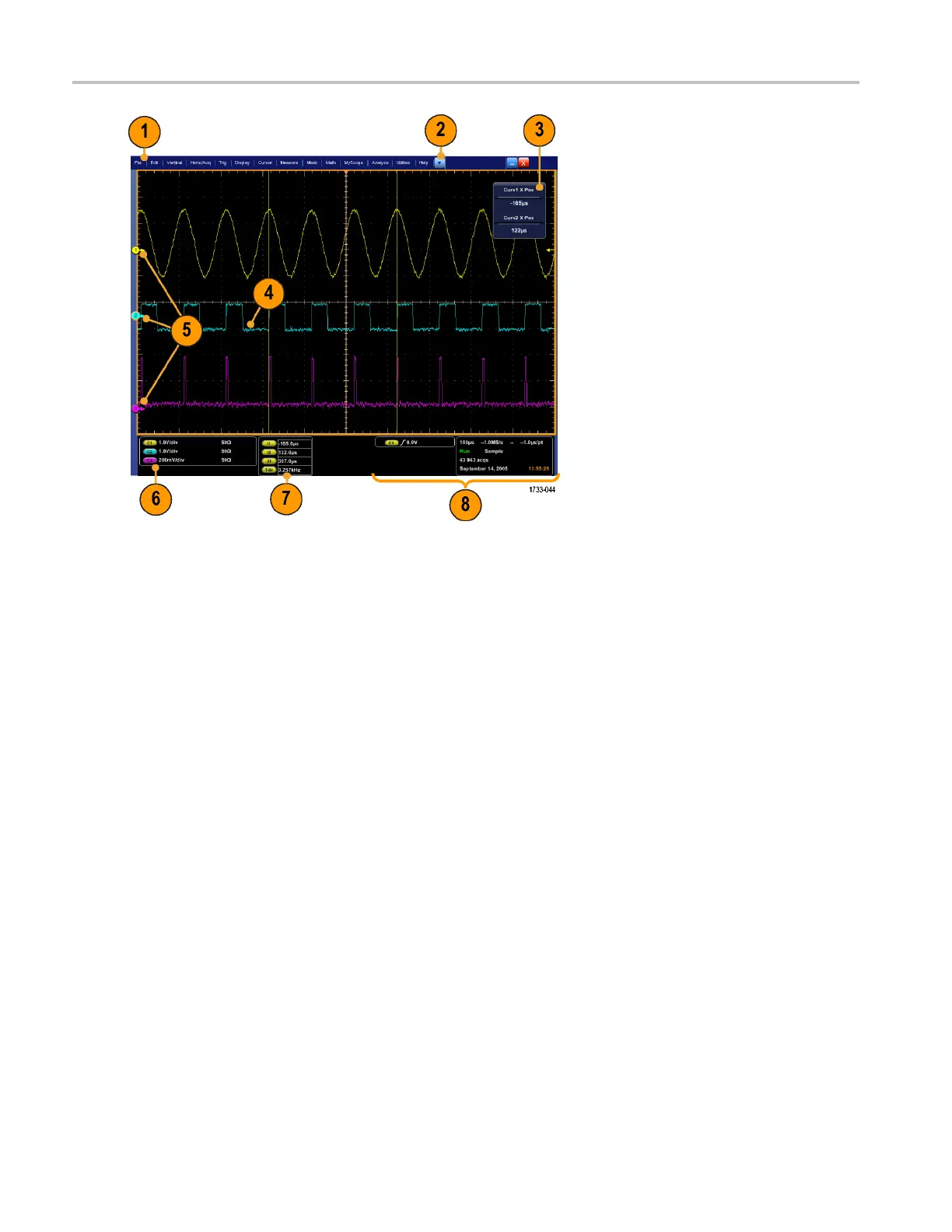

See the n
ext figure for some ideas on how to manipulate the display elements.
1. Click to toggle between toolbar and menu bar modes and select toolbar extensions.
2. Drag cursors to measure waveforms on screen.
3. Drag the horizontal reference marker to reposition a waveform.
4. Click the waveform handle to assign the multipurpose knobs to waveform vertical position and scale.
5. Drag across the waveform area to create a box for zooming, enabling/disabling histograms, and
gating measurements.
6. Drag the trigger level marker to change the trigger level.
716 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series

Tektronix DPO70000C/DX Series Specifications

General

Vertical Sensitivity	1 mV/div to 1 V/div
Input Coupling	AC, DC, GND
Interface	USB, LAN, GPIB, HDMI
Power Requirements	100-240 VAC, 50/60 Hz
Channels	4
Display	12.1-inch LCD
Input Impedance	50 Ω or 1 MΩ
Trigger Types	Edge, Pulse Width, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Vertical Resolution	up to 12 bits
Operating Temperature	0°C to +50°C
Sample Rate	up to 100 GS/s
