FEATURES
1-4
EAS30683
OUTLINE OF THE ABS
1. The Yamaha ABS (anti-lock brake system) features an electronic control system, which acts on the
front and rear brakes independently.
2. The ABS features a compact and lightweight design to help maintain the basic maneuverability of
the vehicle.
3. The hydraulic unit assembly, which is the main component of the ABS, is centrally located on the
vehicle to increase mass centralization.

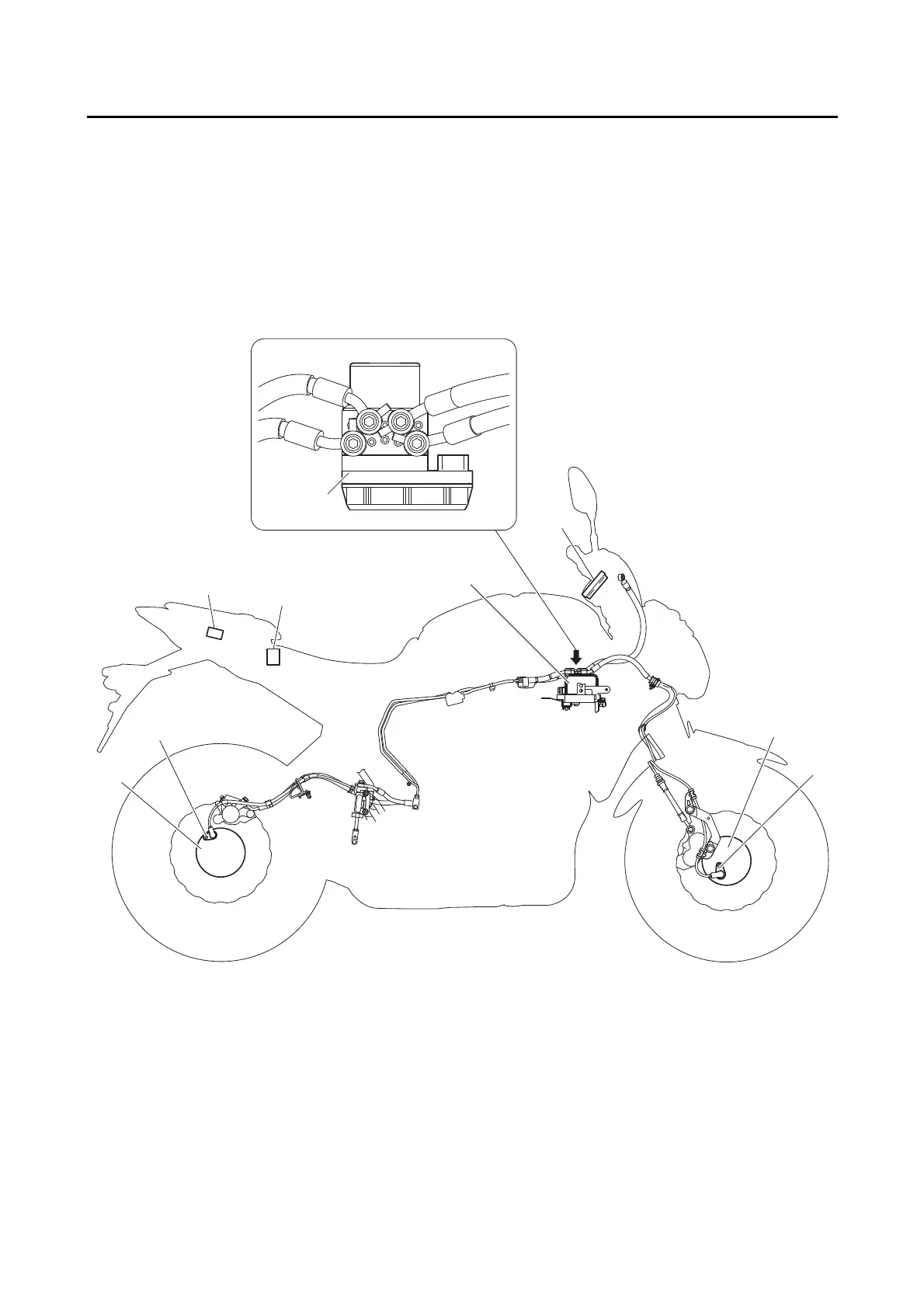

ABS layout
1. Hydraulic unit assembly
2. ABS warning light
3. Front wheel sensor rotor
4. Front wheel sensor
5. Rear wheel sensor rotor
6. Rear wheel sensor
7. Yamaha diagnostic tool coupler
8. ABS control unit fuse
9. ABS solenoid fuse
10.ABS motor fuse
