Yamaha 2014 MT-07 Service Manual

IMPORTANT INFORMATION
1-23
EAS20009
IMPORTANT INFORMATION
EAS30006

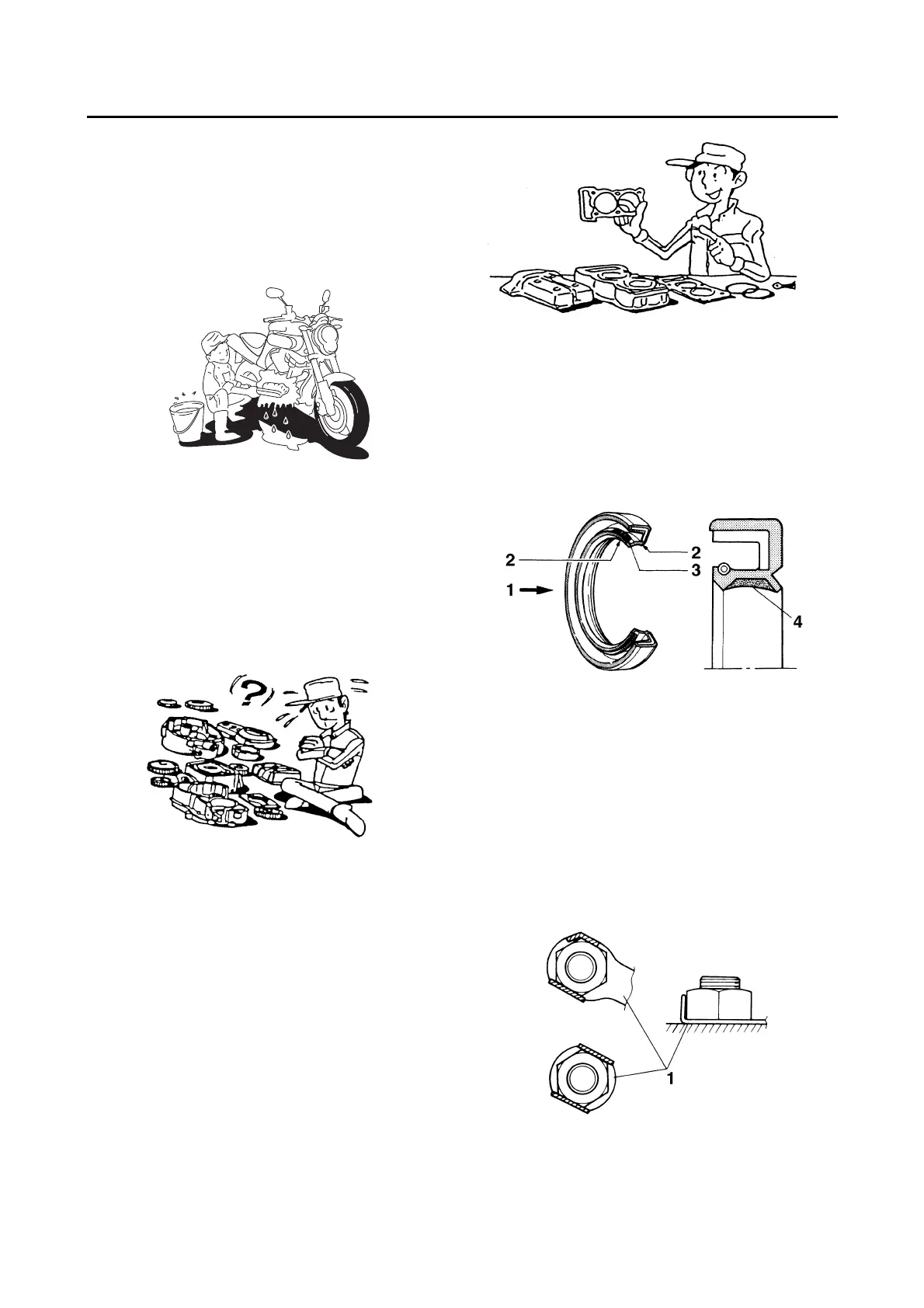

PREPARATION FOR REMOVAL AND
DISASSEMBLY
1. Before removal and disassembly, remove all
dirt, mud, dust and foreign material.
2. Use only the proper tools and cleaning equip-
ment.
Refer to “SPECIAL TOOLS” on page 1-30.
3. When disassembling, always keep mated
parts together. This includes gears, cylinders,
pistons and other parts that have been “mat-
ed” through normal wear. Mated parts must
always be reused or replaced as an assem-
bly.
4. During disassembly, clean all of the parts and
place them in trays in the order of disassem-
bly. This will speed up assembly and allow for
the correct installation of all parts.
5. Keep all parts away from any source of fire.
EAS30007
REPLACEMENT PARTS
Use only genuine Yamaha parts for all replace-
ments. Use oil and grease recommended by
Yamaha for all lubrication jobs. Other brands
may be similar in function and appearance, but
inferior in quality.
EAS30008
GASKETS, OIL SEALS AND O-RINGS
1. When overhauling the engine, replace all
gaskets, seals and O-rings. All gasket surfac-
es, oil seal lips and O-rings must be cleaned.
2. During reassembly, properly oil all mating
parts and bearings and lubricate the oil seal
lips with grease.
EAS30009
LOCK WASHERS/PLATES AND COTTER
PINS
After removal, replace all lock washers/plates
“1” and cotter pins. After the bolt or nut has been
tightened to specification, bend the lock tabs
along a flat of the bolt or nut.
1. Oil
2. Lip
3. Spring
4. Grease

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
