PERIODIC MAINTENANCE
3-13
EWA17050

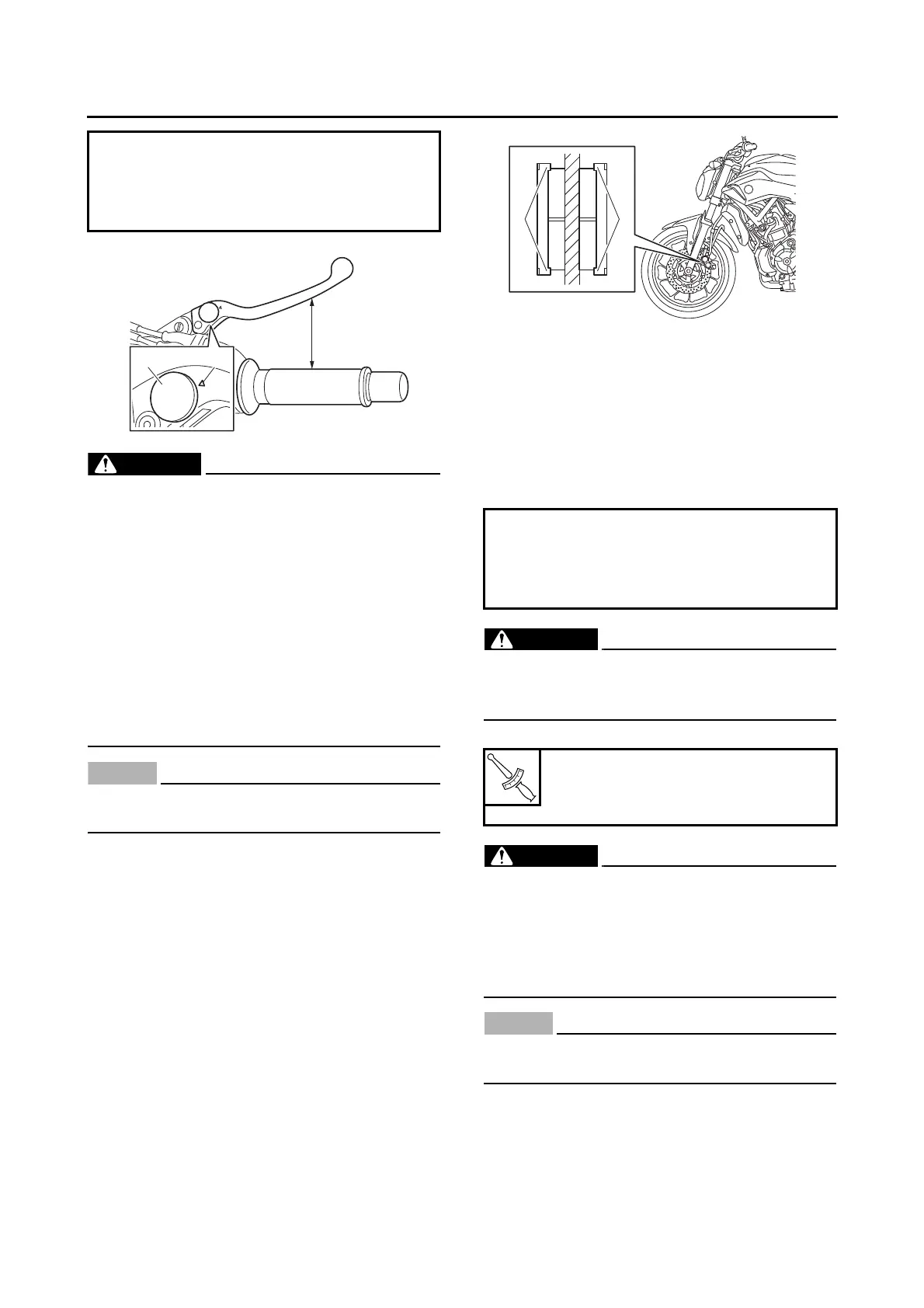

• After adjusting the brake lever position,
make sure the pin on the brake lever holder
is firmly inserted in the hole in the adjusting
dial.
• A soft or spongy feeling in the brake lever
can indicate the presence of air in the brake
system. Before the vehicle is operated, the
air must be removed by bleeding the brake
system. Air in the brake system will consid-
erably reduce brake performance resulting
in loss of control and possibly cause an ac-
cident. Therefore, check and if necessary,
bleed the brake system.
ECA13490
After adjusting the brake lever position,
make sure there is no brake drag.
EAS30633
CHECKING THE FRONT BRAKE PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
• Front brake pad
Wear indicators “a” almost touch the brake
disc → Replace the brake pads as a set.
Refer to “FRONT BRAKE” on page 4-35.
EAS30631
ADJUSTING THE REAR DISC BRAKE
1. Adjust:
• Brake pedal position
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Loosen the locknut “1”.
b. Turn the adjusting bolt “2” in direction “a” or
“b” until the specified brake pedal position is
obtained.
EWA13070
After adjusting the brake pedal position,
check that the end of the adjusting bolt “c” is
visible through the hole “d”.
c. Tighten the locknut “1” to specification.
EWA17030
A soft or spongy feeling in the brake pedal
can indicate the presence of air in the brake
system. Before the vehicle is operated, the
air must be removed by bleeding the brake
system. Air in the brake system will consid-
erably reduce braking performance.
ECA13510
After adjusting the brake pedal position,
make sure there is no brake drag.
Position #1
Distance “a” is the largest.
Position #5
Distance “a” is the smallest.
5
4
3
2
1
Direction “a”
Brake pedal is raised.
Direction “b”
Brake pedal is lowered.
Rear brake pedal adjusting lock-
nut
18 Nm (1.8 m·kgf, 13 ft·lbf)
To Next Page
