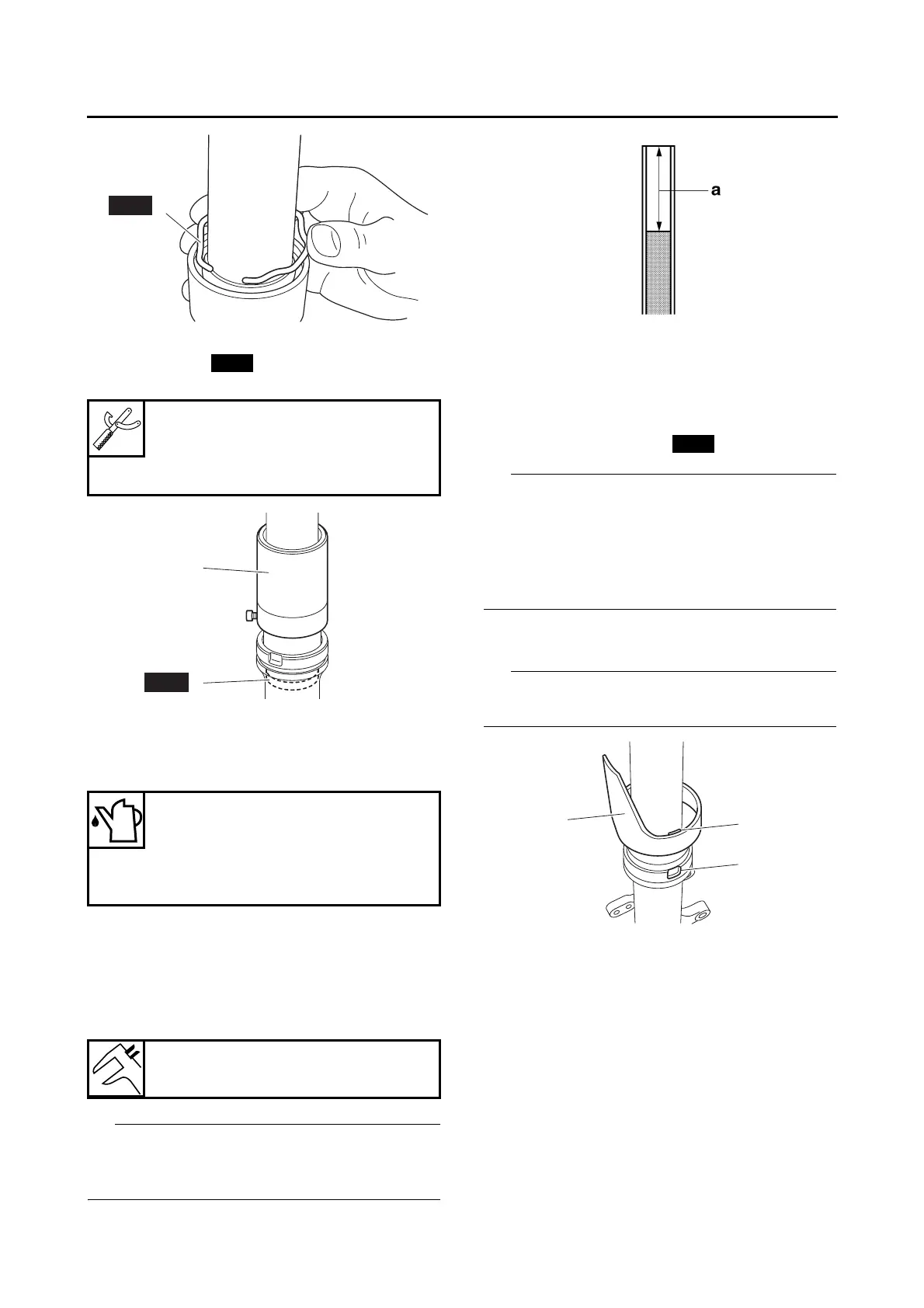

FRONT FORK
4-84
9. Install:
• Dust seal “1”
(with the fork seal driver weight “2”)
10.Fill:
• Front fork leg
(with the specified amount of the recom-
mended fork oil)
11.Measure:
• Front fork leg oil level “a”
(from the top of the inner tube, with the outer
tube fully compressed and without the fork
spring)
Out of specification → Correct.
• While filling the front fork leg, keep it upright.
• After filling, slowly pump the front fork leg up
and down to distribute the fork oil.
12.Install:
• Fork spring
• Spring seat
• Spacer
• Front fork cap bolt
(along with the O-ring )
• Before installing the front fork cap bolt, lubri-
cate its O-ring with grease.
• Temporarily tighten the front fork cap bolt.
• Tighten the front fork cap bolt specified torque,
when installing the front fork with upper brack-
et.
13.Install:
• Protector “1”
Align the projection “a” on the protector with the
slot “b” in the outer tube.
EAS31111
INSTALLING THE FRONT FORK LEGS AND
FRONT FENDER SIDE COVERS
The following procedure applies to both of the
front fork legs and front fender side covers.
1. Install:
• Front fork leg “1”
Temporarily tighten the lower bracket pinch
bolts.
• O-ring “2”
Fork seal driver weight
90890-01367
Replacement hammer
YM-A9409-7
Quantity
403.0 cm³ (13.63 US oz, 14.21
Imp.oz)
Recommended oil
Fork oil 10W or equivalent
Level
162.0 mm (6.4 in)
To Next Page
