Yamaha 2014 MT-07 Service Manual

CHAIN DRIVE
4-101
EAS20038
CHAIN DRIVE

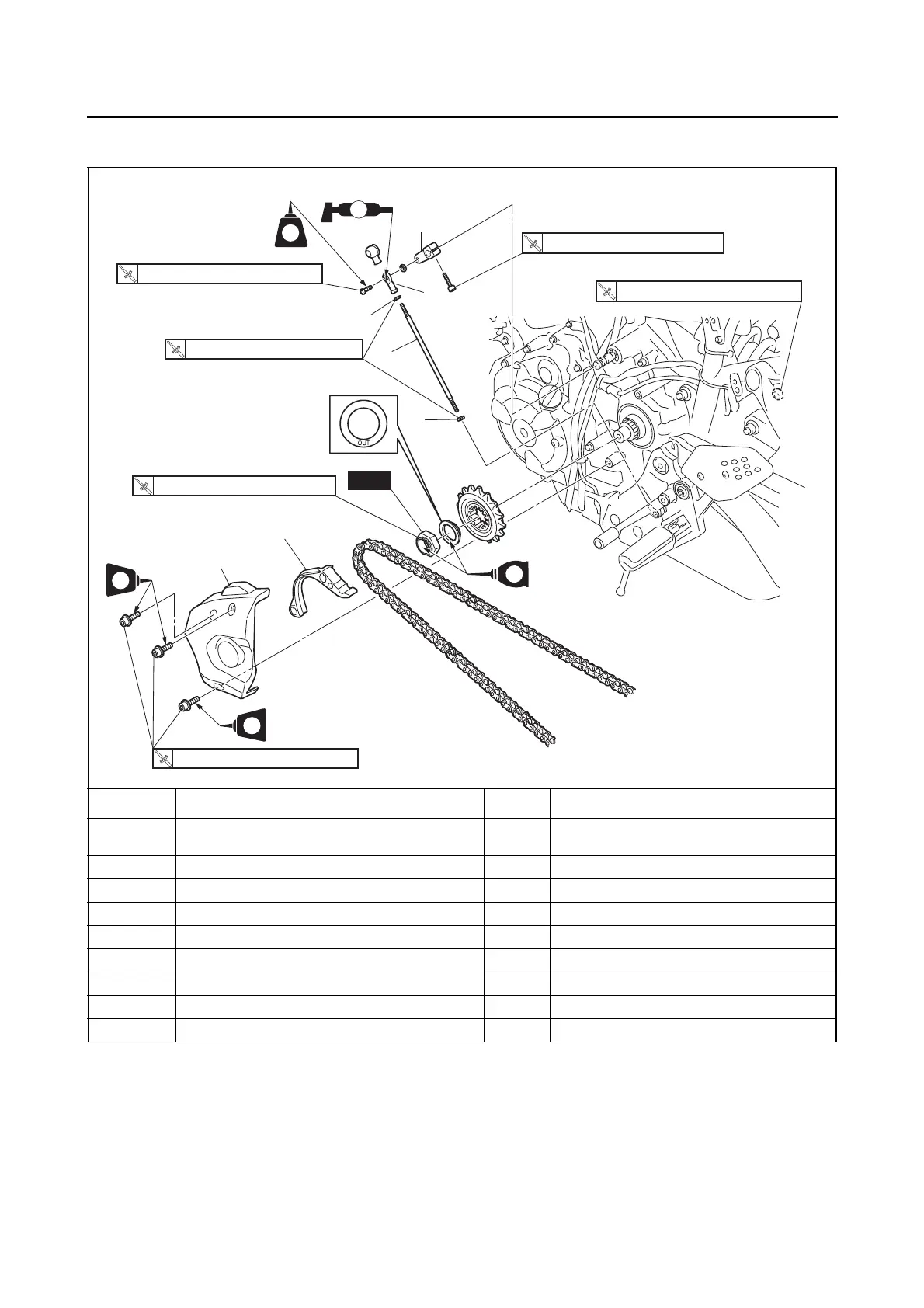

Removing the drive chain
Order Job/Parts to remove Q’ty Remarks
Drive chain guard
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-91.
Pivot shaft protectors/sidestand Refer to “SWINGARM” on page 4-95.
1 Shift rod locknut (shift arm side) 1
2 Shift rod locknut (shift pedal side) 1 Left-hand threads
3 Shift rod 1
4 Shift rod joint 1
5 Shift arm 1
6 Drive sprocket cover 1
7 Drive chain guide 1
1
2
3
4
5
6
7
New
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R
.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
9 Nm (0.9 m
•
kgf, 6.5 ft
•
Ibf)
T
.R
.
14 Nm (1.4 m
•
kgf, 10 ft
•
Ibf)
T
.R
.
95 Nm (9.5 m
•
kgf, 69 ft
•
Ibf)
T
.R
.
110 Nm (11 m
•
kgf, 80 ft
•
lbf)
T
.R
.
E
LS
LT
LT
LT
LT
