Yamaha 2014 MT-07 Service Manual

CAMSHAFTS
5-24
EAS30274

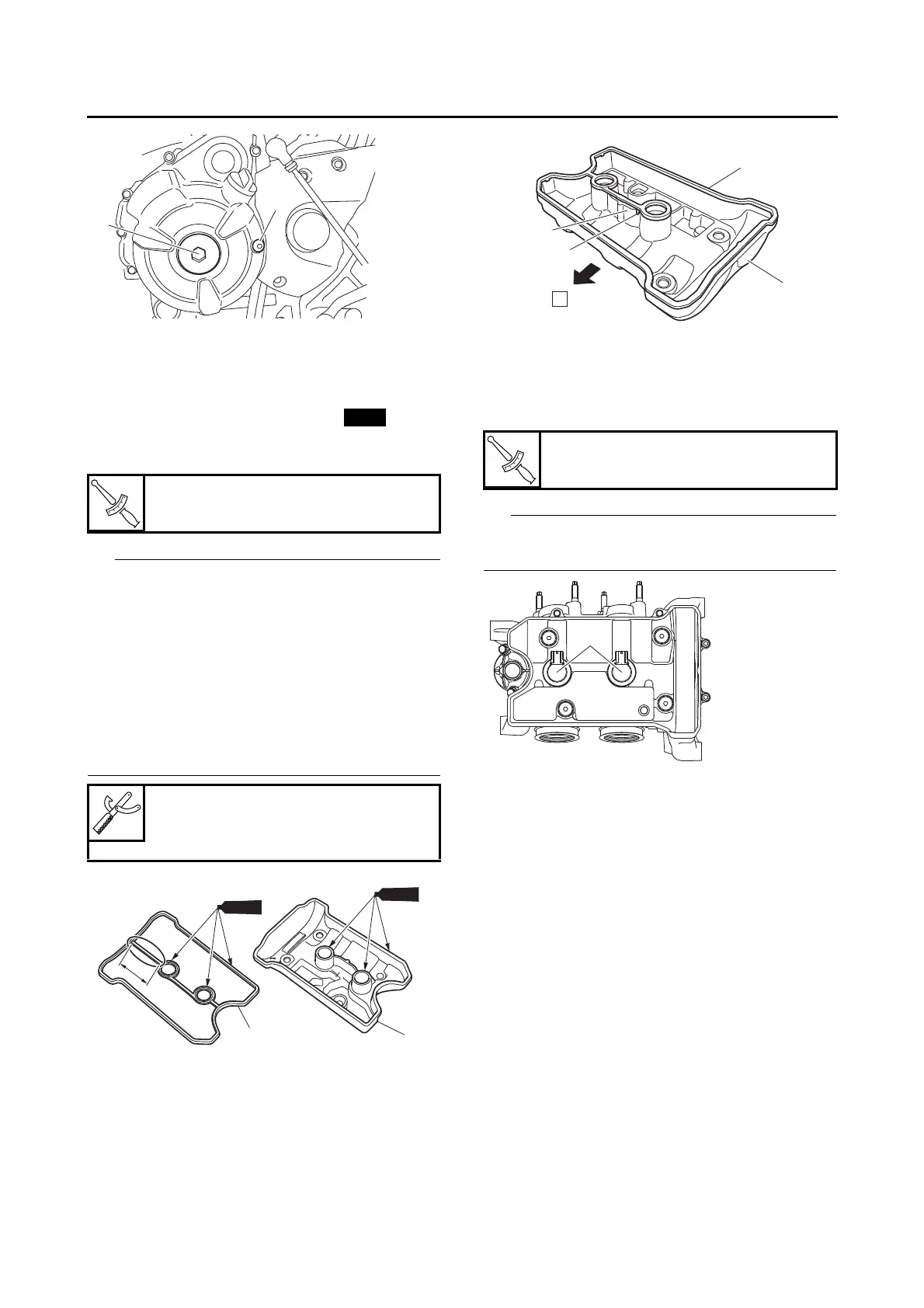

INSTALLING THE CYLINDER HEAD COVER
1. Install:
• Timing chain guide (top side)
• Cylinder head cover gasket “1”
(to the cylinder head cover)
• Cylinder head cover “2”
TIP
• Apply Yamaha bond No.1215 “3” onto the mat-
ing surfaces of the cylinder head cover gasket
and cylinder head.
• After installing the cylinder head cover gasket
“1” to the cylinder head cover, cut off the “a”
section.
• Make sure that the projection “b” on the cylin-
der head cover gasket is positioned on the ex-
haust side of the rib “c” on the cylinder head
cover.
2. Install:
• Spark plugs
• Ignition coils “1”
TIP
Install the ignition coils “1” in the direction shown
in the illustration.
T
R
.
.
Cylinder head cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Yamaha bond No. 1215
90890-85505
(Three bond No.1215®)
2
1
New
3
3
2
1
a
A. Exhaust side
T
R
.
.
Spark plug
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
2
1
c
b
A
1

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
