Yamaha 2014 MT-07 Service Manual

OIL PAN
5-68
EAS31068

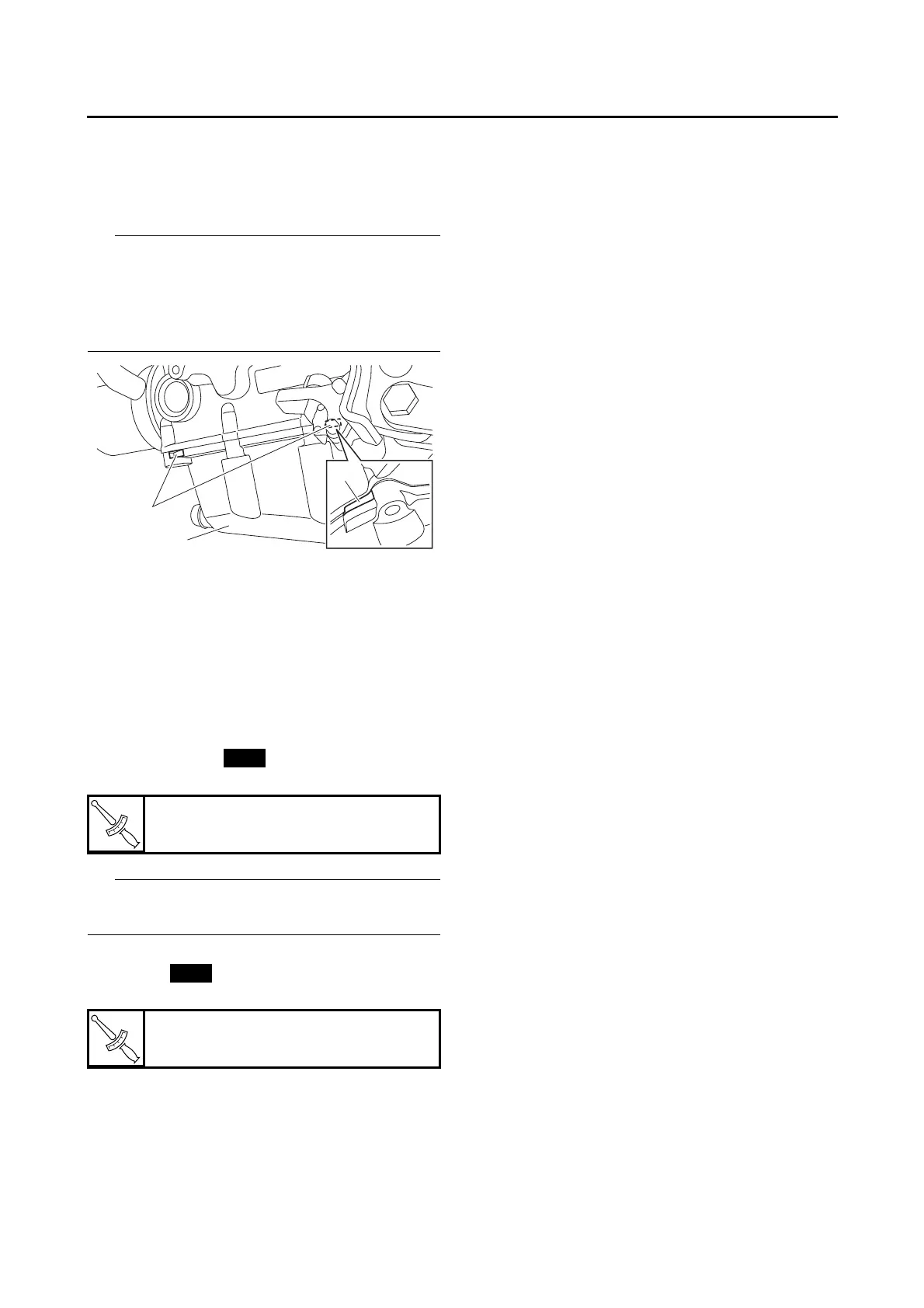

REMOVING THE OIL PAN
1. Remove:
• Oil pan “1”
• Oil pan gasket
TIP
• Loosen each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern. After all of the
bolts are fully loosened, remove them.
• Insert a flat-head screwdriver into the slots “a”
in the oil pan to remove the oil pan.
EAS31069
CHECKING THE OIL STRAINER
1. Check:
• Oil strainer
Damage → Replace.
Contaminants → Clean with solvent.
EAS31070
INSTALLING THE OIL PAN
1. Install:
• Oil pan gasket
• Oil pan
TIP
Tighten the oil pan bolts in stages and in a criss-
cross pattern.
2. Install:
•Gasket
• Engine oil drain bolt
T
R
.
.
Oil pan bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
T
R
.
.
Engine oil drain bolt
43 Nm (4.3 m·kgf, 31 ft·lbf)
a
a
1
New
New

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
