Yamaha 2014 MT-07 Service Manual

REAR WHEEL
4-26
EAS20029

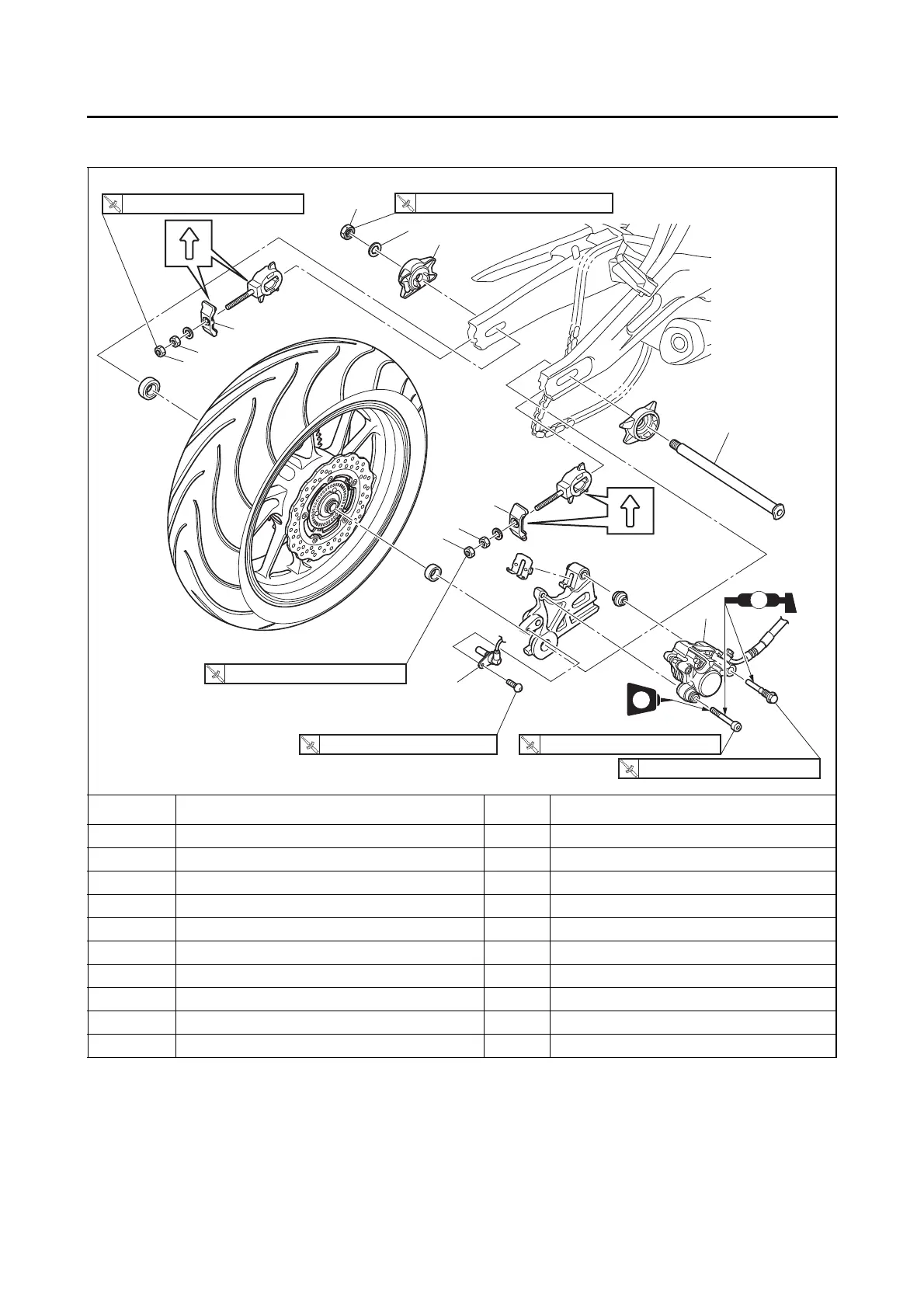

REAR WHEEL
Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
1 Rear wheel sensor 1
2 Rear brake caliper 1
3 Drive chain puller locknut 2 Loosen.
4 Drive chain adjusting nut 2 Loosen.
5 Swingarm end plate (left) 1
6 Swingarm end plate (right) 1
7 Wheel axle nut 1
8Washer 1
9 Rear wheel axle 1
10 Drive chain slack adjusting plate (left) 1
3
4
5
10
3
4
6
1
8
9
7
S
2
16 Nm (1.6 m•kgf, 12 ft•Ibf)
T
.R.
16 Nm (1.6 m•kgf, 12 ft•Ibf)
T
.
R.
105 Nm (10.5 m•kgf, 76 ft•lbf)
T
.
R.
22 Nm (2.2 m•kgf, 16 ft•Ibf)
T
.
R.
27 Nm (2.7 m•kgf, 20 ft•Ibf)
T
.
R.
LT
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
