GENERAL CHASSIS (3)
4-10
EAS31128

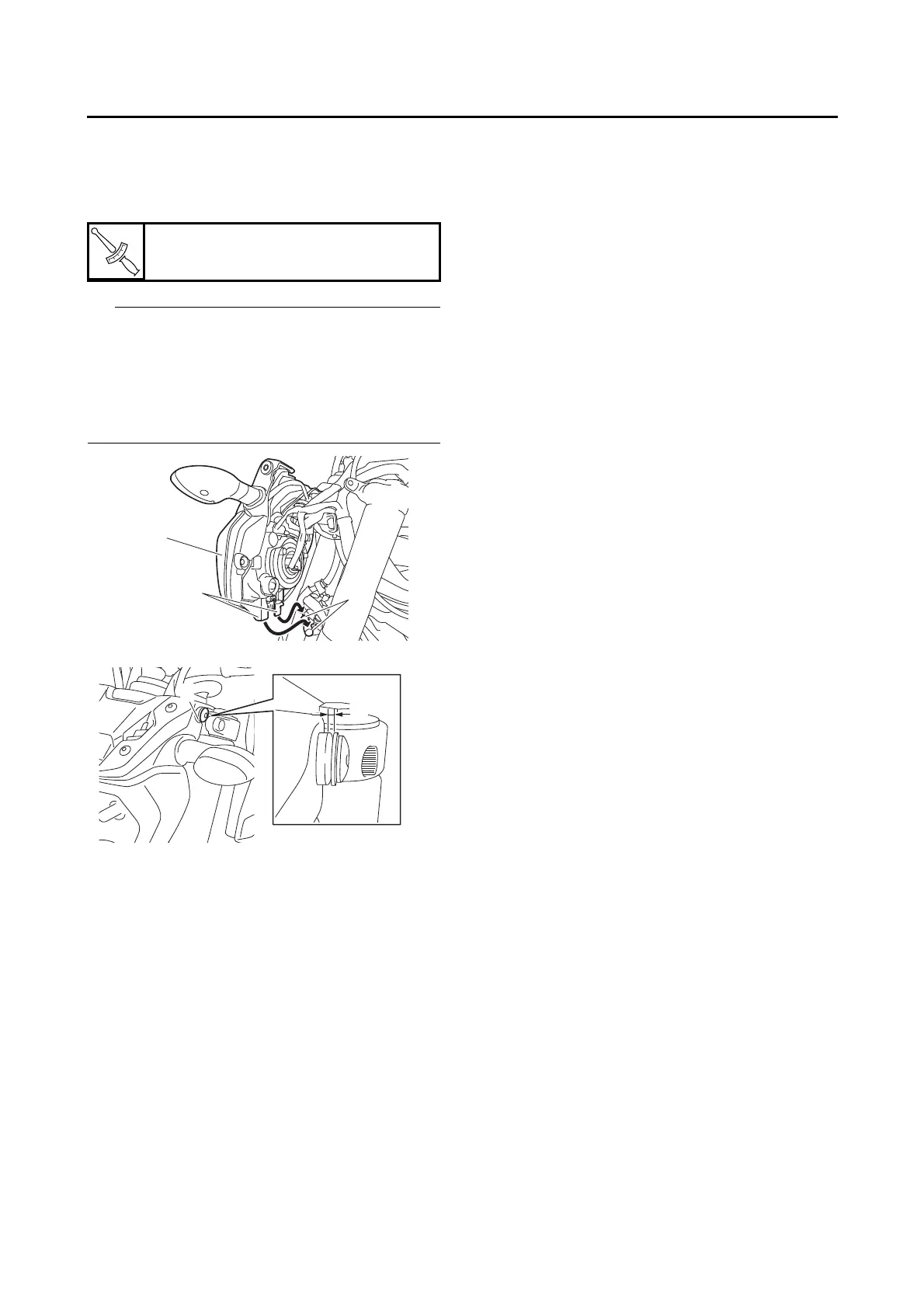

INSTALLING THE HEADLIGHT ASS
EMBLY
1.
Install:
•
Headlight assembly “1”
•
Headlight assembly bolts “2”
TIP
•
Fit the projections “a” on the headlight bracket
into the holes “b” in the headlight assembly.
•
When the headlight assembly bolts are tight-
ened to specification, there may be gaps “a”
between the washers and the grommets as
shown in the illustration.
T
R
.
.
Headlight assembl
y bolt
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
b
a
1
2
a
164
166
