GENERATOR AND STARTER CLUTCH
5-39
EAS20140
GENERATOR AND STARTER CLUTCH

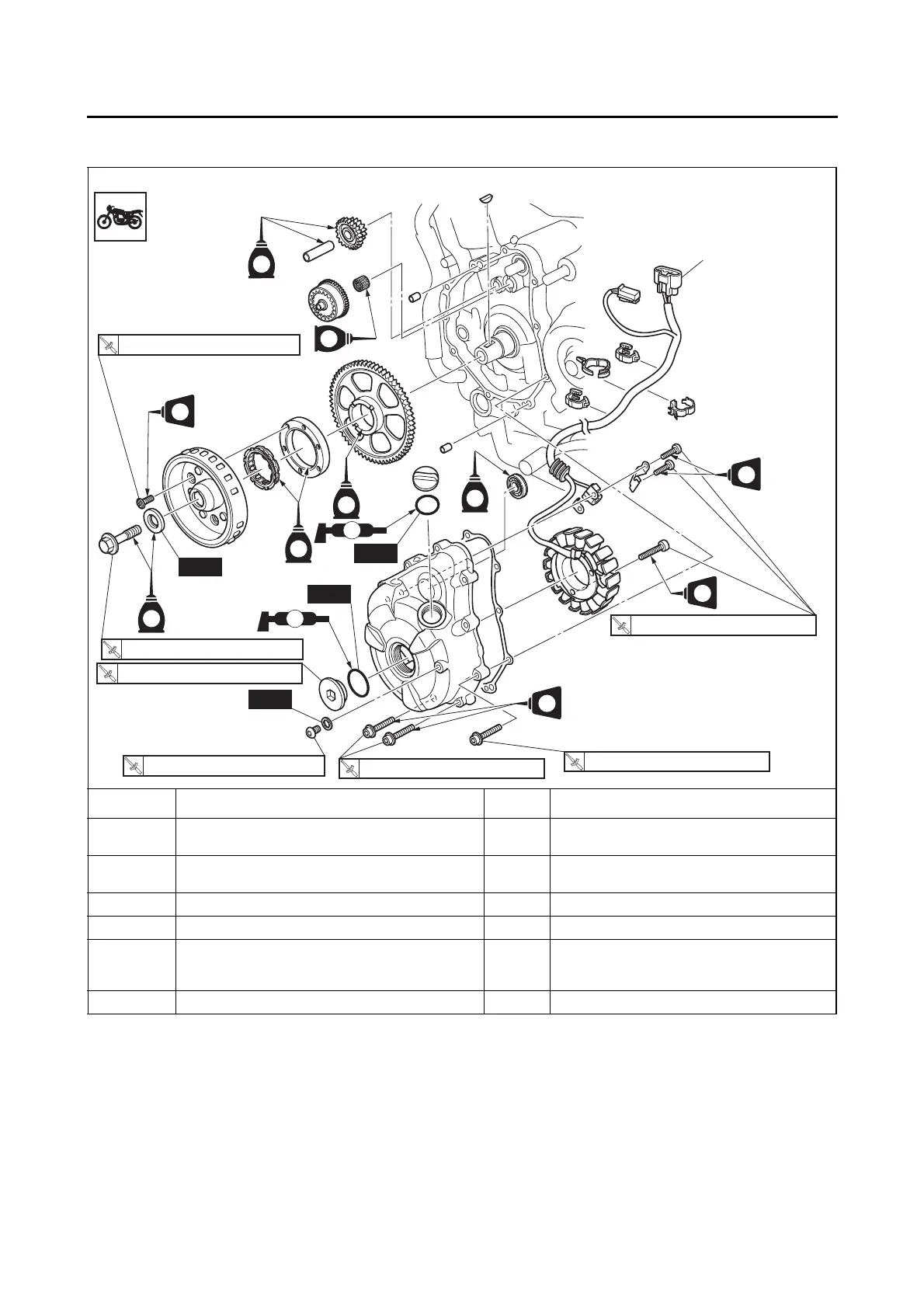

Removing the stator coil, generator rotor and starter clutch
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank top cover/Fuel tank cover (left)
Refer to “GENERAL CHASSIS (4)” on page
4-11.
Drive chain sprocket cover Refer to “CHAIN DRIVE” on page 4-101.
Coolant reservoir Refer to “RADIATOR” on page 6-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-22.
1 Stator coil coupler 1 Disconnect.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R
.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.
R.
12 Nm (1.2 m
•
kgf, 8.7 ft
•
Ibf)
T
.
R.
12 Nm (1.2 m
•
kgf, 8.7 ft
•
Ibf)
T
.
R
.
15 Nm (1.5 m
•
kgf, 11 ft
•
Ibf)
T
.R
.
32 Nm (3.2 m
•
kgf, 23 ft
•
Ibf)
T
.R
.
70 Nm (7.0 m
•
kgf, 51 ft
•
Ibf)
T
.R
.
LT
LT
LT
LT
LT
LT
LT
LT
LS
LS
New
New
New
New
E
E
E
E
E
E
1
(3)
(8)
(3)
