PERIODIC MAINTENANCE
3-14
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
2. Adjust:
• Rear brake light switch
Refer to “ADJUSTING THE REAR BRAKE
LIGHT SWITCH” on page 3-26.
EAS30634
CHECKING THE REAR BRAKE PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
• Rear brake pad

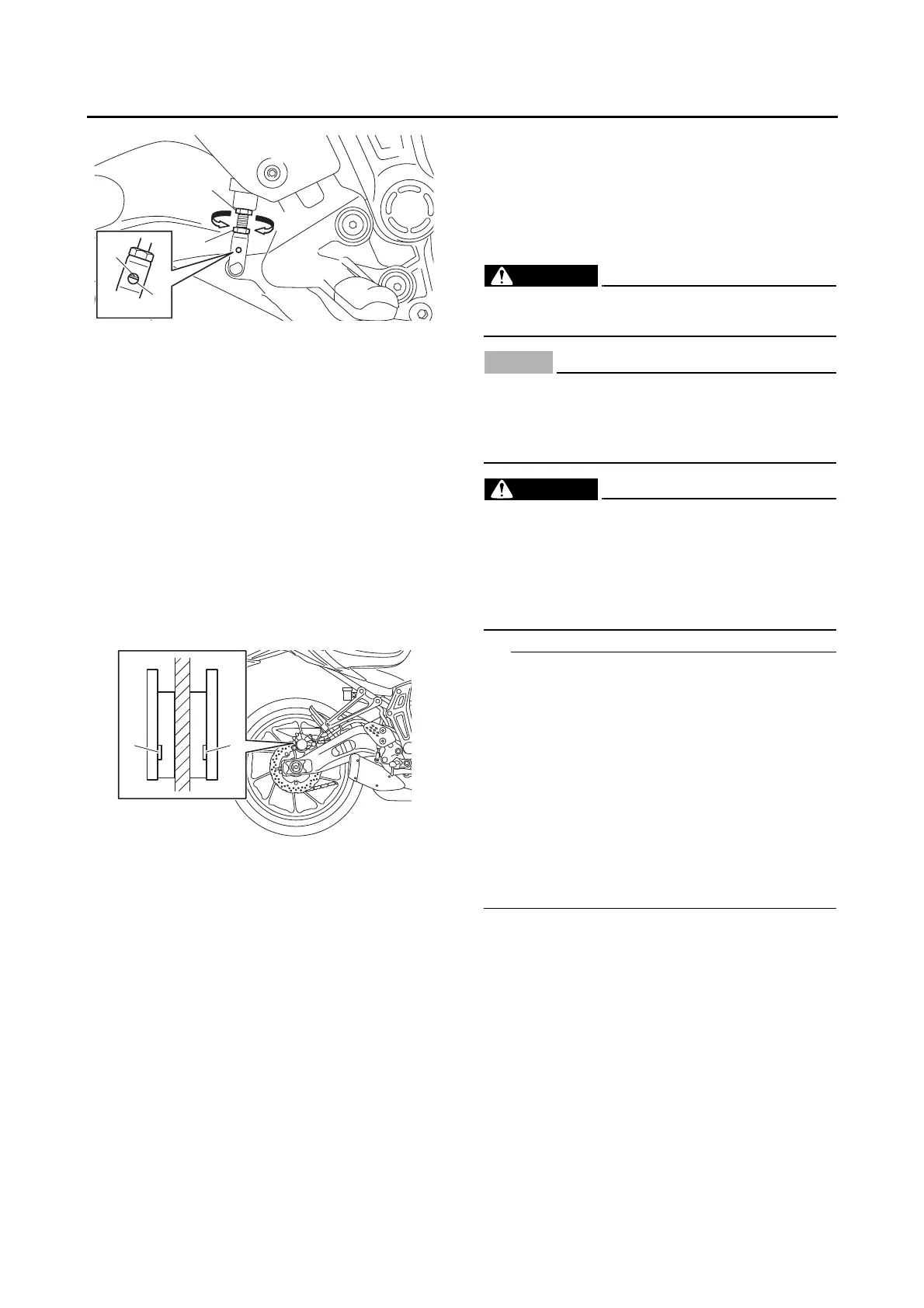

Wear indicators “1” almost touch the brake
disc → Replace the brake pads as a set.
Refer to “REAR BRAKE” on page 4-49.
EAS30894
CHECKING THE BRAKE HOSES
The following procedure applies to all of the
brake hoses and brake hose holders.
1. Check:
• Brake hoses
Cracks/damage/wear → Replace.
2. Check:
• Brake hose holders
Loose → Tighten the holder bolts.
3. Hold the vehicle upright and apply the brake
several times.
4. Check:
• Brake hose
Brake fluid leakage → Replace the damaged
hose.
Refer to “FRONT BRAKE” on page 4-35,
“REAR BRAKE” on page 4-49 and “ABS (AN-
TI-LOCK BRAKE SYSTEM )” on page 4-62.
EAS30893
BLEEDING THE HYDRAULIC BRAKE
SYSTEM (ABS)
EWA14000
Always bleed the brake system when the
brake related parts are removed.
ECA18050
• Bleed the brake system in the following or-
der.
• 1st step: Front brake calipers
• 2nd step: Rear brake caliper
EWA16530
Bleed the ABS whenever:
• the system is disassembled.
• a brake hose is loosened, disconnected or
replaced.
• the brake fluid level is very low.
• brake operation is faulty.
• Be careful not to spill any brake fluid or allow
the brake master cylinder reservoir or brake
fluid reservoir to overflow.
• When bleeding the ABS, make sure that there
is always enough brake fluid before applying
the brake. Ignoring this precaution could allow
air to enter the ABS, considerably lengthening
the bleeding procedure.
• If bleeding is difficult, it may be necessary to let
the brake fluid settle for a few hours.
• Repeat the bleeding procedure when the tiny
bubbles in the hose have disappeared.
1. Bleed:
•ABS
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Fill the brake master cylinder reservoir or
brake fluid reservoir to the proper level with
the specified brake fluid.
b. Install the diaphragm (brake master cylinder
reservoir or brake fluid reservoir).
c. Connect a clear plastic hose “1” tightly to the
bleed screw “2”.
