GENERAL CHASSIS (5)
4-14
EAS20158
GENERAL CHASSIS (5)

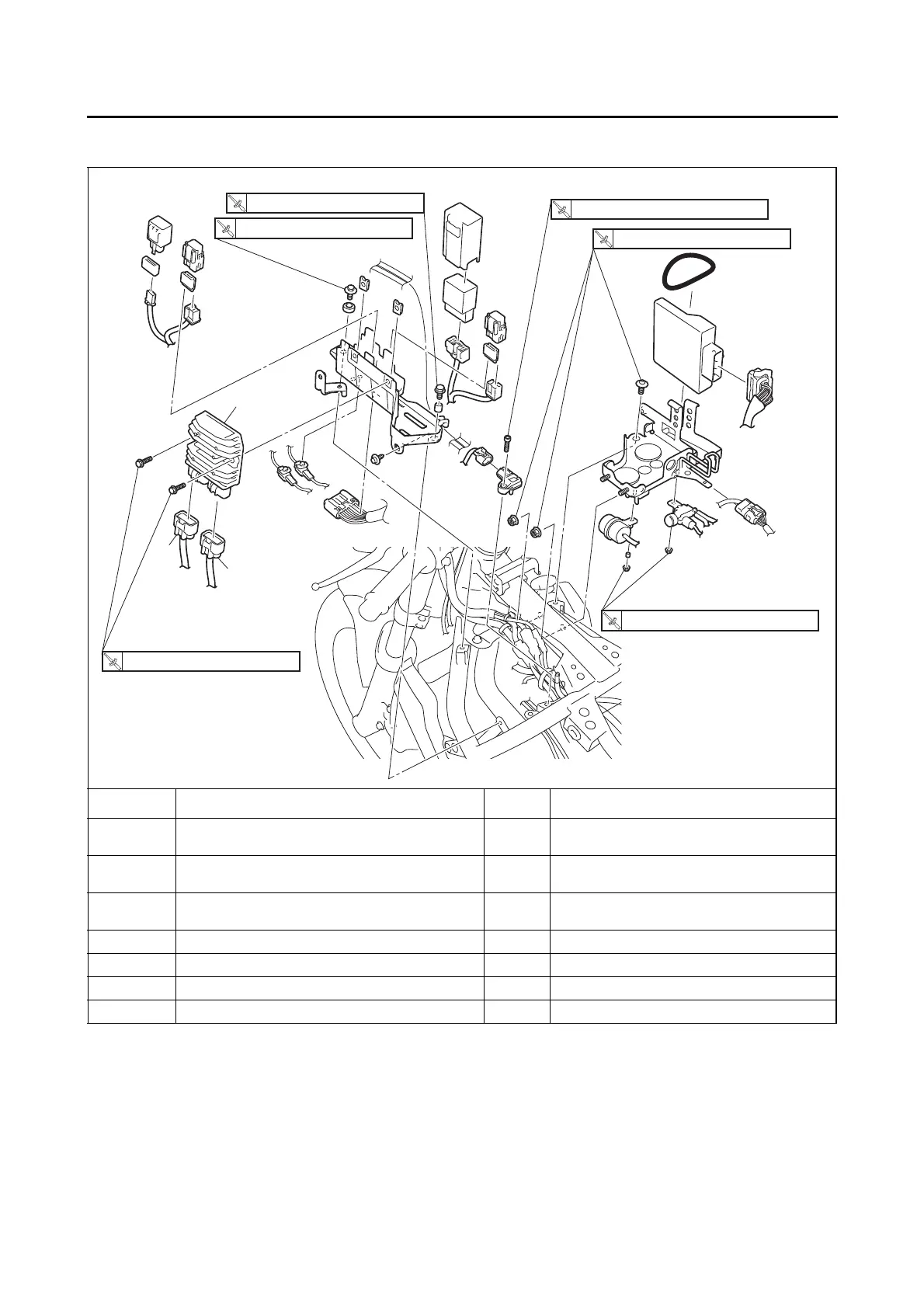

Removing the electrical components tray
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank top cover/Fuel tank covers/Fuel tank
center cover/Fuel tank front cover
Refer to “GENERAL CHASSIS (4)” on page
4-11.
Hydraulic unit assembly
Refer to “ABS (ANTI-LOCK BRAKE SYS-
TEM)” on page 4-62.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Stator coil coupler 1
2 Rectifier/regulator coupler 1 Disconnect.
3 Rectifier/regulator 1
7 Nm (0.7 m•kgf, 5.1 ft•Ibf)
T
.
R.
7 Nm (0.7 m•kgf, 5.1 ft•Ibf)
T.R.
7 Nm (0.7 m•kgf, 5.1 ft•Ibf)
T.R.
7 Nm (0.7 m•kgf, 5.1 ft•Ibf)
T
.R.
3.8 Nm (0.38 m•kgf, 2.8 ft•Ibf)
T
.
R.
3.8 Nm (0.38 m•kgf, 2.8 ft•Ibf)
T.
R.
1
2
3
To Next Page
