Yamaha 2014 MT-07 Service Manual

CRANKCASE
5-73
NOTICE
ECA20890
Do not use a torque wrench to tighten the
bolt to the specified angle.
TIP
Tighten the bolts in the tightening sequence cast
on the crankcase.

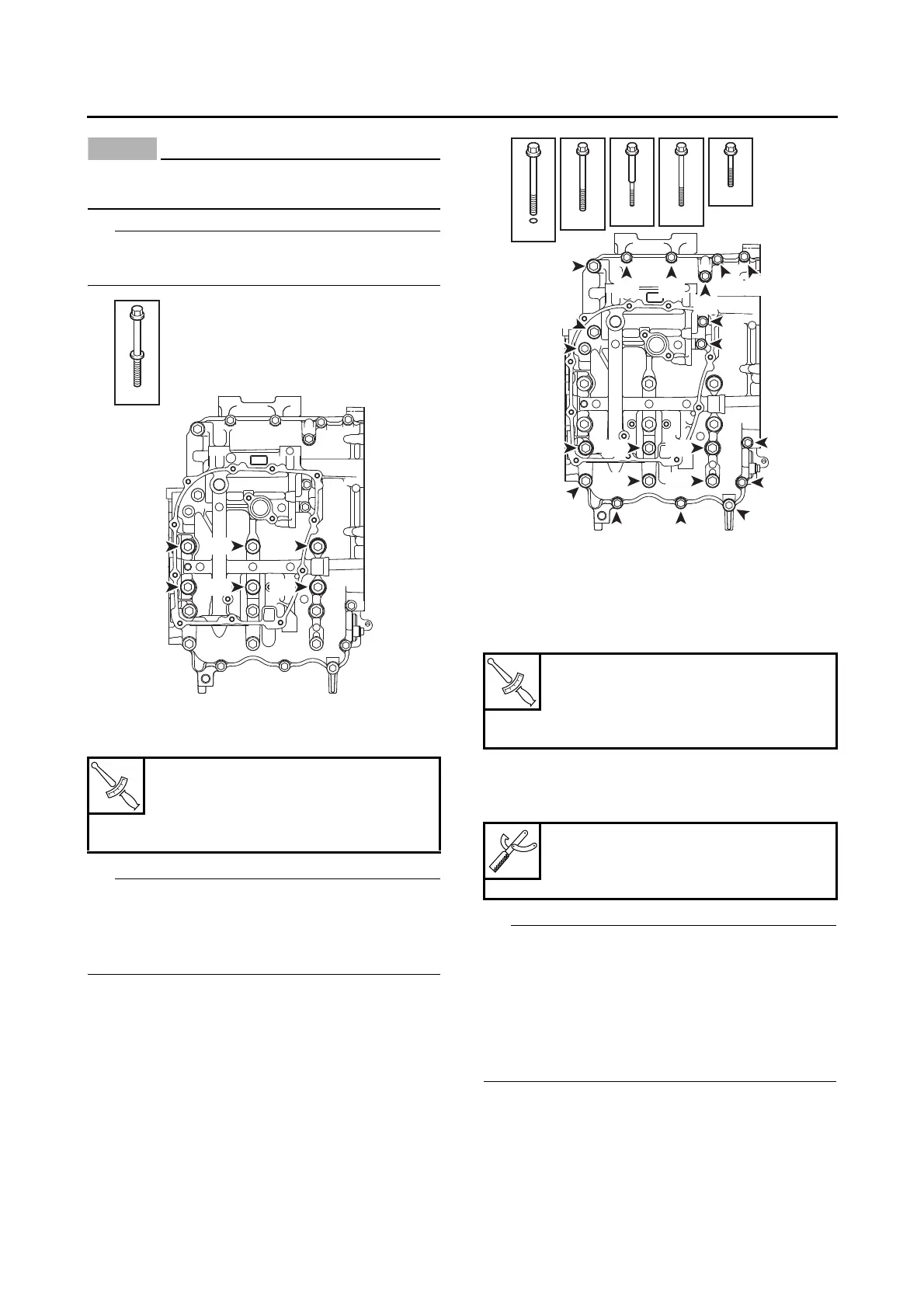

8. Tighten:
• Crankcase bolts “7”–“27”
TIP
• Tighten the bolts “7”–“16” in the tightening se-
quence cast on the crankcase.
• Tighten the bolts “17”–“27” in any tightening
sequence using a crisscross pattern.
EAS31071
INSTALLING THE OIL PRESSURE SWITCH
1. Install:
• Oil pressure switch “1”
• Oil pressure switch lead “2”
2. Apply:
• Sealant
(onto the oil pressure switch threads)
TIP
• Apply Three bond No.1215® to the threads “a”
of the oil pressure switch. However, do not ap-
ply Three bond No.1215® to the portion “b” of
the oil pressure switch.
• Install the oil pressure switch lead so that it is
routed within the range shown in the illustra-
tion.
T
R
.
.
Crankcase bolts “7”–“14”
24 Nm (2.4 m·kgf, 17 ft·lbf)
Crankcase bolts “15”–“27”
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
×6
5
4
1
2
6
3
T
R
.
.
Oil pressure switch
15 Nm (1.5 m·kgf, 11 ft·lbf)
Oil pressure switch lead bolt
1.8 Nm (0.18 m·kgf, 1.3 ft·lbf)
Yamaha bond No. 1215
90890-85505
(Three bond No.1215®)
×8
×3
×2
×2
×6
11
10
7
8
13
16
12
9
20
19
15
21
22
17
18
14
26 27
2423
25
