Yamaha 2014 MT-07 Service Manual

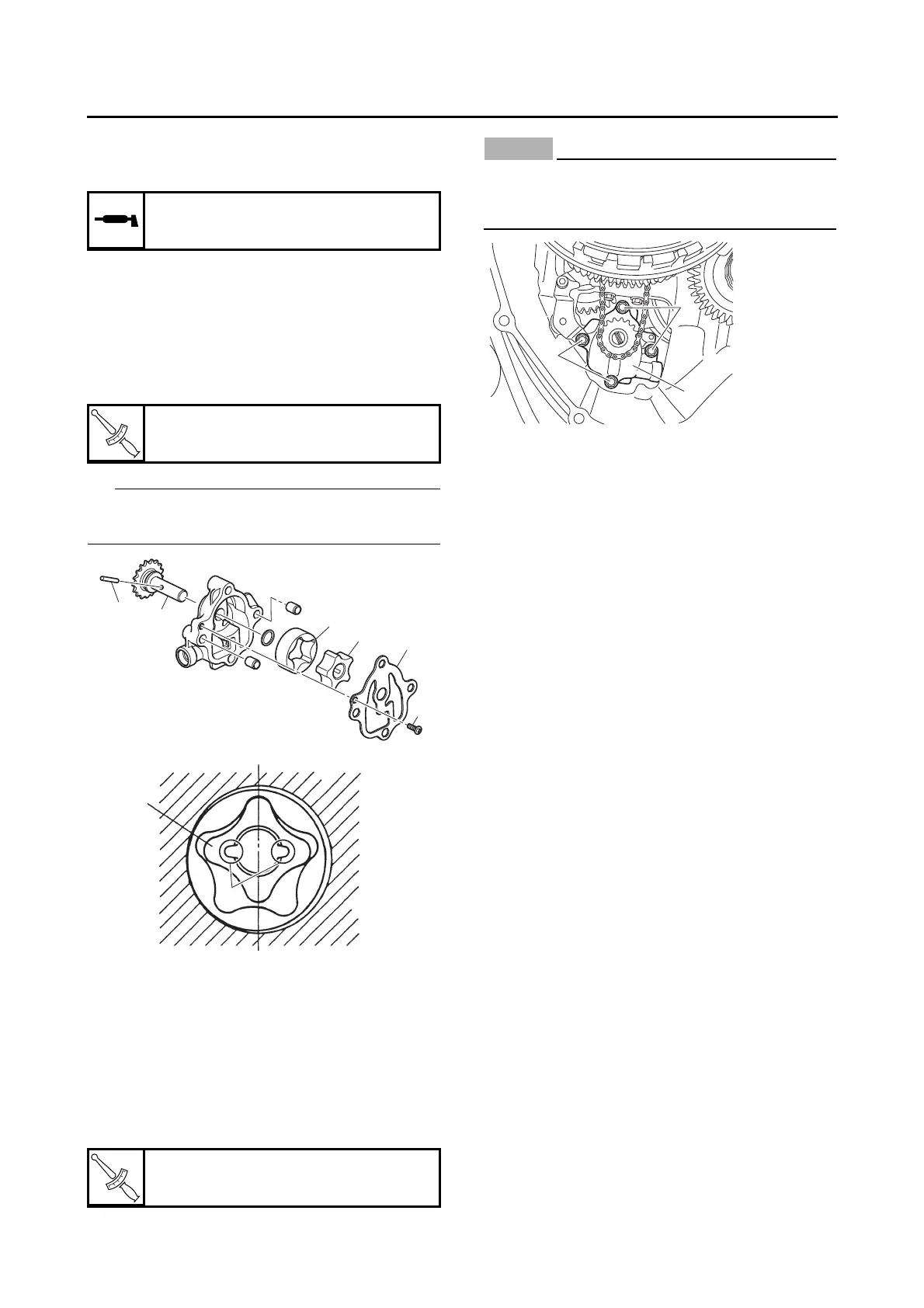

OIL PUMP
5-66
2. Lubricate:
• Oil pump driven sprocket
(with the recommended lubricant)
3. Install:
• Oil pump driven sprocket “1”
•Pin “2”
• Outer rotor “3”
• Inner rotor “4”
• Oil pump cover “5”
• Oil pump cover screw “6”
TIP
Align the pin in the oil pump shaft with the
grooves “a” in the inner rotor.
4. Check:
• Oil pump operation
Refer to “CHECKING THE OIL PUMP” on
page 5-65.
EAS30343
INSTALLING THE OIL PUMP
1. Install:
• Oil pump “1”
• Oil pump bolts “2”
NOTICE
ECA20940
After installing the oil pump drive chain and
driven sprocket, make sure the oil pump
turns smoothly.
Recommended lubricant
Engine oil
T
R
.
.
Oil pump cover screw
3.8 Nm (0.38 m·kgf, 2.8 ft·lbf)
T
R
.
.
Oil pump bolt
12 Nm (1.2 m·kgf, 8.7 ft·lbf)
4
3
1
2
5
6
a
4
1
2
2
