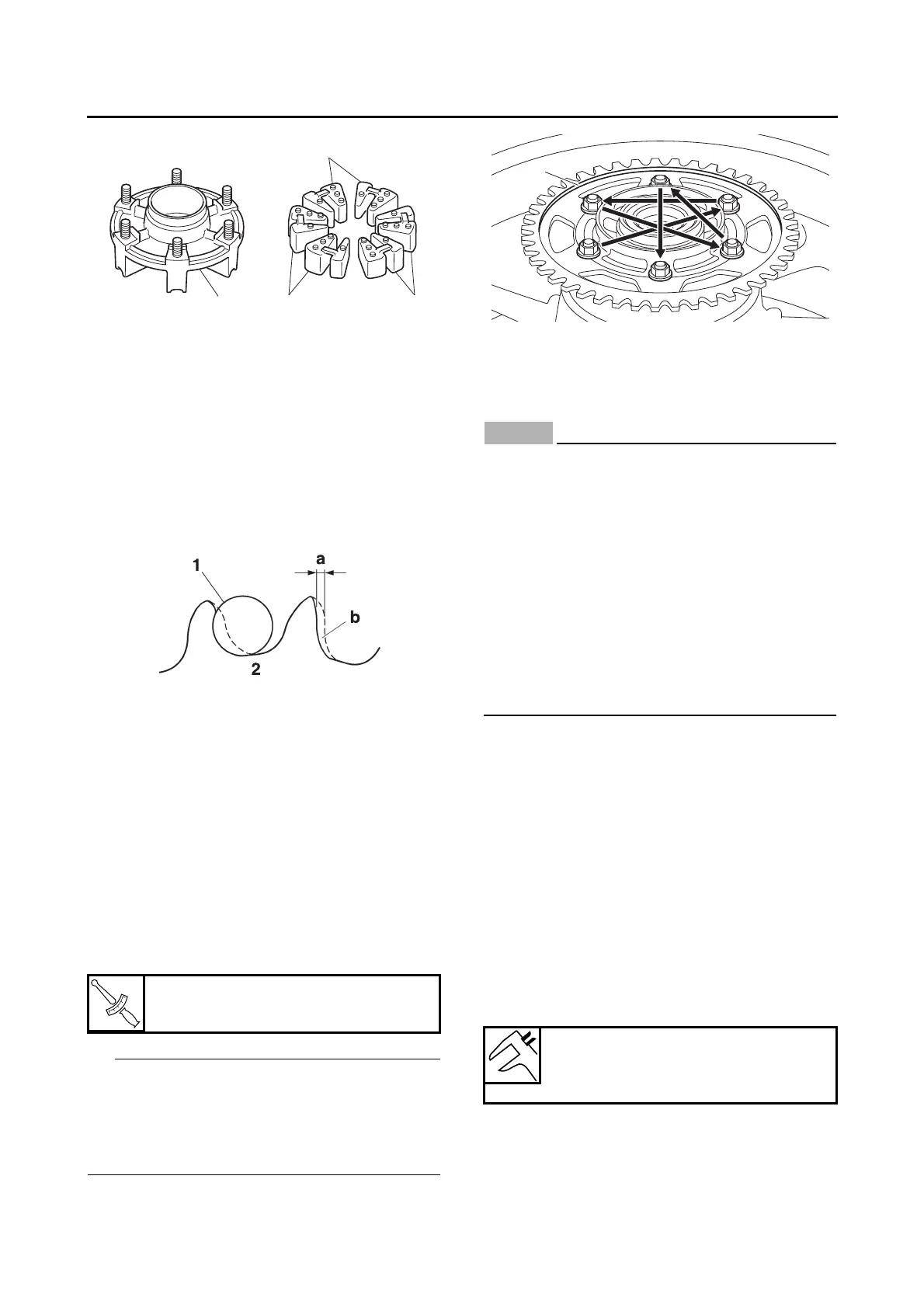

REAR WHEEL
4-31
EAS30161
CHECKING AND REPLACING THE REAR
WHEEL SPROCKET
1. Check:
• Rear wheel sprocket
More than 1/4 tooth “a” wear → Replace the
drive chain sprockets as a set.
Bent teeth → Replace the drive chain sprock-
ets as a set.
2. Replace:
• Rear wheel sprocket
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the rear wheel sprocket nuts, brack-
et, and the rear wheel sprocket.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact the
sprocket.
c. Install a new rear wheel sprocket.
• Install the rear wheel sprocket so that the
stepped side “a” of the sprocket faces away
from the hub.
• Tighten the rear wheel sprocket nuts in stages
and in a crisscross pattern.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS30167
MAINTENANCE OF THE REAR WHEEL
SENSOR AND SENSOR ROTOR
ECA21060
• Handle the ABS components with care
since they have been accurately adjusted.
Keep them away from dirt and do not sub-
ject them to shocks.
• The rear wheel sensor cannot be disassem-
bled. Do not attempt to disassemble it. If
faulty, replace with a new one.
• Keep any type of magnets (including mag-
netic pick-up tools, magnetic screwdrivers,
etc.) away from the rear wheel sensor or
rear wheel sensor rotor.
• Do not drop or shock the wheel sensor or
the wheel sensor rotor.
1. Check:
• Rear wheel sensor
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR”
on page 4-21.
2. Check:
• Rear wheel sensor rotor
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR”
on page 4-21.
3. Measure:
• Wheel sensor rotor deflection
Refer to “MAINTENANCE OF THE FRONT
WHEEL SENSOR AND SENSOR ROTOR”
on page 4-21.
b. Correct
1. Drive chain roller
2. Rear wheel sprocket
Rear wheel sprocket nut
80 Nm (8.0 m·kgf, 58 ft·lbf)
Wheel sensor rotor deflection
limit
0.25 mm (0.0098 in)
To Next Page
