Yamaha 2014 MT-07 Service Manual

FRONT BRAKE
4-45
EAS30174
ASSEMBLING THE FRONT BRAKE
CALIPERS
WARNING
EWA13621
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents as they will cause the brake caliper
piston dust seals and brake caliper piston
seals to swell and distort.
• Whenever a brake caliper is disassembled,
replace the brake caliper piston dust seals
and brake caliper piston seals.
EAS30175

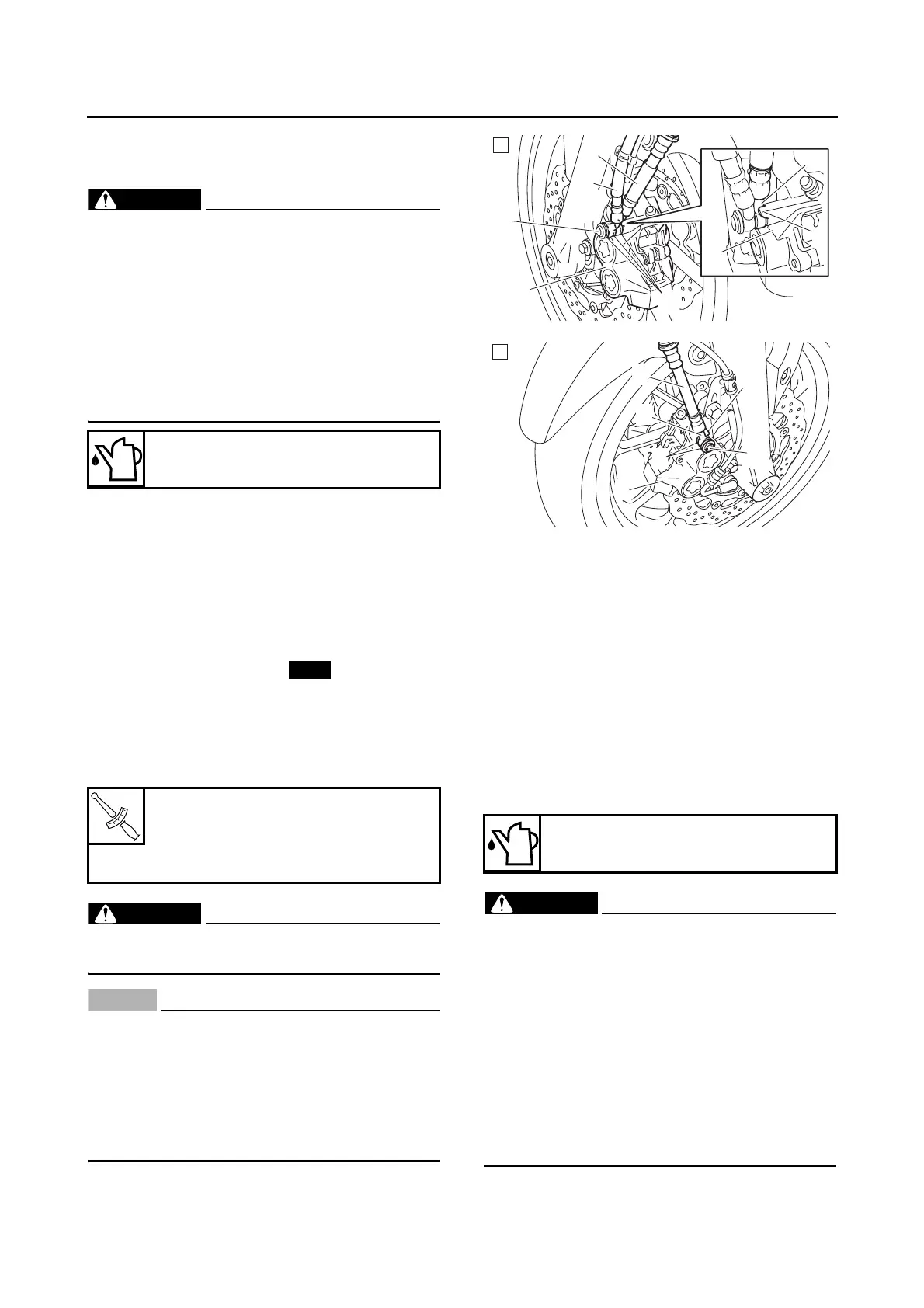

INSTALLING THE FRONT BRAKE CALIPERS
The following procedure applies to both of the
brake calipers.
1. Install:
• Front brake caliper “1”
• Front wheel sensor lead holders
(right side only)
• Brake hose gaskets “2”
• Brake hose (hydraulic unit to left front brake
caliper) “3”
• Brake hose (left front brake caliper to right
front brake caliper) “4”
• Brake hose union bolt “5”
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation.
NOTICE
ECA20851
• When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” touches the projection “b” on the brake
caliper.
• There should be 0.5–1.5 mm (0.020–0.059
in) of clearance between the brake pipes.
(Left side only)
2. Install:
• Brake pads
• Brake pad spring
• Brake pad pin
• Brake pad clips
Refer to “REPLACING THE FRONT BRAKE
PADS” on page 4-42.
3. Fill:
• Brake master cylinder reservoir
(with the specified amount of the specified
brake fluid)
WARNING
EWA13090
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
Specified brake fluid
DOT 4
T
R
.
.
Front brake caliper bolt
40 Nm (4.0 m·kgf, 29 ft·lbf)
Front brake hose union bolt
30 Nm (3.0 m·kgf, 22 ft·lbf)
New
A. Left side
B. Right side
Specified brake fluid
DOT 4
5
1
3
2
4
A
1
a
b
1
a
b
2
4
5
B

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
