Yamaha 2014 MT-07 Service Manual

OIL COOLER
6-4
EAS20064

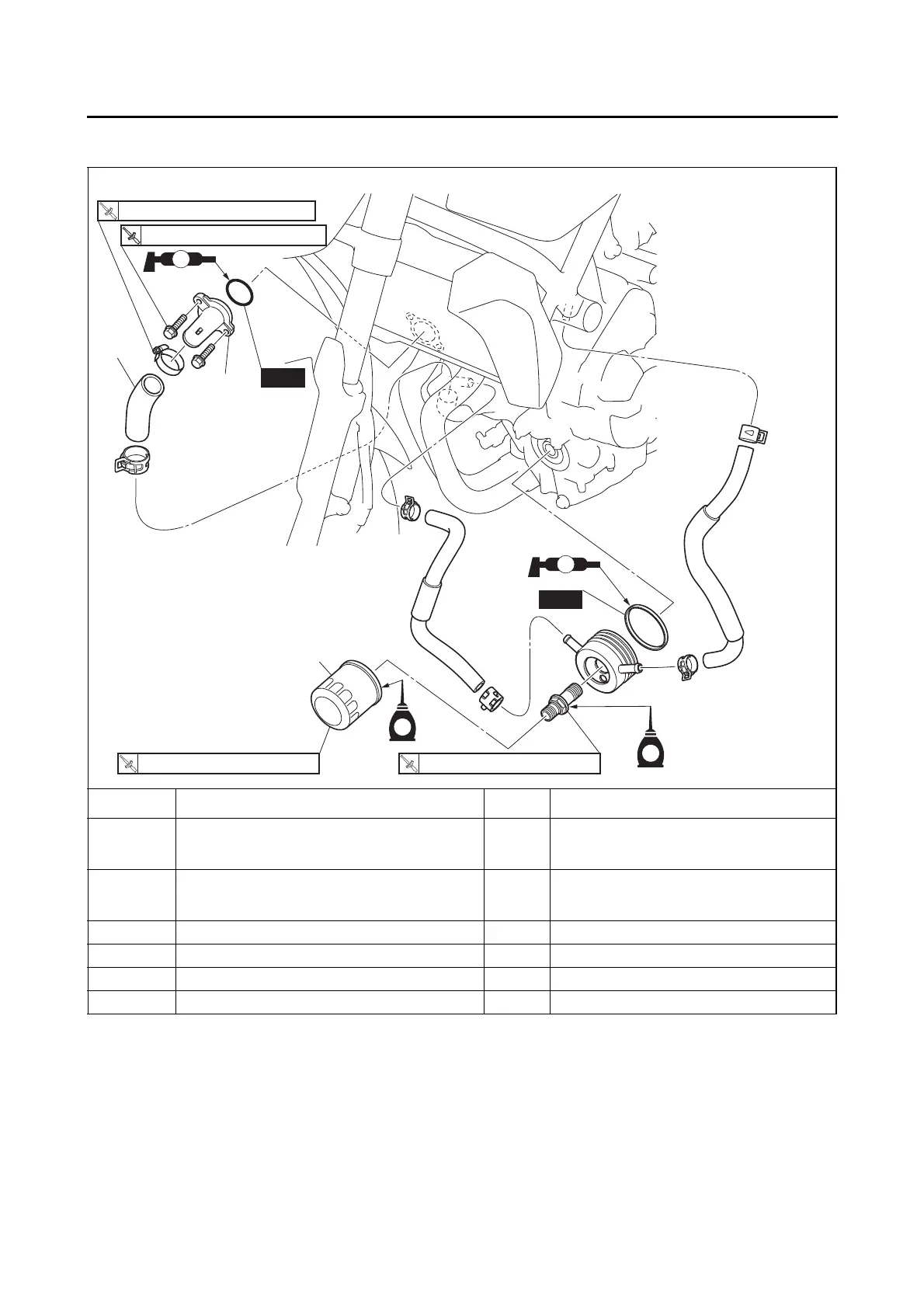

OIL COOLER
Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-24.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-22.
Coolant reservoir Refer to “RADIATOR” on page 6-1.
1 Oil filter cartridge 1
2 Water jacket joint 1
3 Water jacket joint inlet hose 1
LS
New
New
E
E
LS
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
2.0 Nm (0.20 m
•
kgf, 1.4 ft
•
Ibf)
T
.R.
40 Nm (4.0 m
•
kgf, 29 ft
•
Ibf)
T
.
R.
17 Nm (1.7 m
•
kgf, 12 ft
•
Ibf)
T
.R
.
3
2
1

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
