PERIODIC MAINTENANCE
3-22
4. Start the engine, warm it up for several min-
utes, and then turn it off.
5. Check the engine oil level again.
Before checking the engine oil level, wait a few
minutes until the oil has settled.
EAS30657

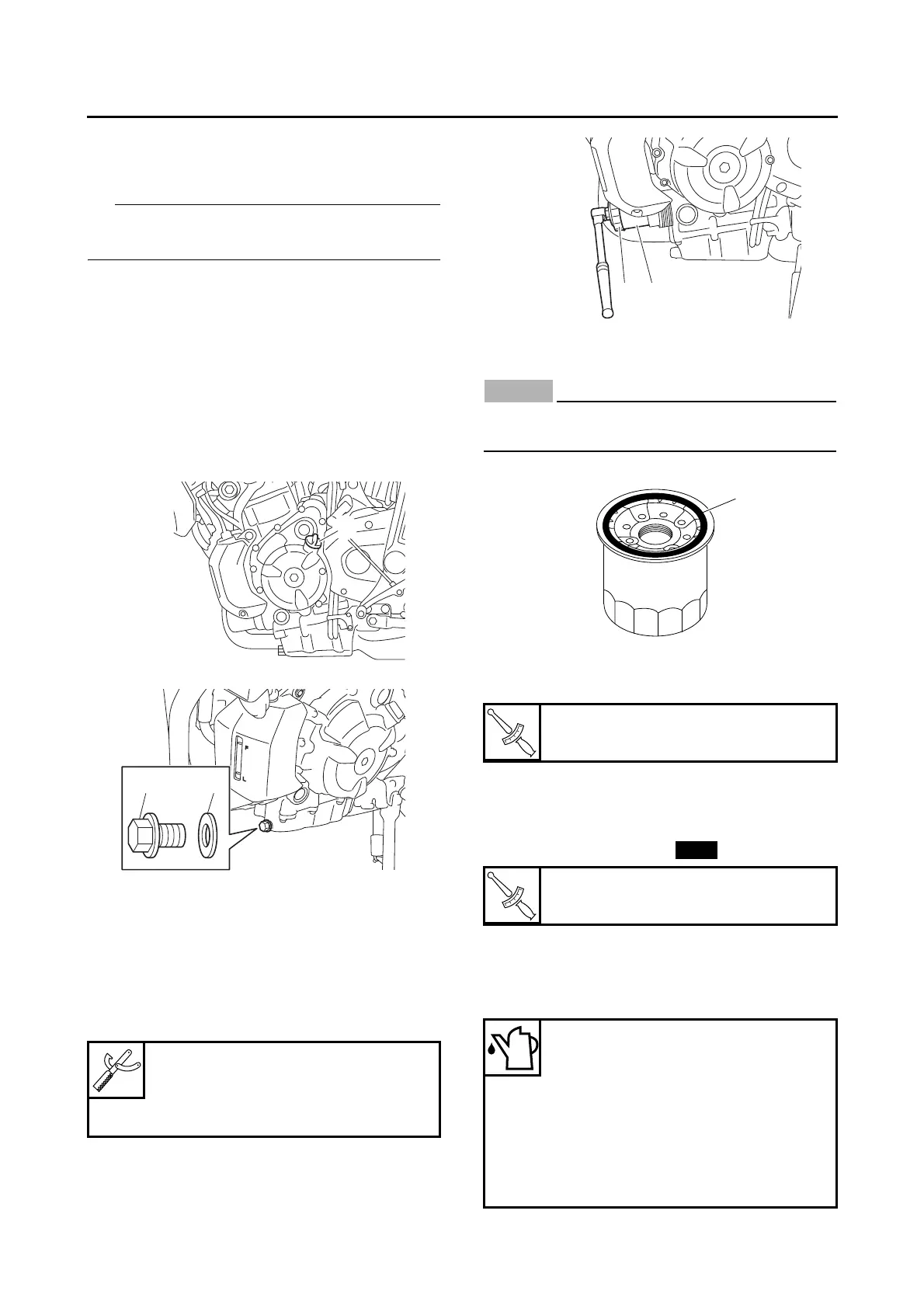

CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place a container under the engine oil drain
bolt.
3. Remove:
• Engine oil filler cap “1”
• Engine oil drain bolt “2”
(along with the gasket “3”)
4. Drain:
• Engine oil
(completely from the oil pan)
5. If the oil filter cartridge is also to be replaced,
perform the following procedure.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the oil filter cartridge “1” with an oil
filter wrench “2”.
b. Lubricate the O-ring “3” of the new oil filter
cartridge with a thin coat of engine oil.
ECA13390
Make sure the O-ring “3” is positioned cor-
rectly in the groove of the oil filter cartridge.
c. Tighten the new oil filter cartridge to specifi-
cation with an oil filter wrench.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
6. Install:
• Engine oil drain bolt
(along with the gasket )
7. Fill:
• Oil pan
(with the specified amount of the recom-
mended engine oil)
Oil filter wrench
90890-01426
Oil filter wrench
YU-38411
Oil filter cartridge
17 Nm (1.7 m·kgf, 12 ft·lbf)
Engine oil drain bolt
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil quantity
Quantity (disassembled)
3.00 L (3.17 US qt, 2.64 Imp.qt)
Without oil filter cartridge re-
placement
2.30 L (2.43 US qt, 2.02 Imp.qt)
With oil filter cartridge replace-
ment
2.60 L (2.75 US qt, 2.29 Imp.qt)
