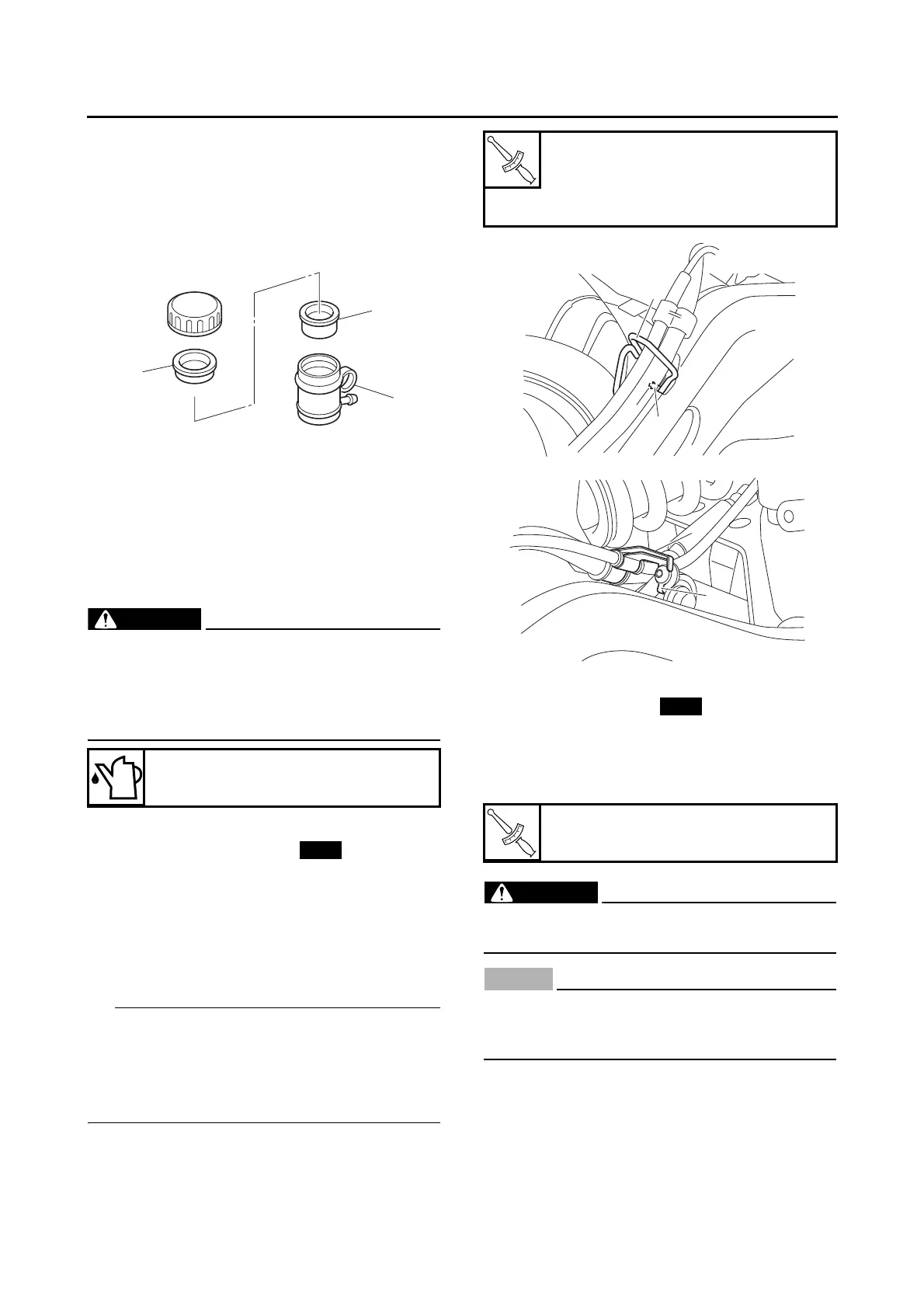

Yamaha 2014 MT-07 Service Manual

REAR BRAKE
4-60
3. Check:
• Brake fluid reservoir “1”
• Brake fluid reservoir diaphragm holder “2”
Cracks/damage → Replace.
• Brake fluid reservoir diaphragm “3”
Damage/wear → Replace.
4. Check:
• Brake hose
• Brake fluid reservoir hose
Cracks/damage → Replace.
EAS30195
ASSEMBLING THE REAR BRAKE MASTER
CYLINDER
WARNING
EWA13520
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents.
1. Install:
• Brake master cylinder kit
EAS30196
INSTALLING THE REAR BRAKE MASTER
CYLINDER
1. Install:
• Rear brake hose/lead guide “1”
• Rear brake hose/lead holder “2”
TIP
• Fit the projection “a” on the rear brake
hose/lead guide into the hole “b” in the swing-
arm.
• Make sure that the projection “c” on the rear
brake hose/lead holder contacts the swingarm.
2. Install:
• Brake hose gaskets
• Brake hose (rear brake master cylinder to hy-
draulic unit)
• Brake hose union bolt
• Brake fluid reservoir hose
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation.
NOTICE
ECA14160
When installing the brake hose onto the
brake master cylinder, make sure the brake
pipe touches the projection “a” as shown.
Specified brake fluid
DOT 4
2
3
1
New
T
R
.
.
Rear brake hose/lead guide bolt
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Rear brake hose/lead holder bolt
5 Nm (0.5 m·kgf, 3.6 ft·lbf)
T
R
.
.
Rear brake hose union bolt
30 Nm (3.0 m·kgf, 22 ft·lbf)
a
b
1
2
c
New
