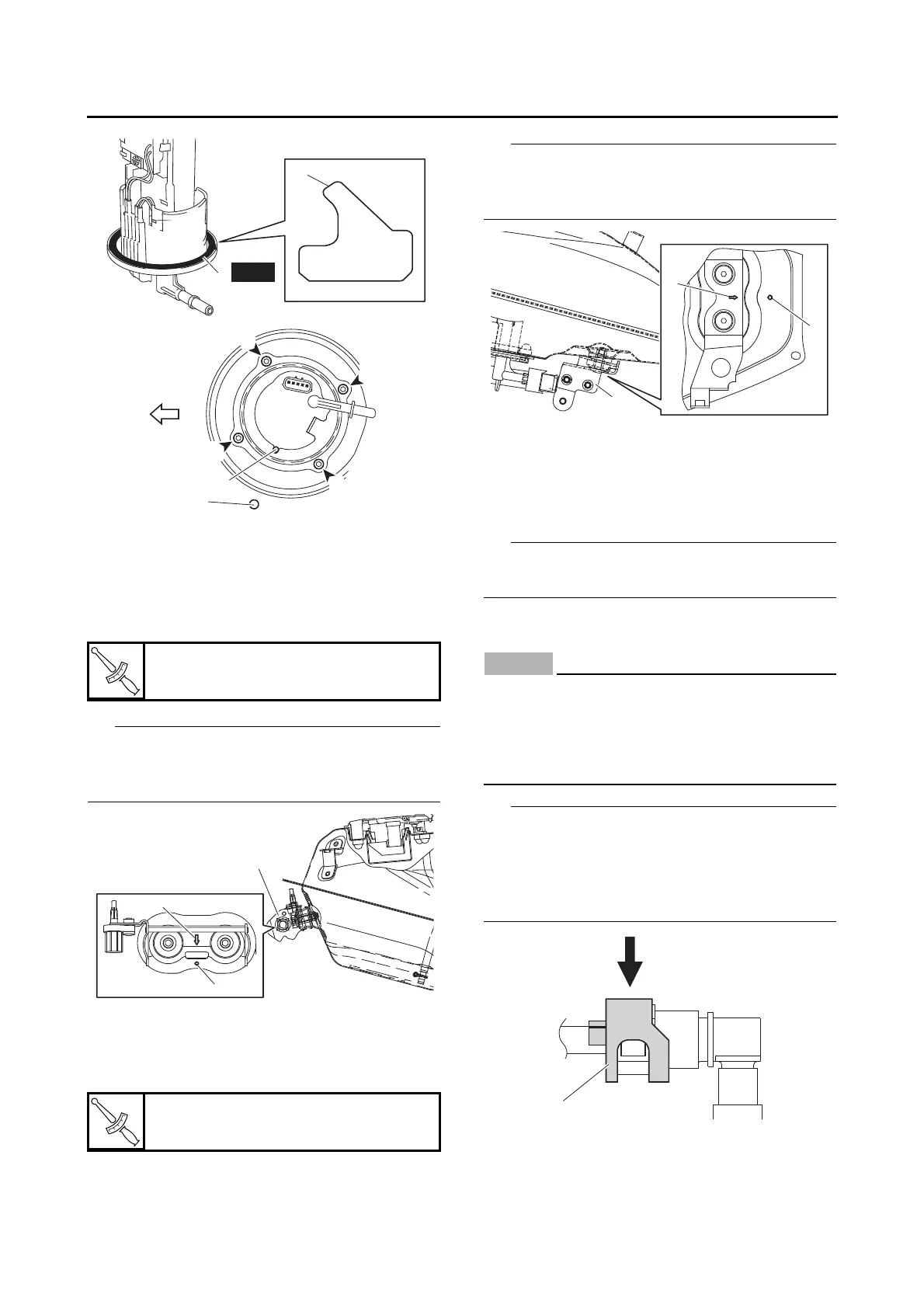

FUEL TANK
7-4
EAS31081
INSTALLING THE FUEL TANK BRACKET
1. Install:
•Grommets
• Collars
• Front fuel tank bracket “1”
TIP
Make sure that the arrow mark “a” on the front
fuel tank bracket points toward the hole “b” in the
fuel tank.
2. Install:
•Grommets
• Collars
• Rear fuel tank bracket “1”
TIP
Make sure that the arrow mark “a” on the rear
fuel tank bracket points toward the punch mark
“b” on the fuel tank.
EAS30457
INSTALLING THE FUEL TANK
1. Tighten:
• Front fuel tank bracket bolt
(temporarily)
TIP
Temporarily tighten the front fuel tank bracket
bolt.
2. Install:
• Fuel hose
NOTICE
ECA18420
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose connector cover on the fuel hose is in
the correct position; otherwise, the fuel hose
will not be properly installed.
TIP
• Install the fuel hose securely onto the fuel rail
and fuel pump until a distinct “click” is heard.
• To install the fuel hose, slide the fuel hose con-
nector cover “1” on each end of the hose in the
direction of the arrow shown.
3. Connect:
• Fuel pump coupler
• Fuel tank breather hose
• Fuel tank overflow hose
T
R
.
.
Fuel tank bolt (front side)
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
T
R
.
.
Fuel tank bolt (rear side)
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1
a
New
FWD
1
4
2
b
c
3
b
a
1
b
a
1
1
