Yamaha 2014 MT-07 Service Manual

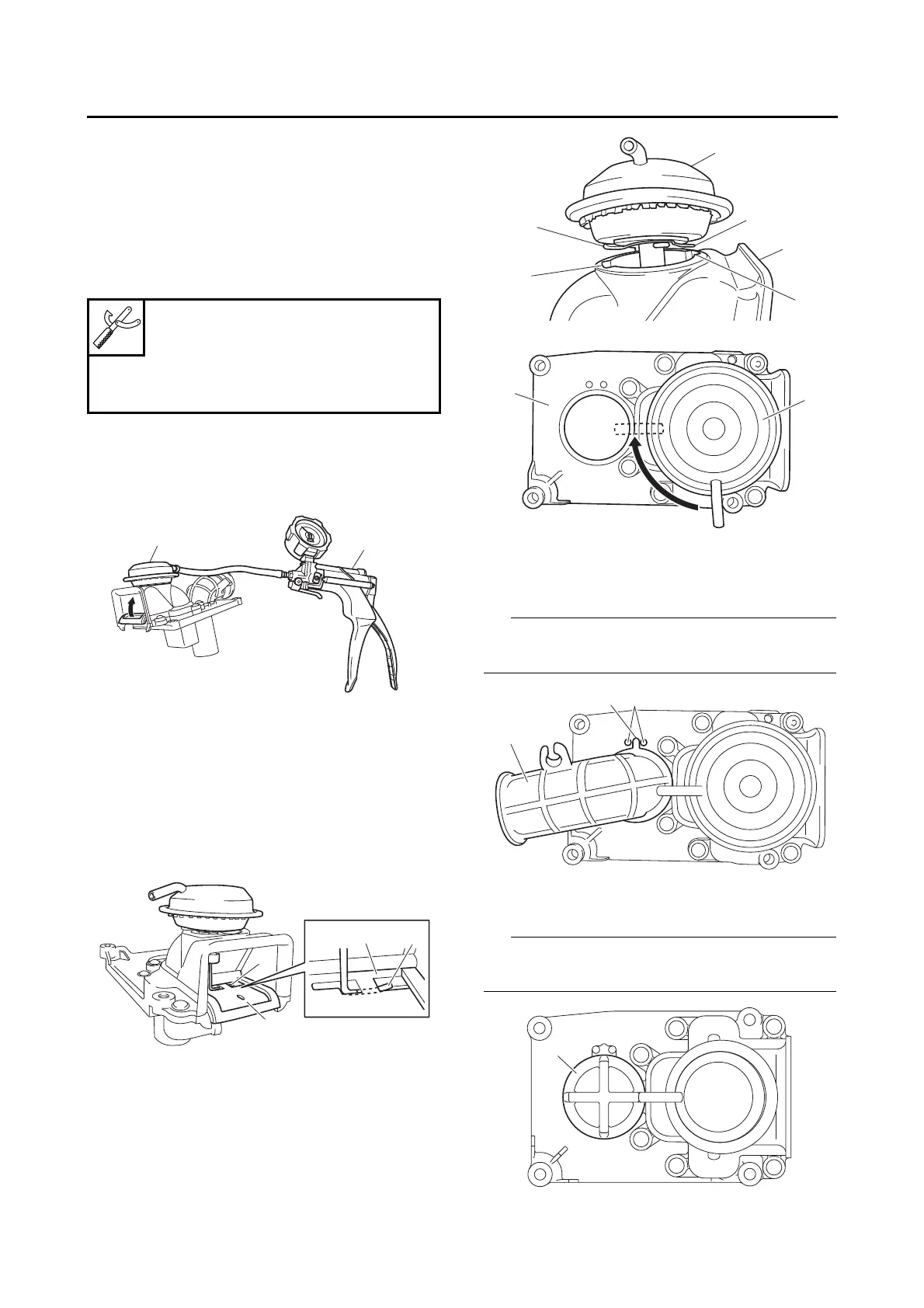

AIR FILTER CASE VALVE
7-8
EAS31090
CHECKING THE AIR FILTER CASE VALVE
1. Check:
• Air filter case valve operation
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the air duct bracket (with the air filter
case valve).
b. Connect the vacuum/pressure pump gauge
set “1” to the air filter case valve “2”.
c. Check that the air filter case valve operates
when vacuum pressure is applied to the valve
using the vacuum/pressure pump gauge set.
Faulty → Replace the air filter case valve.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS31091
INSTALING THE AIR FILTER CASE VALVE
1. Install:
• Air filter case valve
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Hook the end of the shaft “a” onto the plate
“1” as shown.
b. Align the tabs “b” on the air filter case valve
“2” with the cutouts “c” in the air duct bracket
“3”, and then turn the air filter case valve 90°
clockwise.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Install: (1XB1, 1XB5, 1XB6)
• Air duct “1”
TIP
Align the tab “a” on the air duct between the pro-
jections “b” on the air duct bracket.
3. Install: (1XB2, 1XB7, 1XB8)
• Plug “1”
TIP
Install the plug to the air duct bracket so that the
side with the intersecting ribs is facing outward.
Vacuum/pressure pump gauge
set
90890-06756
Mityvac brake bleeding tool
YS-42423
2
1
a
a
1
1
2
3
b
b
c
c
3
2
ba
1
1

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
