FUEL TANK
7-3
EAS30450
REMOVING THE FUEL TANK
1. Extract the fuel in the fuel tank through the
fuel tank cap with a pump.
2. Remove:
• Fuel hose
EWA17320
Cover fuel hose connections with a cloth
when disconnecting them. Residual pres-
sure in the fuel lines could cause fuel to
spurt out when removing the hose.
ECA20020
Although the fuel has been removed from
the fuel tank, be careful when removing the
fuel hose, since there may be fuel remaining
in it.

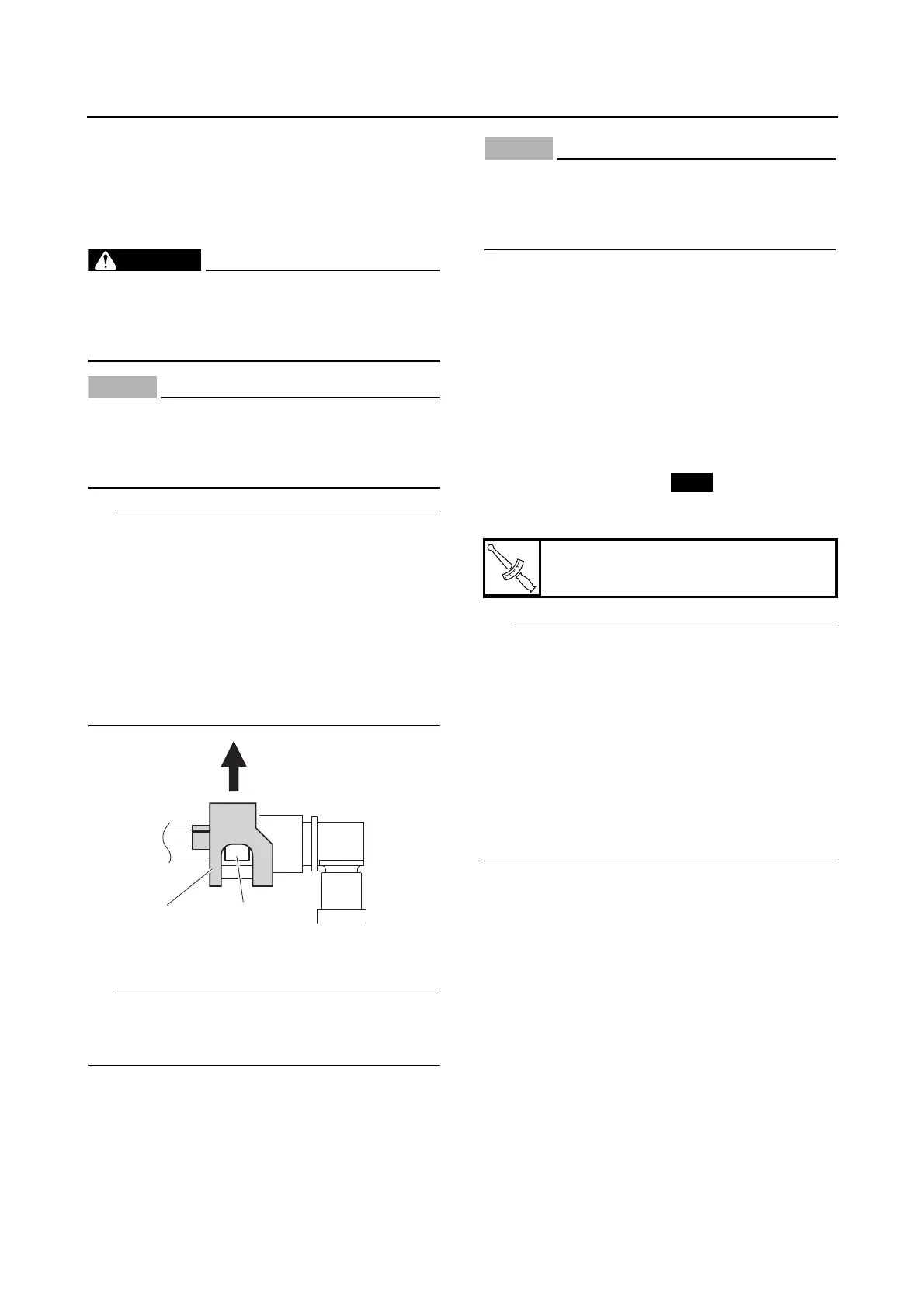

• To remove the fuel hose from the fuel rail and
fuel pump, slide the fuel hose connector cover
“1” on the end of the hose in the direction of the
arrow shown, press the two buttons “2” on the
sides of the connector, and then remove the
hose.
• Remove the fuel hose manually without using
any tools.
• Before removing the hose, place a few rags in
the area under where it will be removed.
3. Remove:
• Fuel tank
Do not set the fuel tank down on the installation
surface of the fuel pump. Be sure to lean the fuel
tank against a wall or the like.
EAS30451
REMOVING THE FUEL PUMP
1. Remove:
• Fuel pump
ECA14720
• Do not drop the fuel pump or give it a
strong shock.
• Do not touch the base section of the fuel
sender.
EAS30454
CHECKING THE FUEL PUMP BODY
1. Check:
• Fuel pump body
Obstruction → Clean.
Cracks/damage → Replace fuel pump as-
sembly.
EAS30456
INSTALLING THE FUEL PUMP
1. Install:
• Fuel pump gasket “1”
• Fuel pump
• Fuel pump bracket
• Do not damage the installation surfaces of the
fuel tank when installing the fuel pump.
• Always use a new fuel pump gasket.
• The gasket lip “a” shall face toward the fuel
tank.
• Align the projection “b” on the fuel pump with
the punch mark “c” on the fuel tank.
• Align the slot in the fuel pump bracket with the
projection “b” on the fuel pump.
• Tighten the fuel pump bolts in the proper tight-
ening sequence as shown.
Fuel pump bolt
4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
