REAR BRAKE
4-49
EAS20031
REAR BRAKE

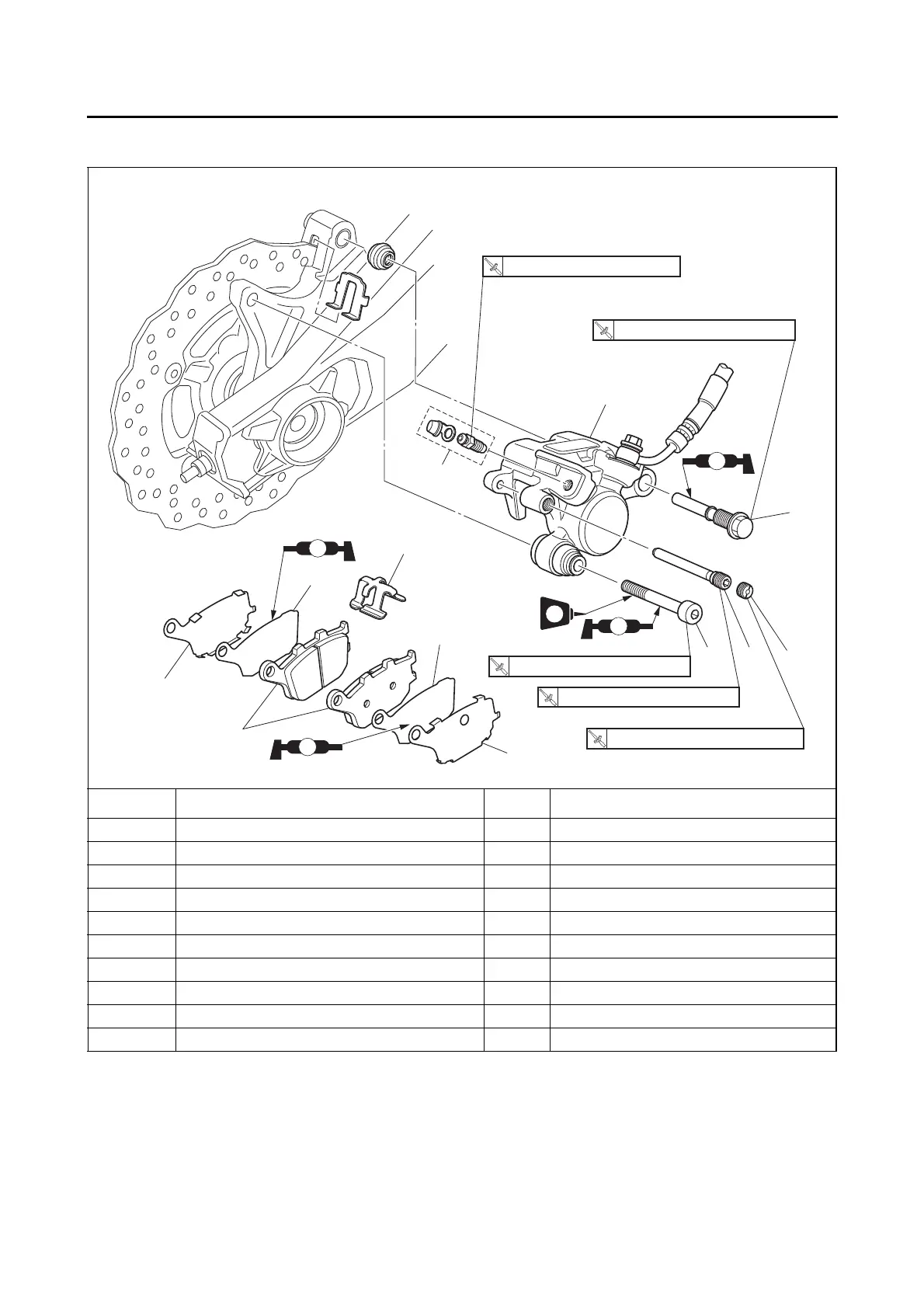

Removing the rear brake pads
Order Job/Parts to remove Q’ty Remarks
1 Screw plug 1
2 Brake pad retaining bolt 1
3 Rear brake caliper retaining bolt 1
4 Rear brake caliper bolt 1
5 Rear brake caliper 1
6Brake pad 2
7 Brake pad shim 2
8 Brake pad insulator 2
9 Brake pad spring 1
10 Brake caliper bleed screw 1
S
LT
S
S
S
1
2
4
3
5
10
9
8
8
7
6
7
2.5 Nm (0.25 m
•
kgf, 1.8 ft
•
Ibf)
T
.R
.
17 Nm (1.7 m
•
kgf, 12 ft
•
Ibf)
T
.R
.
22 Nm (2.2 m
•
kgf, 16 ft
•
Ibf)
T
.R
.
5 Nm (0.5 m
•
kgf, 3.6 ft
•
Ibf)
T
.R
.
27 Nm (2.7 m
•
kgf, 20 ft
•
Ibf)
T
.R
.
