Yamaha 2014 MT-07 Service Manual

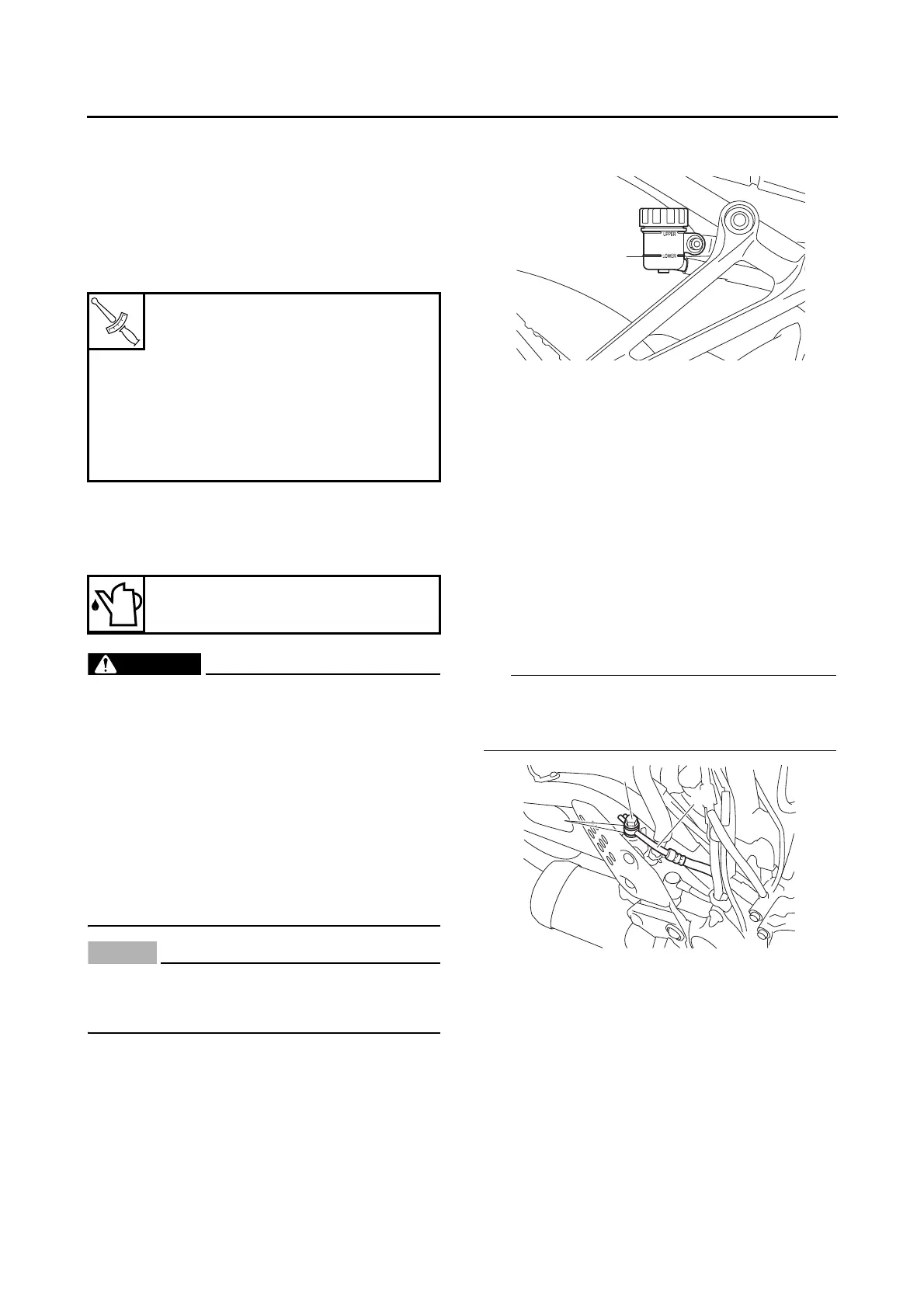

REAR BRAKE
4-59
• Brake pad shims
(onto the brake pads)
• Brake pad spring
(into the rear brake caliper)
• Brake pads
• Rear brake caliper
Refer to “REPLACING THE REAR BRAKE
PADS” on page 4-55.
4. Fill:
• Brake fluid reservoir
(with the specified amount of the specified
brake fluid)
WARNING
EWA13090
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
5. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
6. Check:
• Brake fluid level
Below the minimum level mark “a” → Add the
specified brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-15.
7. Check:
• Brake pedal operation
Soft or spongy feeling → Bleed the brake sys-
tem.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-14.
EAS30193
REMOVING THE REAR BRAKE MASTER
CYLINDER
1. Remove:
• Brake hose union bolt “1”
• Brake hose gaskets “2”
• Brake hose (rear brake master cylinder to hy-
draulic unit) “3”
TIP
To collect any remaining brake fluid, place a
container under the master cylinder and the end
of the brake hose.
EAS30194
CHECKING THE REAR BRAKE MASTER
CYLINDER
1. Check:
• Brake master cylinder
Damage/scratches/wear → Replace.
• Brake fluid delivery passages
(brake master cylinder body)
Obstruction → Blow out with compressed air.
2. Check:
• Brake master cylinder kit
Damage/scratches/wear → Replace.
T
R
.
.
Rear brake caliper bolt
22 Nm (2.2 m·kgf, 16 ft·lbf)
LOCTITE®
Rear brake caliper retaining bolt
27 Nm (2.7 m·kgf, 20 ft·lbf)
Brake pad retaining bolt
17 Nm (1.7 m·kgf, 12 ft·lbf)
Screw plug
2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Specified brake fluid
DOT 4
a
2
1
3

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
