Yamaha 2014 MT-07 Service Manual

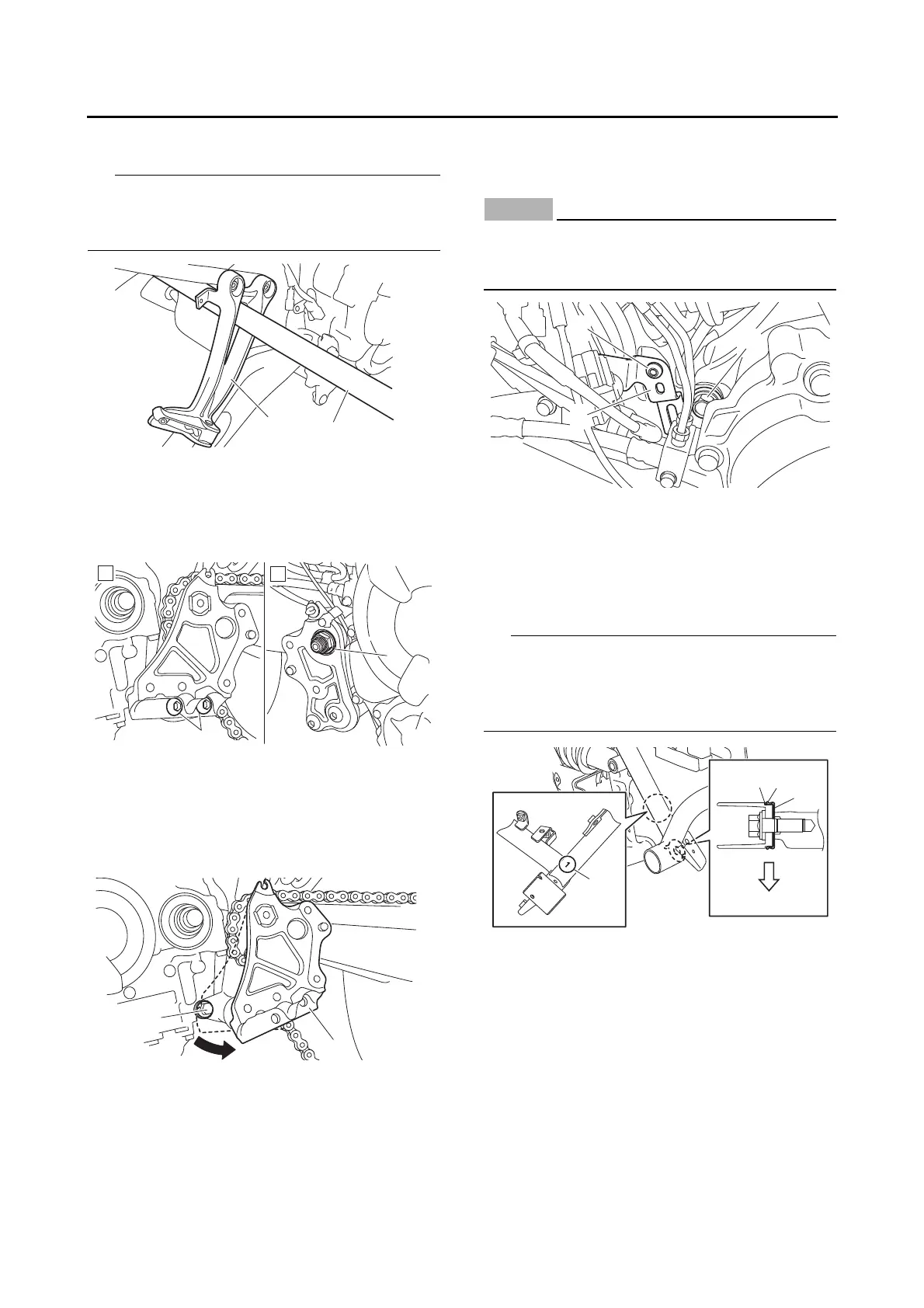

ENGINE REMOVAL
5-10
EAS30250
REMOVING THE ENGINE
TIP
Pass a suitable rod “1” through the holes in the
brackets of the passenger footrests “2” and se-
cure the rod to support the vehicle.
1. Remove:
• Engine mounting bolt (rear lower side) “1”
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Loosen the pivot shaft nut “2”, and then re-
move the footrest bracket bolts “3”.
b. Move the footrest bracket “4” rearward, and
then loosen the engine mounting bolt (rear
lower side).
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
2. Remove:
• Engine mounting bolt (rear upper side) “1”
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the rear brake hose joint bracket bolt
“2”.
b. Move the rear brake hose joint bracket “3”
slightly rearward, and then remove the en-
gine mounting bolt (rear upper side).
NOTICE
ECA21181
Do not move the rear brake hose joint brack-
et more than necessary. Otherwise, the
brake hoses could bend and break.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS30251
INSTALLING THE ENGINE
1. Install: (for models with a stamped “1” mark
on the frame)
• Plate “1”
TIP
• Install the plate only for frames that have a
stamped “1” mark at the location “a”.
• Fit the projections “b” on the plate into the slots
“c” in the frame.
2. Install:
• Engine “2”
3. Install:
• Engine mounting bolt (rear upper side) “3”
• Engine mounting nut (rear upper side) “4”
• Engine mounting bolt (rear lower side) “5”
• Engine mounting nut (rear lower side) “6”
• Engine mounting bolt (left front side) “7”
• Engine mounting bolt (right front side) “8”
• Engine mounting bolt (right upper side) “9”
• Engine bracket bolts (right) “10”
• Engine bracket (right) “11”
A. Left side
B. Right side
1
2
2
3
A
B
4
1
3
2
1
a
1
bc
FWD
