REAR WHEEL
4-30
EAS30156
REMOVING THE REAR WHEEL (DISC
BRAKE)
ECA21030
• Keep any type of magnets (including mag-
netic pick-up tools, magnetic screwdrivers,
etc.) away from the rear wheel sensor or
rear wheel sensor rotor; otherwise, the sen-
sor or rotor may be damaged, resulting in
improper performance of the ABS system.
• Do not drop the rear wheel sensor rotor or
subject it to shocks.
• If any solvent gets on the rear wheel sensor
rotor, wipe it off immediately.
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Place the vehicle on a suitable stand so that the
rear wheel is elevated.
2. Remove:
• Rear wheel sensor
• Rear brake caliper
ECA21040
• Do not depress the brake pedal when re-
moving the brake caliper.
• Be sure not to contact the sensor electrode
to any metal part when removing the rear
wheel sensor from the rear brake caliper
bracket.

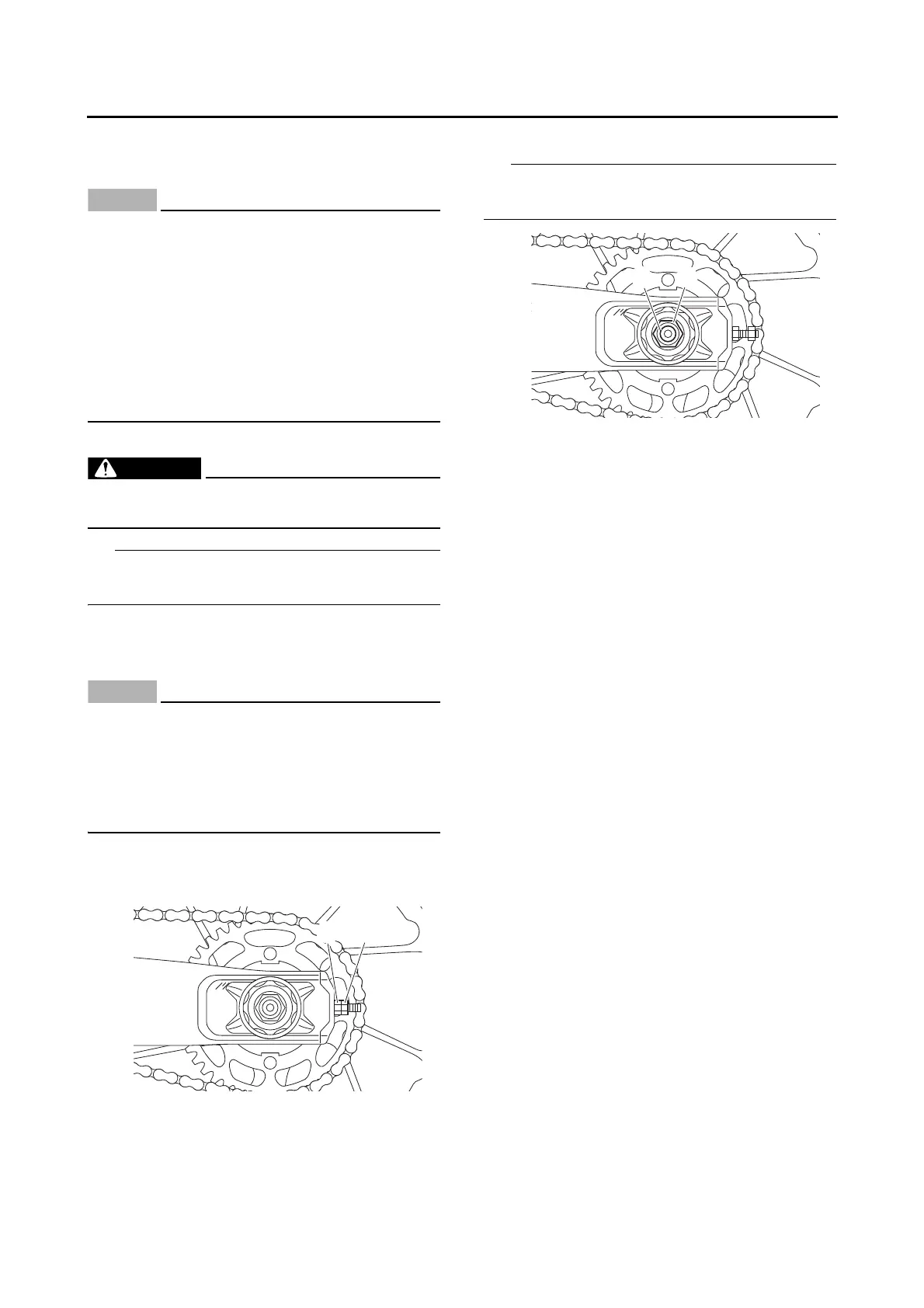

3. Loosen:
• Chain puller locknuts “1”
• Drive chain adjusting nuts “2”
4. Remove:
• Wheel axle nut “1”
• Washer
• Rear wheel axle “2”
• Drive chain slack adjusting plates
• Rear wheel
Push the rear wheel forward and remove the
drive chain from the rear wheel sprocket.
EAS30158
DISASSEMBLING THE REAR WHEEL
1. Remove:
• Oil seal
• Wheel bearings
Refer to “DISASSEMBLING THE FRONT
WHEEL” on page 4-20.
EAS30159
CHECKING THE REAR WHEEL
1. Check:
• Rear wheel axle
• Wheel bearings
• Oil seal
Refer to “CHECKING THE FRONT WHEEL”
on page 4-20.
2. Check:
•Tire
• Rear wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on page
3-16 and “CHECKING THE WHEELS” on
page 3-16.
3. Measure:
• Radial wheel runout
• Lateral wheel runout
Refer to “CHECKING THE FRONT WHEEL”
on page 4-20.
EAS30160
CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
• Rear wheel drive hub “1”
Cracks/damage → Replace.
• Rear wheel drive hub dampers “2”
Damage/wear → Replace.
To Next Page
