Yamaha 2014 MT-07 Service Manual

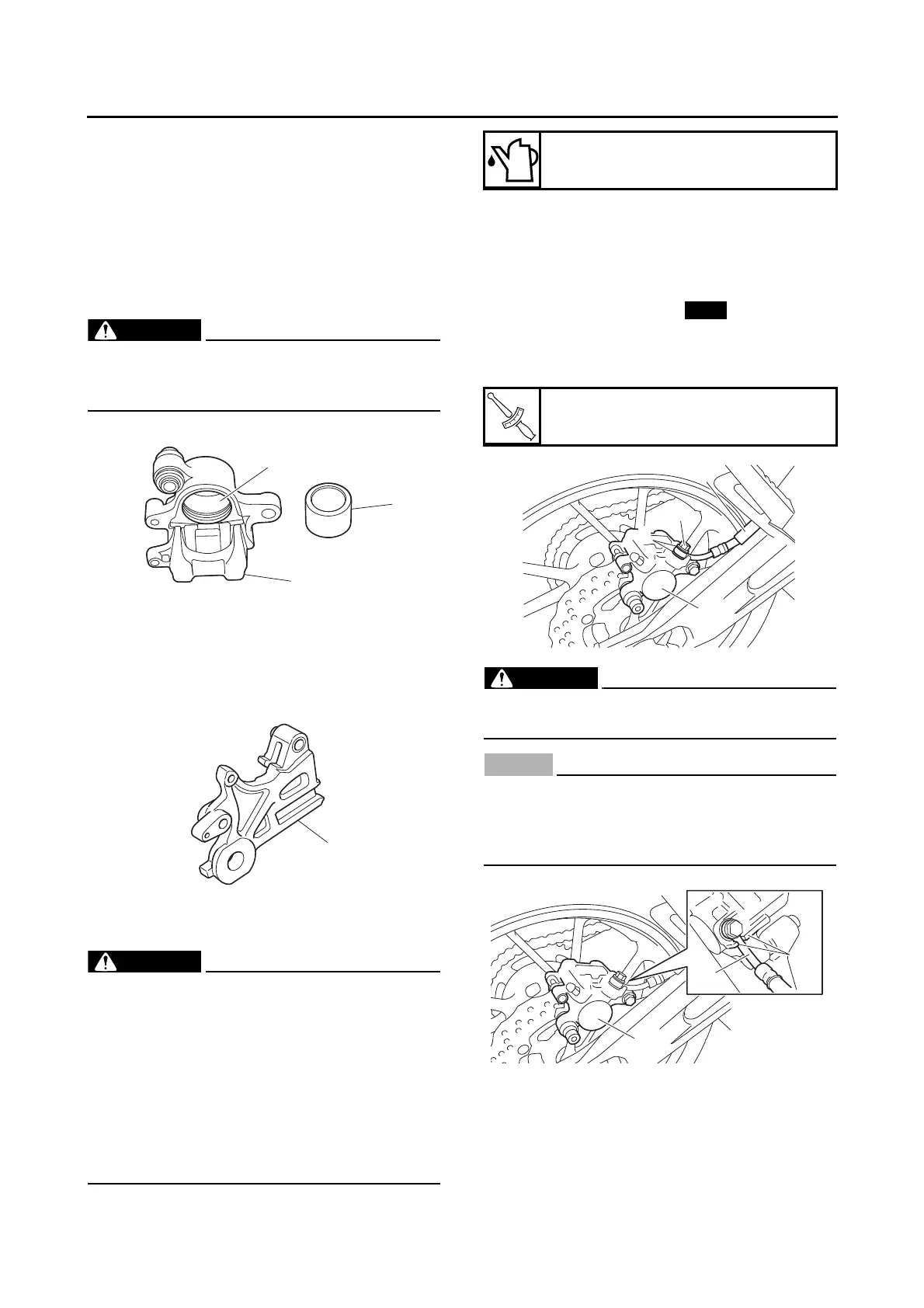

REAR BRAKE
4-58
• Brake caliper cylinder “2”
Scratches/wear → Replace the brake caliper
assembly.
• Brake caliper body “3”
Cracks/damage → Replace the brake caliper
assembly.
• Brake fluid delivery passages
(brake caliper body)
Obstruction → Blow out with compressed air.
WARNING
EWA17070
Whenever a brake caliper is disassembled,
replace the brake caliper piston dust seal
and brake caliper piston seal.
2. Check:
• Rear brake caliper bracket “1”
Cracks/damage → Replace.
Refer to “REAR WHEEL” on page 4-26.
EAS30189
ASSEMBLING THE REAR BRAKE CALIPER
WARNING
EWA17080
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents as they will cause the brake caliper
piston dust seal and brake caliper piston
seal to swell and distort.
• Whenever a brake caliper is disassembled,
replace the brake caliper piston dust seal
and brake caliper piston seal.
EAS30190
INSTALLING THE REAR BRAKE CALIPER
1. Install:
• Rear brake caliper “1”
(temporarily)
• Brake hose gaskets “2”
• Brake hose (hydraulic unit to rear brake cali-
per) “3”
• Rear brake hose union bolt “4”
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation.
NOTICE
ECA19080
When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” passes between the projections “b” on
the brake caliper.
2. Remove:
• Rear brake caliper
3. Install:
• Brake pad insulators
(onto the brake pads)
1
2
3
1
Specified brake fluid
DOT 4
T
R
.
.
Rear brake hose union bolt
30 Nm (3.0 m·kgf, 22 ft·lbf)
New
4
1
2
3
1
a
b
