Yamaha 2014 MT-07 Service Manual

TRANSMISSION
5-92
EAS20062
TRANSMISSION

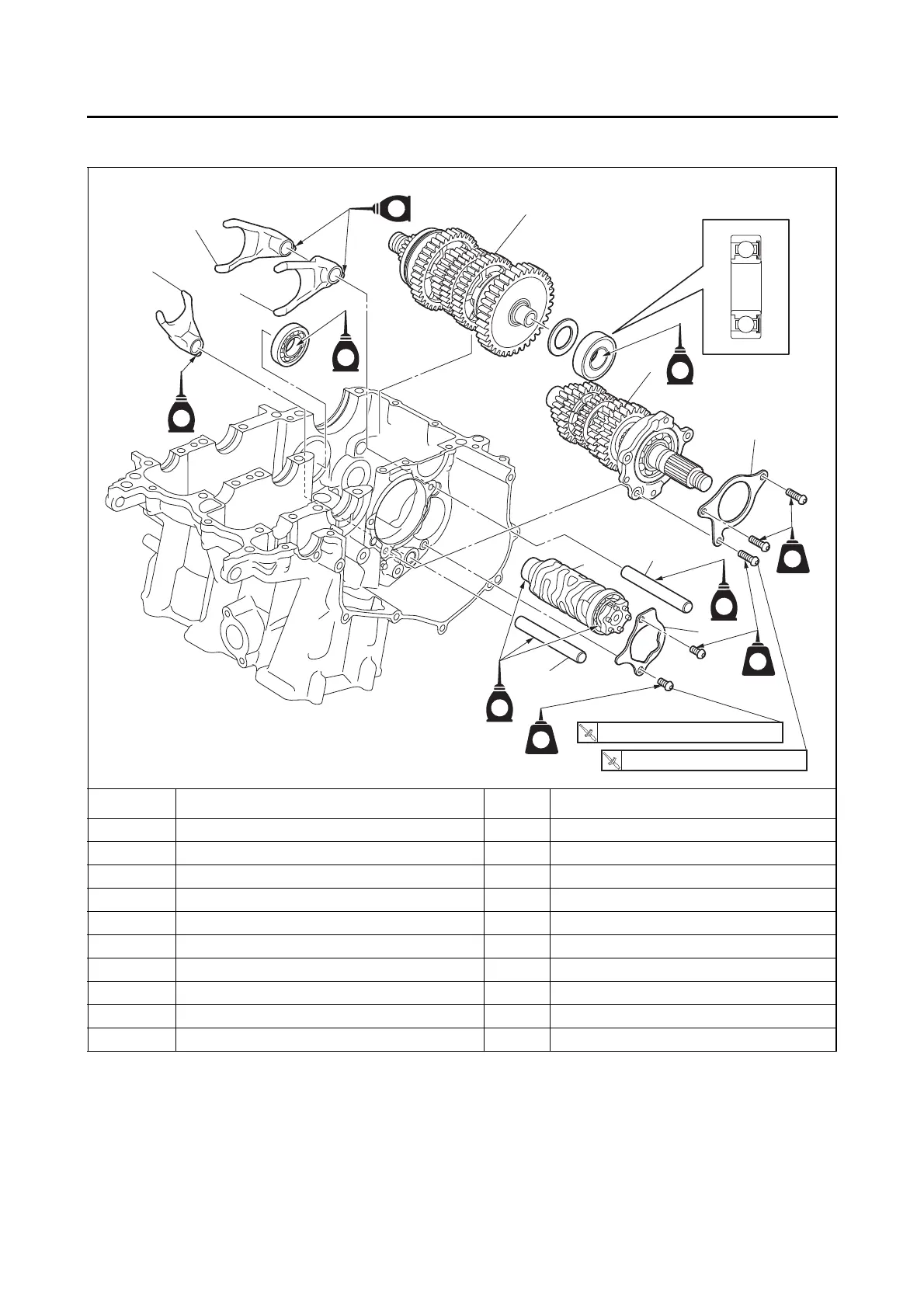

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Crankcase Refer to “CRANKCASE” on page 5-69.
1 Drive axle assembly 1
2 Shift drum retainer 1
3 Shift fork guide bar 2
4 Shift fork “L” 1
5 Shift fork “R” 1
6 Shift drum assembly 1
7 Shift fork “C” 1
8 Bearing retainer 1
9 Main axle assembly 1
LT
LT
E
LT
E
E
E
E
E
1
2
3
3
6
4
5
7
9
8
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R
.
12 Nm (1.2 m
•
kgf, 8.7 ft
•
Ibf)
T
.R
.

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
