Yamaha 2014 MT-07 Service Manual

SWINGARM
4-99
3. Check:
• Collar
Damage/scratches → Replace.
EAS31114

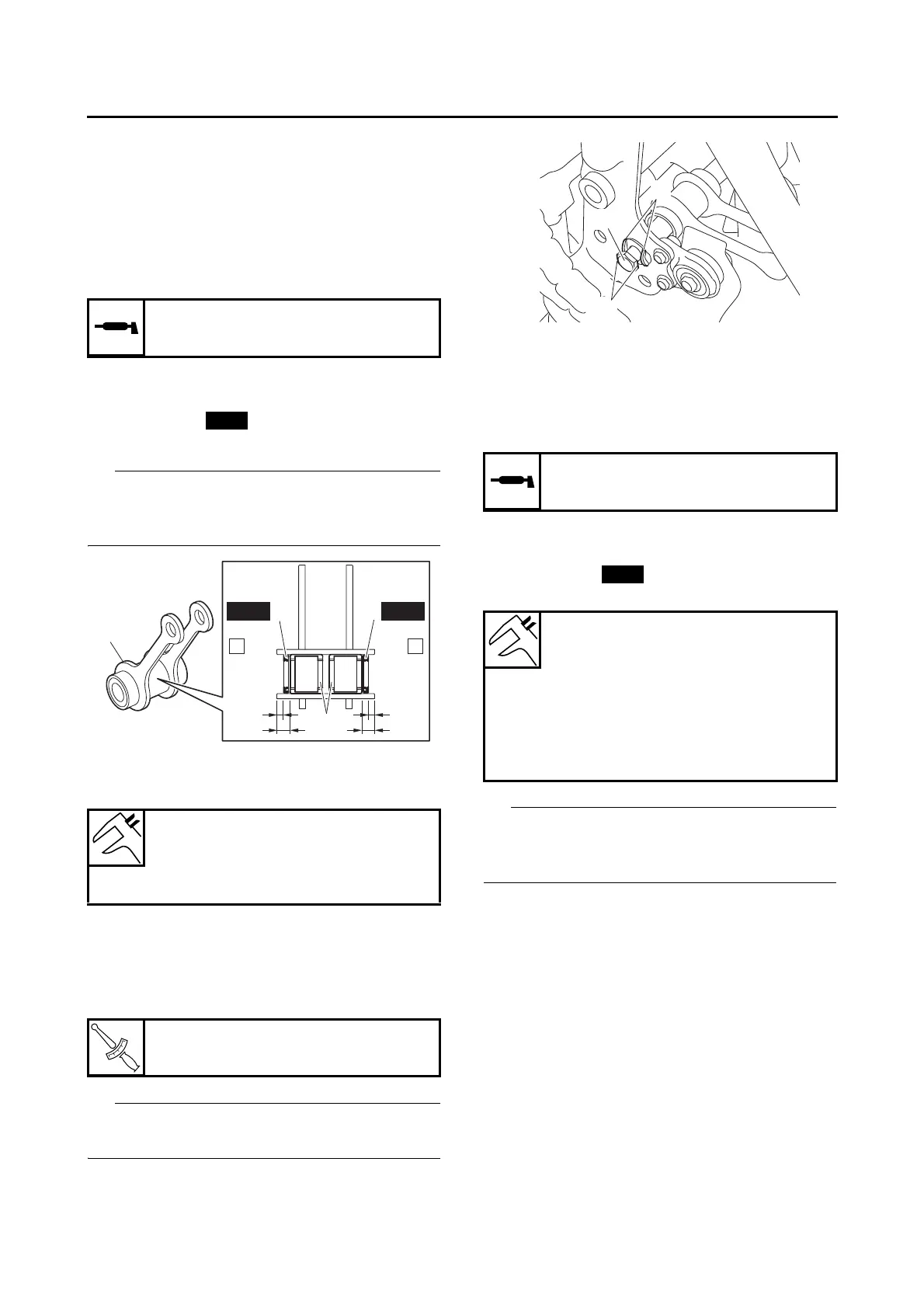

INSTALLING THE CONNECTING ARM
1. Lubricate:
• Spacers
• Bearings
2. Install:
• Bearings “1”
• Oil seals “2”
(to the connecting arm “3”)
TIP
When installing the oil seals to the connecting
arm, face the character stamp of the oil seals
outside.
3. Install:
• Spacer
• Connecting arm
• Connecting arm bolt “1”
• Connecting arm nut
TIP
Align two flat sides “a” of the connecting arm bolt
with the projections “b” on the frame.
EAS30228
INSTALLING THE SWINGARM
1. Lubricate:
• Spacers
• Pivot shaft
• Bearings
2. Install:
• Bearings “1”
• Oil seals “2”
(to the swingarm)
TIP
Install the oil seals to the swingarm so that they
are facing in the directions shown in the illustra-
tion.
Recommended lubricant
Lithium-soap-based grease
A. Left side
B. Right side
Installed depth “a”
3.5–4.5 mm (0.14–0.18 in)
Installed depth “b”
8.0–9.0 mm (0.31–0.35 in)
T
R
.
.
Connecting arm nut (frame side)
52 Nm (5.2 m·kgf, 38 ft·lbf)
New
2
1
b
a
A B
3
New
2
New
Recommended lubricant
Lithium-soap-based grease
Installed depth “a”
3.0 mm (0.12 in)
Installed depth “b”
1.0 mm (0.04 in)
Installed depth “c”
9.0 mm (0.35 in)
Installed depth “d”
15 mm (0.59 in)
b
a
1
New

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
