Yamaha 2014 MT-07 Service Manual

ELECTRIC STARTING SYSTEM
8-9
EAS30494

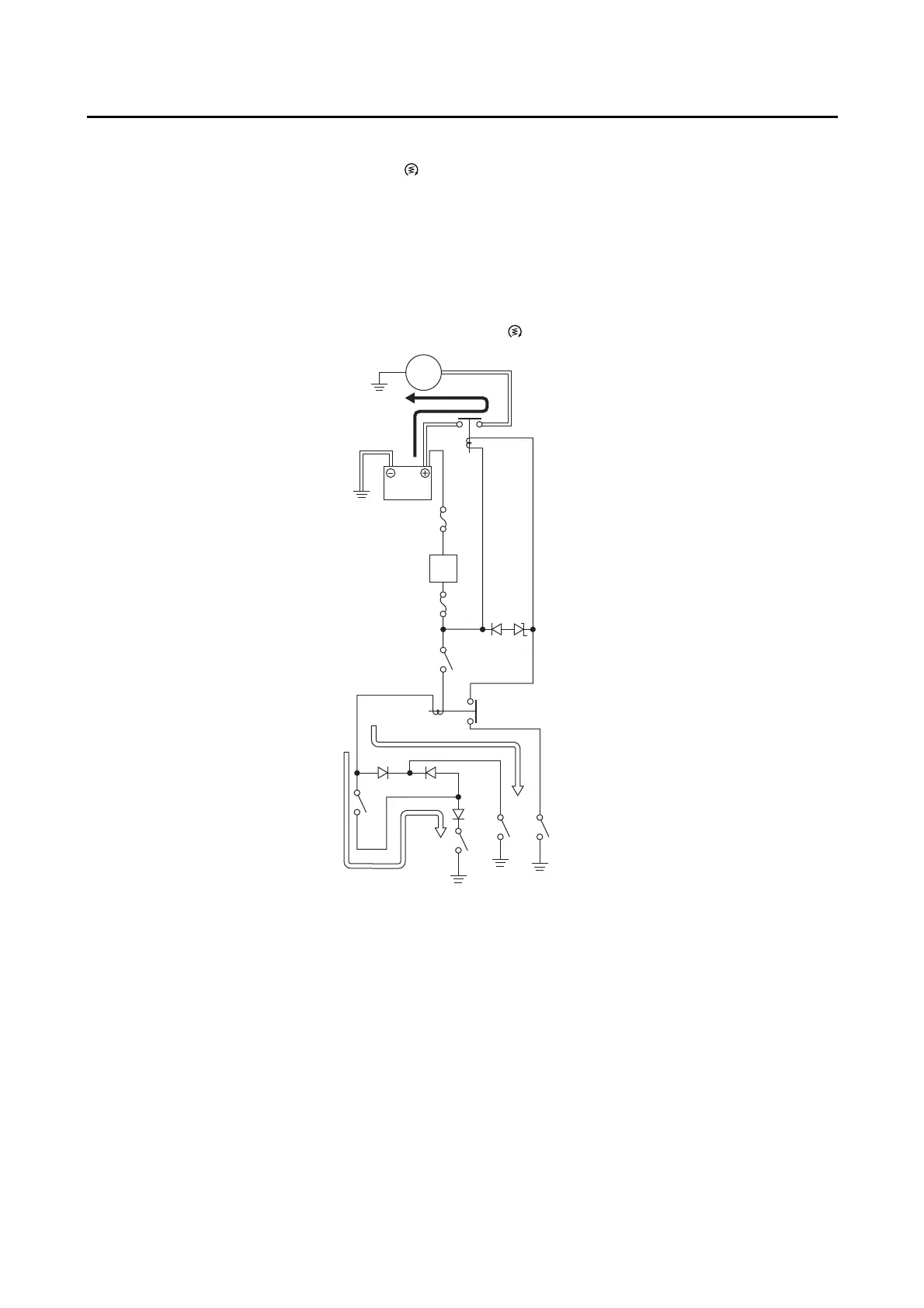

STARTING CIRCUIT CUT-OFF SYSTEM OPERATION
If the main switch is turned to “ON” and the “ ” side of the start/engine stop switch is pushed, the starter
motor can only operate if at least one of the following conditions is met:
• The transmission is in neutral (the neutral circuit of the gear position switch is closed).
• The clutch lever is pulled to the handlebar (the clutch switch is closed) and the sidestand is up (the
sidestand switch is closed).
The starting circuit cut-off relay prevents the starter motor from operating when neither of these condi-
tions has been met. In this instance, the starting circuit cut-off relay is open so current cannot reach the
starter motor. When at least one of the above conditions has been met, the starting circuit cut-off relay
is closed and the engine can be started by pressing the “ ” side of the start/engine stop switch.
12
1
11
4
66
6
6
a
b
8
6
9
7
5
2
3
10
10
a. WHEN THE TRANSMISSION IS IN
NEUTRAL
b. WHEN THE SIDESTAND IS UP AND THE
CLUTCH LEVER IS PULLED TO THE
HANDLEBAR
1. Battery
2. Main fuse
3. Main switch
4. Ignition fuse
5. Starting circuit cut-off relay
6. Relay unit (diode)
7. Clutch switch
8. Sidestand switch
9. Gear position switch
10.Start/engine stop switch
11.Starter relay
12. Starter motor

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
