ELECTRICAL COMPONENTS
8-137
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼

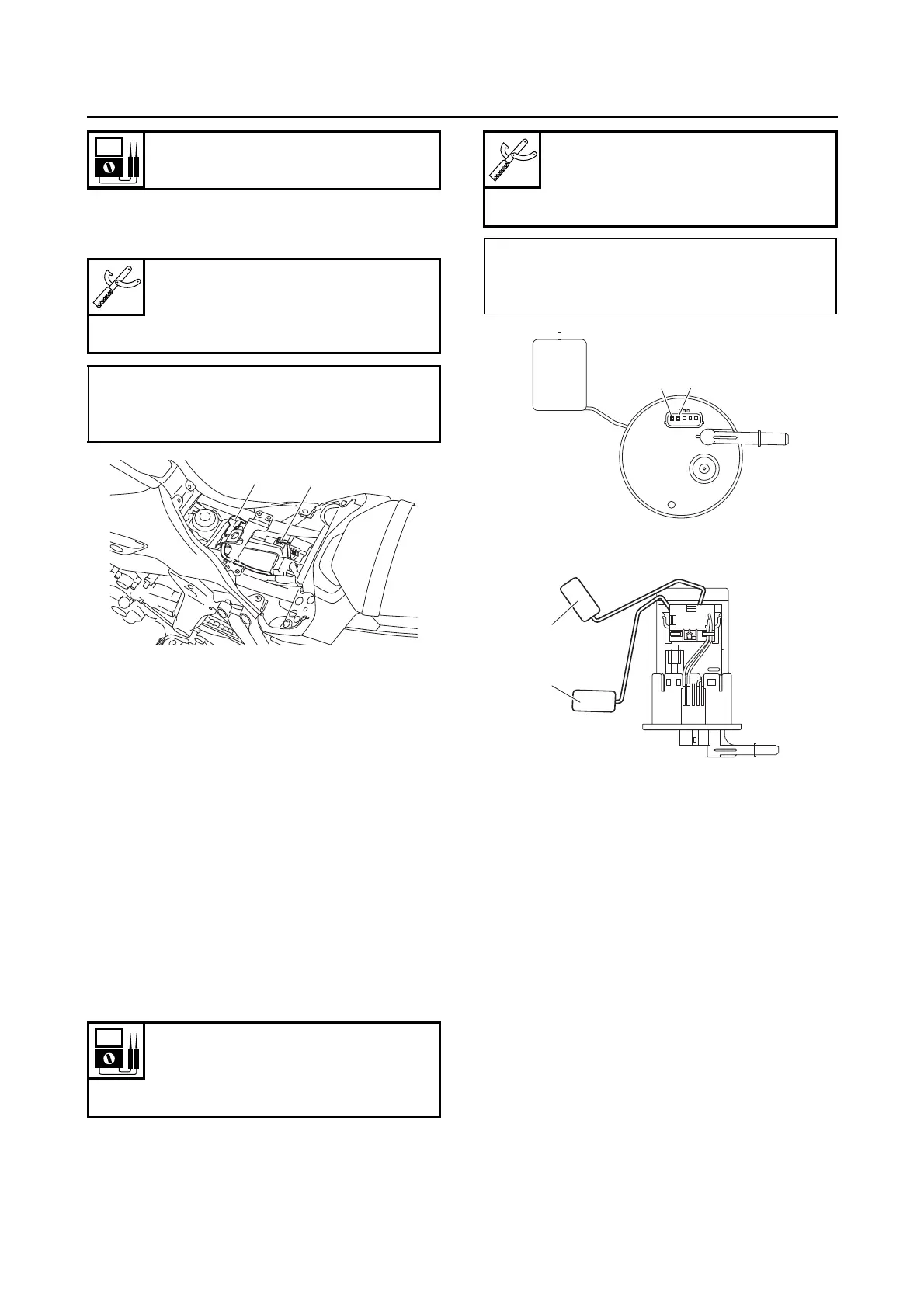

a. Connect the pocket tester (DC 20 V) to the
battery terminals as shown.
b. Start the engine and let it run at approximate-
ly 5000 r/min.
c. Measure the charging voltage.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS30573
CHECKING THE FUEL SENDER
1. Disconnect:
• Fuel pump coupler
(from the fuel pump)
2. Remove:
• Fuel tank
3. Remove:
• Fuel pump
(from the fuel tank)
4. Check:
• Fuel sender resistance
Out of specification → Replace the fuel pump
assembly.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Connect the pocket tester (Ω × 10/ × 100) to
the fuel sender terminals as shown.
b. Move the fuel sender float to minimum “3”
and maximum “4” level position.
c. Measure the fuel sender resistance.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS30938
CHECKING THE FUEL METER/FUEL LEVEL
WARNING LIGHT
This model is equipped with a self-diagnosis de-
vice for the fuel level detection circuit.
1. Check:
• Fuel meter/fuel level warning light “1”
(Turn the main switch to “ON”.)
Warning light comes on for a few seconds,
then goes off → Warning light is OK.
Warning light does not come on → Replace
the meter assembly.
Warning light flashes eight times, then goes
off for 3 seconds in a repeated cycle (mal-
function detected in fuel sender) → Replace
the fuel pump assembly.
Charging voltage
14 V at 5000 r/min
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Positive battery terminal “1”
• Negative tester probe
Negative battery terminal “2”
Sender unit resistance (full)
9.0–11.0 Ω
Sender unit resistance (empty)
213.0–219.0 Ω
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Fuel pump terminal “1”
• Negative tester probe
Fuel pump terminal “2”
To Next Page
